Plan Description


The neutral tones of the stucco facade and characteristic red tiled roof capture the Mediterranean style of this two-story home. An elegant entry speaks to the amenities that await inside. Upgraded ceiling treatments throughout the first floor lend a luxurious feel. The open layout is spacious and flows seamlessly. Outdoor living areas are accessed through sliding doors in the great room. The master suite boasts His and Hers amenities. On the second floor, a guest suite enjoys a private bath, and two additional bedrooms share a Jack-and-Jill bath. The loft offers an overhead view of the great room below.

Full Specs & Features


Dimension

Depth : 59' 8"

Height : 24'

Width : 67' 8"

Area

First Floor: 1899 sq/ft

Second Floor: 1152 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Bedroom Features

Formal Dining Room

Kitchen Features

Breakfast Nook

Kitchenette Wet Bar

Additional Room Features

Great Room Living Room

Hobby Rec Room Game Room

Open Floor Plan

Workshop

Outdoor Spaces

Courtyard

Rooms

3rd BR Closet:

31 sq/ft width 4' 6" x depth 7'

Bathroom 2:

68 sq/ft width 5' 6" x depth 12' 6"

Bathroom 3:

74 sq/ft width 6' 6" x depth 11' 6"

Bedroom 2:

198 sq/ft width 13' 10" x depth 14' 4"

Bedroom 2 Closet:

22 sq/ft width 4' 6" x depth 5'

Bedroom 3:

156 sq/ft width 13' x depth 12'

Bedroom 3 Closet:

22 sq/ft width 4' 6" x depth 5'

Bedroom 4:

171 sq/ft width 12' 11" x depth 13' 3"

Bedroom 4 Closet:

21 sq/ft width 3' x depth 7'

Breakfast Room:

119 sq/ft width 11' 2" x depth 10' 8"

Deck:

214 sq/ft width 11' x depth 19' 6"

Dining Room:

156 sq/ft width 11' 2" x depth 14'

Garage:

661 sq/ft width 28' 4" x depth 23' 4"

Gathering Room:

403 sq/ft width 19' 6" x depth 20' 8"

Hall Bathroom:

41 sq/ft width 5' 6" x depth 7' 6"

Kitchen:

156 sq/ft width 14' 8" x depth 10' 8"

Laundry Room:

46 sq/ft width 6' 4" x depth 7' 4"

Master Bathroom:

156 sq/ft width 12' x depth 13'

Master Bedroom:

239 sq/ft width 16' 4" x depth 14' 8"

Master Closet:

63 sq/ft width 7' x depth 9'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

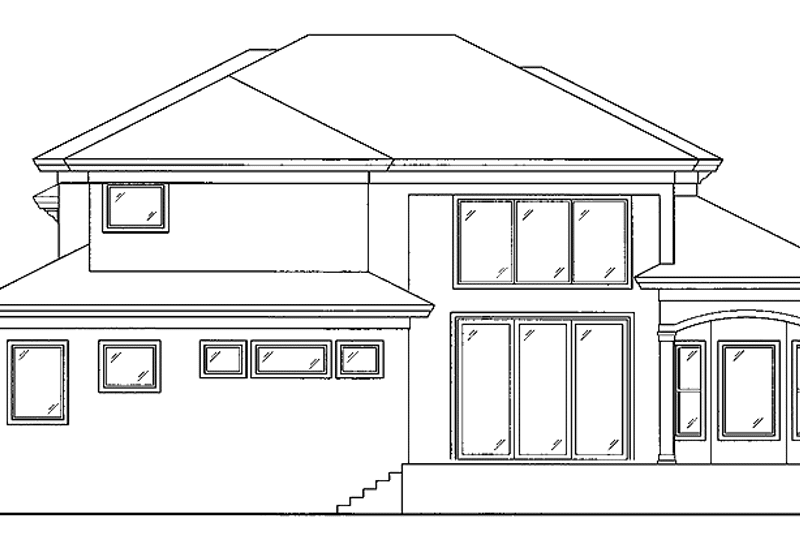

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

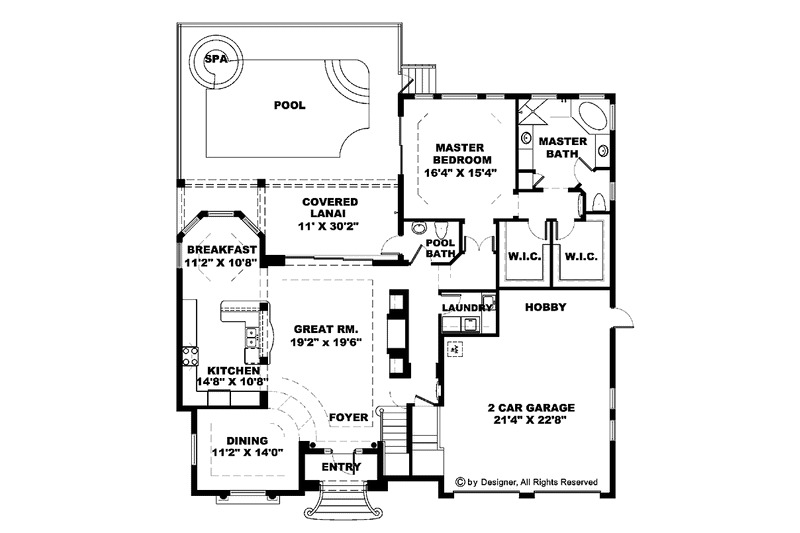

  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-800-447-0027

Plan Set

CAD Set:
$1020.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set:
$1020.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set:
$1020.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Additional Construction Sets:
$76.50
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$85.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
