PLAN 72-614

Photographs may show modified designs.

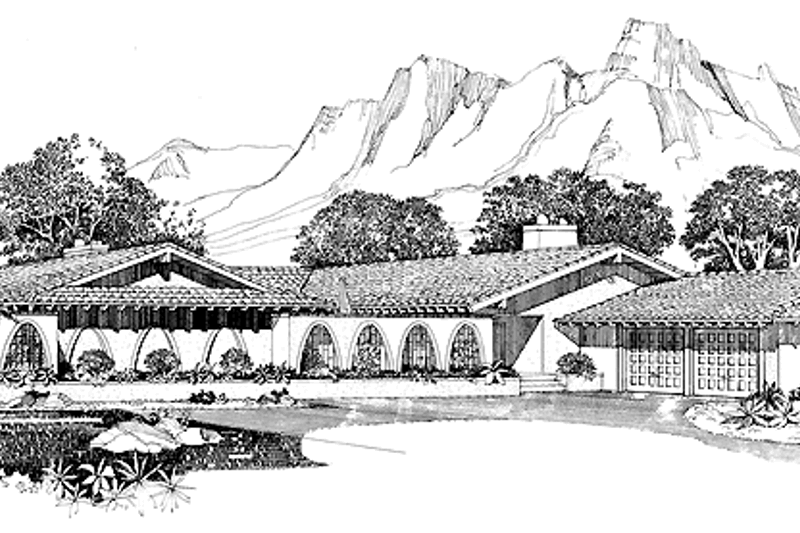

Dream House Plan - Mediterranean Exterior - Front Elevation Plan #72-614

Dream House Plan - Mediterranean Exterior - Rear Elevation Plan #72-614

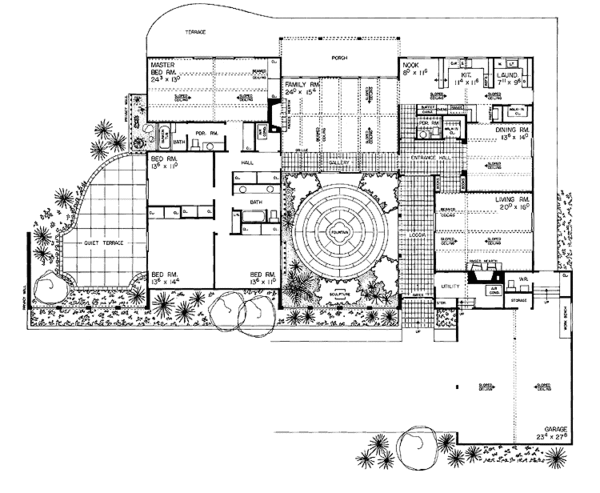

Dream House Plan - Mediterranean Floor Plan - Main Floor Plan #72-614

Jump to:
All (3)
Exterior (2)
Floor plans (1)

Get Personalized Help

Home > Style > Mediterranean

Key Specs

3056
sq ft

4
Beds

2
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?

Select Foundation Options

Select Framing Options

	Right-Reading Reverse	$165.75
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets$51.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Additional Use License	$420.75
	Allows you to build one more home for each additional license purchased.
	Audio Video Design	$127.50
	Receive an overlay sheet with suggested placement of audio and video components.
	Comprehensive Material List	$335.75
	A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
	Construction Guide	$33.15
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$127.50
	Receive an overlay sheet with suggested placement of lighting fixtures.
	Material List	$72.25
	A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
	Mirror Reversed Sets$0.00 Printed sets showing plan in reverse, text and dimensions will be backwards.
	Unlimited Use License	$845.75
	Allows you to build this home as many times as you want.

Subtotal

NOW $1154.54

You save $203.74 (15% savings)

Sale ends soon!

Also order by phone: 1-800-447-0027

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-447-0027

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBSUMMER

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 72-614

Home > Style > Mediterranean

Key Specs

3056
sq ft

4
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

This one-story home is spiced with authentic Spanish flavor. Striking a note of distinction, the arched privacy walls provide a fine backdrop for the long, raised planter. The low-pitched roof features tile and has a wide overhang with exposed rafter tails. The interior is thoughtfully planned. The welcoming family room is flanked by the sleeping wing and the living wing. Indoor-outdoor relationships are outstanding, further enhancing the plan. The spacious interior court adds a sense of peace to the design. The sleeping facilities include three family bedrooms and a master suite located to the rear for privacy.

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 80'

Height : 16'

Width : 112' 8"

Area

First Floor: 3056 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 4:12

Roof Framing : Conventional

Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Wood - 2x4

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Main Floor Master Bedroom

Split Bedrooms

Kitchen Features

Breakfast Nook

Additional Room Features

Family Room Keeping Room

Main Floor Laundry

Garage Features

Side Entry Garage

Outdoor Spaces

Courtyard

Covered Rear Porch

Rooms

3rd BR Closet:

13 sq/ft width 2' 1" x depth 6' 7"

Bathroom 2:

71 sq/ft width 7' 6" x depth 9' 6"

Bedroom 2:

148 sq/ft width 11' x depth 13' 6"

Bedroom 2 Closet:

13 sq/ft width 2' 1" x depth 6' 7"

Bedroom 3:

193 sq/ft width 13' 6" x depth 14' 4"

Bedroom 3 Closet:

13 sq/ft width 2' 1" x depth 6' 7"

Bedroom 4:

148 sq/ft width 11' x depth 13' 6"

Bedroom 4 Closet:

16 sq/ft width 2' 1" x depth 8'

Breakfast Room:

92 sq/ft width 8' x depth 11' 6"

Dining Room:

189 sq/ft width 13' 6" x depth 14'

Garage:

647 sq/ft width 23' 5" x depth 27' 8"

Garage Storage:

16 sq/ft width 3' x depth 5' 7"

Gathering Room:

367 sq/ft width 15' 4" x depth 24'

Hall:

92 sq/ft width 7' 1" x depth 13'

Hall Closet:

34 sq/ft width 4' 6" x depth 7' 8"

Kitchen:

130 sq/ft width 11' 4" x depth 11' 6"

Laundry Room:

48 sq/ft width 6' 1" x depth 7' 11"

Living Room:

320 sq/ft width 16' x depth 20'

Master Bathroom:

77 sq/ft width 5' 9" x depth 13' 6"

Master Bedroom:

315 sq/ft width 13' x depth 24' 3"

Master Closet:

22 sq/ft width 2' 9" x depth 8' 3"

Parlor:

96 sq/ft width 4' x depth 24'

Porch - Rear:

80 sq/ft width 8' x depth 10'

Powder Room:

23 sq/ft width 4' 8" x depth 5' 1"

Slab Foundation:

9013 sq/ft width 80' x depth 112' 8"

Utility Room:

102 sq/ft width 7' 4" x depth 14'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: This page shows all necessary notations and dimensions including support columns, walls, and excavated/unexcavated areas.
Exterior Elevations: Views of the home from all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, etc.
Cross Section: A slice of the home from roof to foundation, showing important details like stairs and wall construction.
Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
Construction Notes and Details: Shows the builder how things come together, like walls, the chimney, insulation, and more.

Questions? Call 1-800-447-0027

Plan Set

PDF Set:
$1154.54

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$1272.35

5 printed plan sets mailed to you.

8 Copy Set:
$1390.16

8 printed plan sets mailed to you.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Basement:
$233.75

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace:
$233.75

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Daylight Basement:
$233.75

Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x4:
$0.00

Wood 2x4 Exterior Walls

Additional Options

Right-Reading Reverse:
$165.75

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$51.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License:
$420.75

Allows you to build one more home for each additional license purchased.

Audio Video Design:
$127.50

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$335.75

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$127.50

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List:
$72.25

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets:
$0.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unlimited Use License:
$845.75

Allows you to build this home as many times as you want.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
