Key Specs


3056
sq ft

5
Beds

3.5
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This charming and cozy plan is ideal for a first time buyer. A large open floor plan with a spacious kitchen welcomes you as you enter through the front door and there are roomy bedrooms with over-sized closets throughout. The basement has a media/family room, as well as, a big laundry room.

Floor Plans

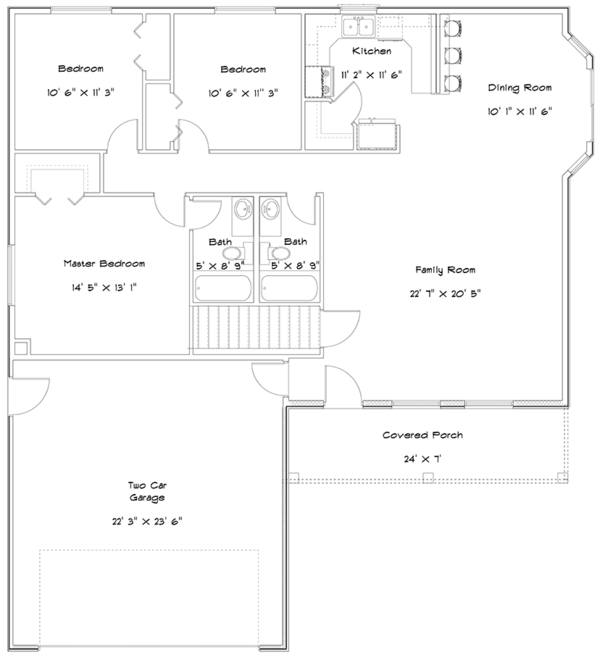

Floor Plan - Main Floor Plan
Ranch Floor Plan - Main Floor Plan Plan #1060-16

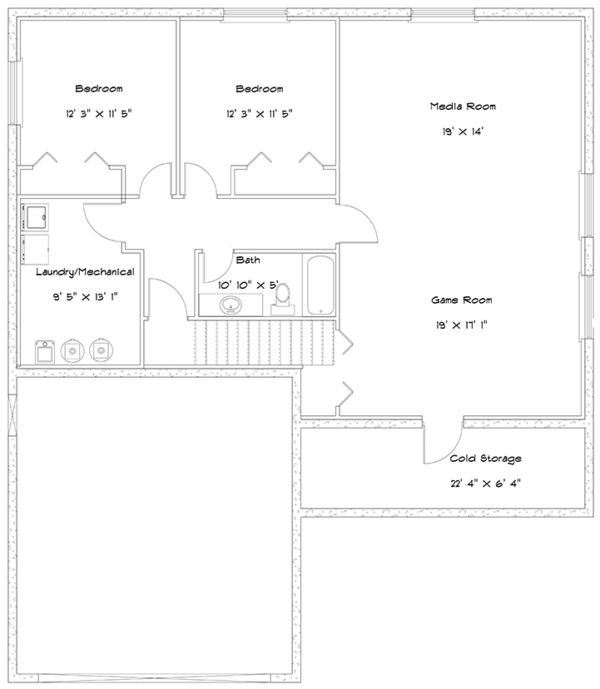

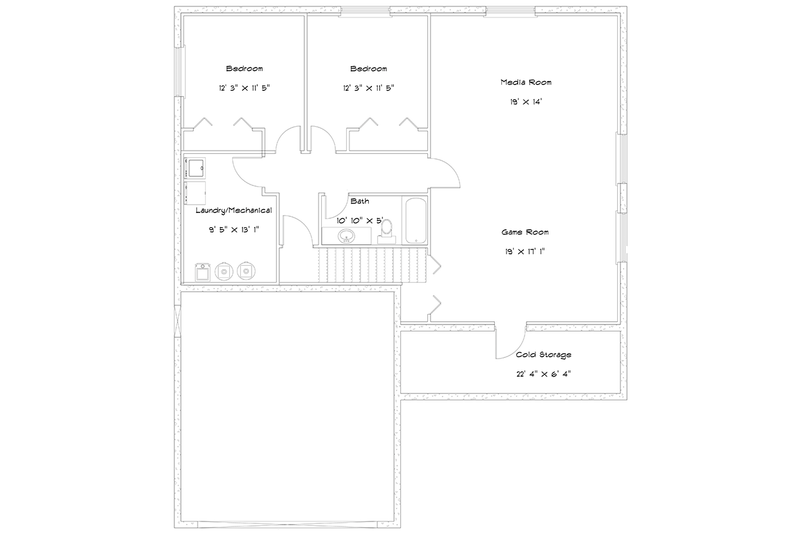

Floor Plan - Lower Floor Plan
Ranch Floor Plan - Lower Floor Plan Plan #1060-16
Floor Plan - Other Floor Plan
Ranch Floor Plan - Other Floor Plan Plan #1060-16

Full Specs & Features


Dimension
Depth : 53'
Height : 17' 10"
Width : 46'
Area
Basement Living: 1594 sq/ft height 8'
First Floor: 1462 sq/ft height 8'
Garage: 555 sq/ft
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Hobby Rec Room Game Room
Media Room
Storage Area
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Rooms

Bath 2:

44 sq/ft width 5' x depth 8' 9"

Bath 3:

54 sq/ft width 10' 10" x depth 5'

Bedroom 2:

118 sq/ft width 10' 6" x depth 11' 3"

Bedroom 3:

118 sq/ft width 10' 6" x depth 11' 3"

Bedroom 4:

140 sq/ft width 12' 3" x depth 11' 5"

Bedroom 5:

140 sq/ft width 12' 3" x depth 11' 5"

Cold Storage:

145 sq/ft width 22' 4" x depth 6' 4"

Covered Front Porch:

141 sq/ft width 24' x depth 7'

Dining Room:

116 sq/ft width 10' 1" x depth 11' 6"

Family Room:

461 sq/ft width 22' 7" x depth 20' 5"

Game Room:

325 sq/ft width 17' x depth 17' 1"

Garage:

555 sq/ft width 22' 3" x depth 23' 6"

Kitchen:

128 sq/ft width 11' 2" x depth 11' 6"

Laundry/ Mechanical:

123 sq/ft width 9' 5" x depth 13' 1"

Master Bath:

44 sq/ft width 5' x depth 8' 9"

Master Bedroom:

189 sq/ft width 14' 5" x depth 13' 1"

Media Room:

266 sq/ft width 19' x depth 14'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

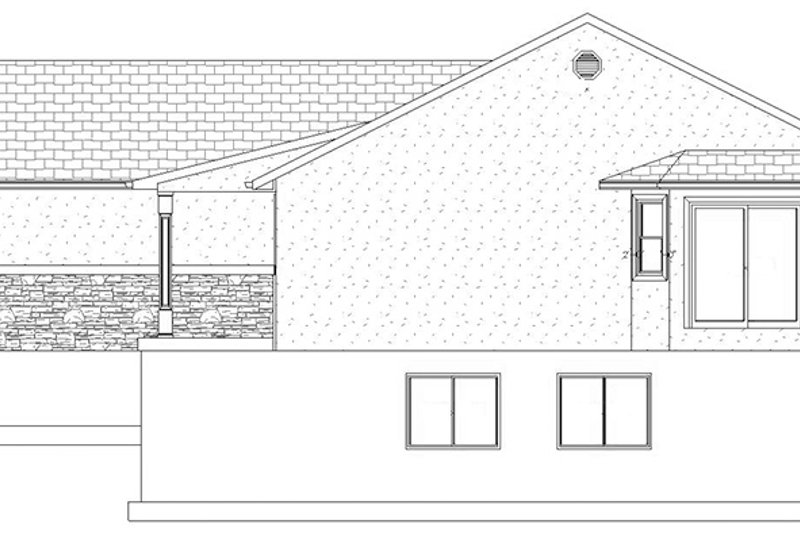

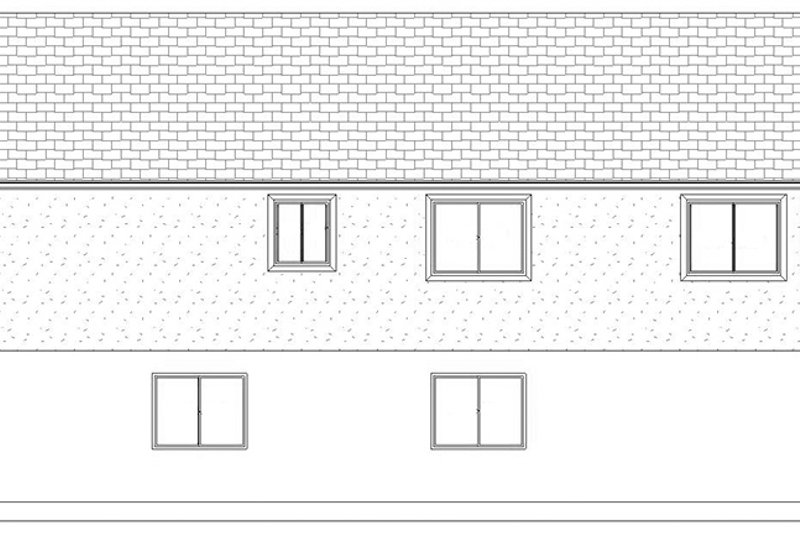

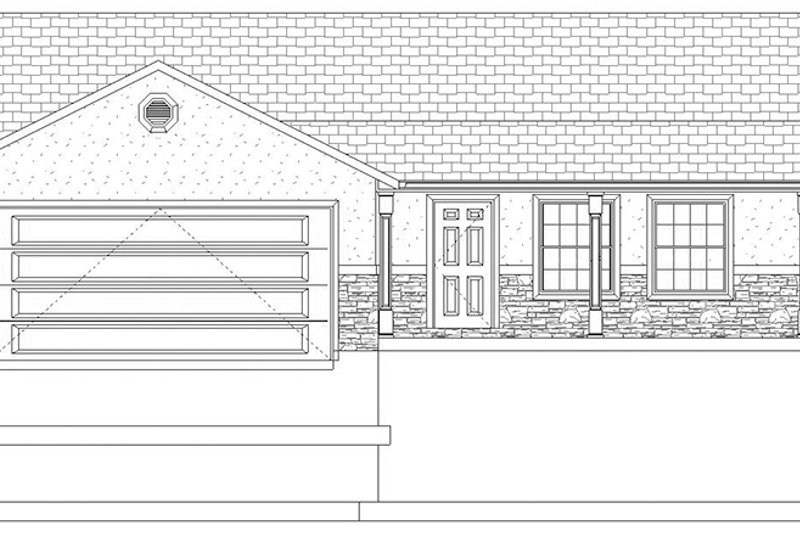

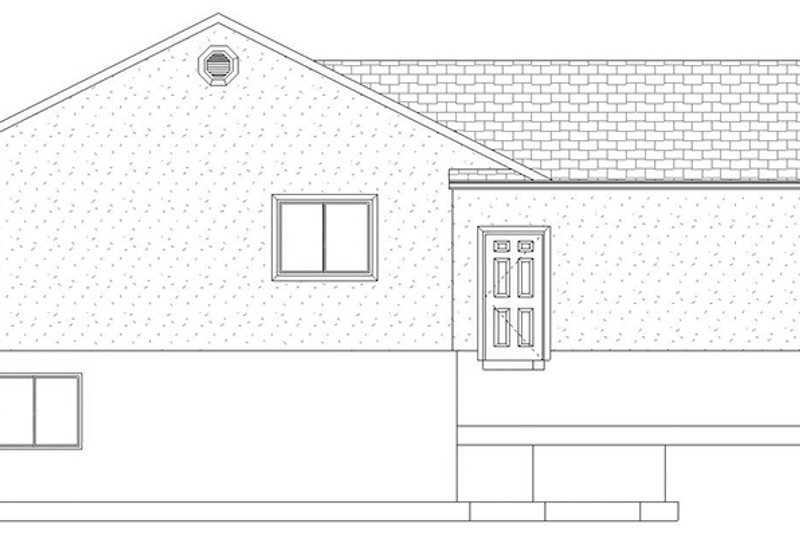

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
