PLAN #928-31

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

Nautical appeal defines this contemporary Visbeen Associates, Inc. lakeshore retreat designed to make the most of a narrow lot. Just 22 feet wide, the three-story design is packed with upper-level spaces that maximize the view, including a full luxury kitchen, dining room, guest room, living room, and rounded outdoor deck overlooking the water. A mid-level living area includes a master bedroom with private deck, guest room, den, home management center, and laundry room. A light-filled studio occupies the lowest level.

Floor Plans

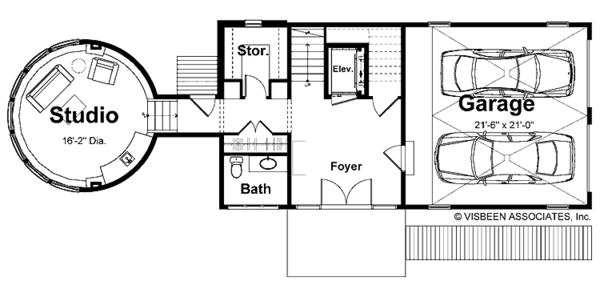

Floor Plan - Lower Floor Plan
Contemporary Floor Plan - Lower Floor Plan Plan #928-31

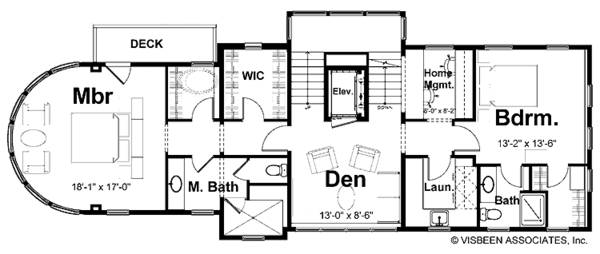

Floor Plan - Main Floor Plan
Contemporary Floor Plan - Main Floor Plan Plan #928-31

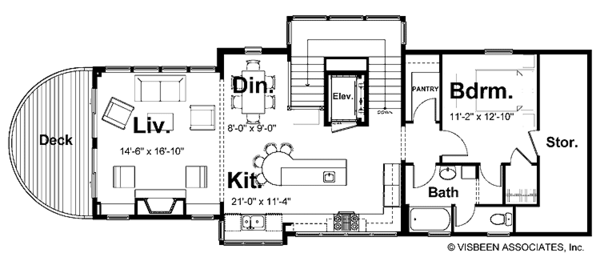

Floor Plan - Upper Floor Plan
Contemporary Floor Plan - Upper Floor Plan Plan #928-31
Floor Plan - Other Floor Plan
Contemporary Floor Plan - Other Floor Plan Plan #928-31

Full Specs & Features

Dimension Depth : 69'
Height : 40' 8"
Width : 22'
Area Lower Floor : 661 sq/ft
Main Floor : 1441 sq/ft
Upper Floor : 1004 sq/ft
Bedroom Features Guest Suite
Split Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Additional Room Features Mud Room
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Outdoor Spaces Courtyard
Covered Rear Porch
More Wheelchair Adaptable
Bedroom 2 177 sq/ft width 13' 2" x depth 13' 6"
Bedroom 3 143 sq/ft width 11' 2" x depth 12' 10"
Den 110 sq/ft width 13' x depth 8' 6"
Dining Room 72 sq/ft width 8' x depth 9'
Garage 451 sq/ft width 21' 6" x depth 21'
Kitchen 237 sq/ft width 21' x depth 11' 4"
Living Room 1927 sq/ft width 114' 6" x depth 16' 10"
Master Bedroom 307 sq/ft width 18' 1" x depth 17'

What's Included In This Plan Set

Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in some areas of Michigan requires special permission from the Architect.

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

» See important information before purchasing.
Plan Set
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Daylight Basement:
Ideal for sloping lot, lower level of home partially underground.
Wood 2x6:
Wood 2x6
Additional Options
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
