PLAN #17-2721

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

Invite the family to your house for the holidays in this impressive split bedroom home. Enticing French doors open to your private study. A comfortable great room displays a distinctive fireplace that is shared with the kitchen. You can utilize the side screened porch as a convenient grilling porch. Slip off for the evening to your master suite with a sitting room that opens to the rear covered deck. On the upper floor, the children's' room have spacious closets, and you have the opportunity for a home office and game room with the ample bonus and optional rooms available.

Floor Plans

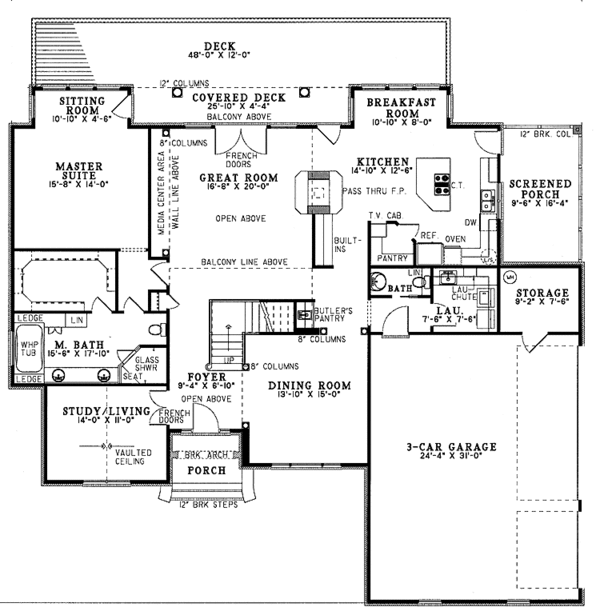

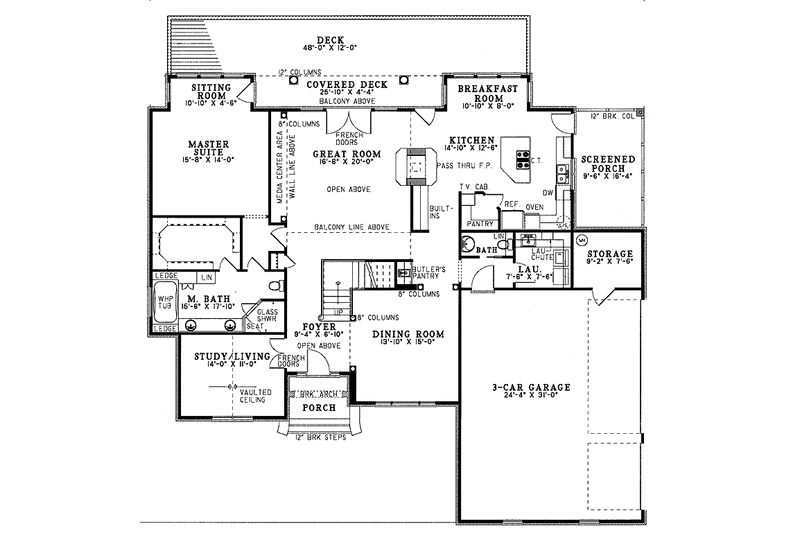

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #17-2721

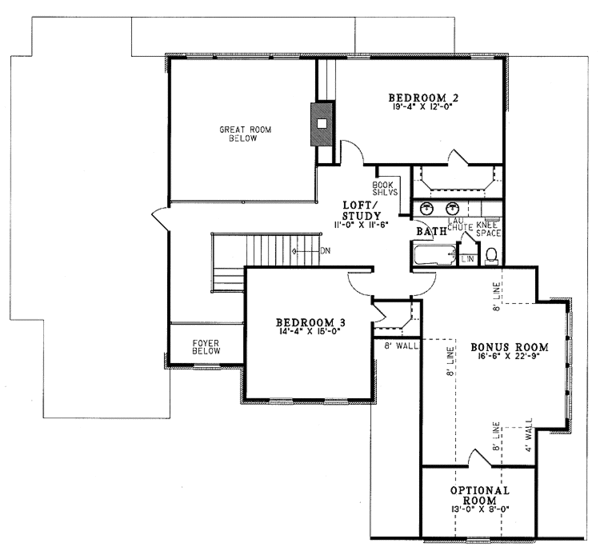

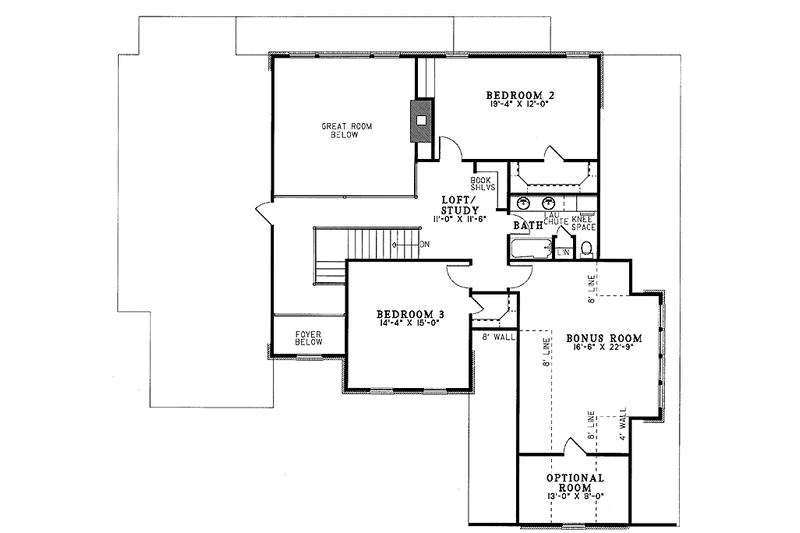

Floor Plan - Upper Floor Plan
Traditional Floor Plan - Upper Floor Plan Plan #17-2721

Full Specs & Features

Dimension Depth : 60' 4"
Width : 66' 8"
Area Bonus : 485 sq/ft
Main Floor : 2107 sq/ft
Upper Floor : 1001 sq/ft
Bedroom Features Split Bedrooms
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features Breakfast Nook
Additional Room Features Great Room Living Room
Garage Features Side Entry Garage
Outdoor Spaces Covered Front Porch
Covered Rear Porch
Screened Porch Sunroom
Bedroom 2 231 sq/ft width 12' x depth 19' 4"
Bedroom 3 214 sq/ft width 15' x depth 14' 4"
Bonus Room - Finished 375 sq/ft width 22' 9" x depth 16' 6"
Breakfast Room 86 sq/ft width 8' x depth 10' 10"
Deck 111 sq/ft width 4' 4" x depth 25' 10"
Dining Room 207 sq/ft width 15' x depth 13' 10"
Foyer 63 sq/ft width 6' 10" x depth 9' 4"
Gathering Room 333 sq/ft width 20' x depth 16' 8"
Kitchen 185 sq/ft width 12' 6" x depth 14' 10"
Master Bathroom 276 sq/ft width 17' 10" x depth 15' 6"
Master Bedroom 219 sq/ft width 14' x depth 15' 8"
Porch - Right 155 sq/ft width 16' 4" x depth 9' 6"
Storage 68 sq/ft width 7' 6" x depth 9' 2"
Study 126 sq/ft width 11' 6" x depth 11'
Wash Room 56 sq/ft width 7' 6" x depth 7' 6"

What's Included In This Plan Set

Nelson Design Group

  • Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
  • Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
  • Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
  • Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
