PLAN 48-480
3119
sq ft
3
Beds
2.5
Baths
1
Floors
3
Garages
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
This floor plan is 3119 sq ft and has 3 bedrooms and 2.5 bathrooms.
Floor Plans

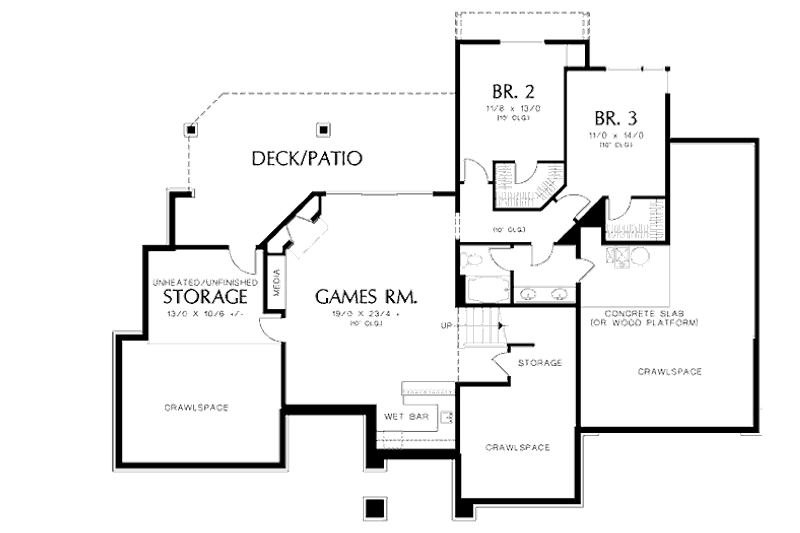

Floor Plan - Lower Floor

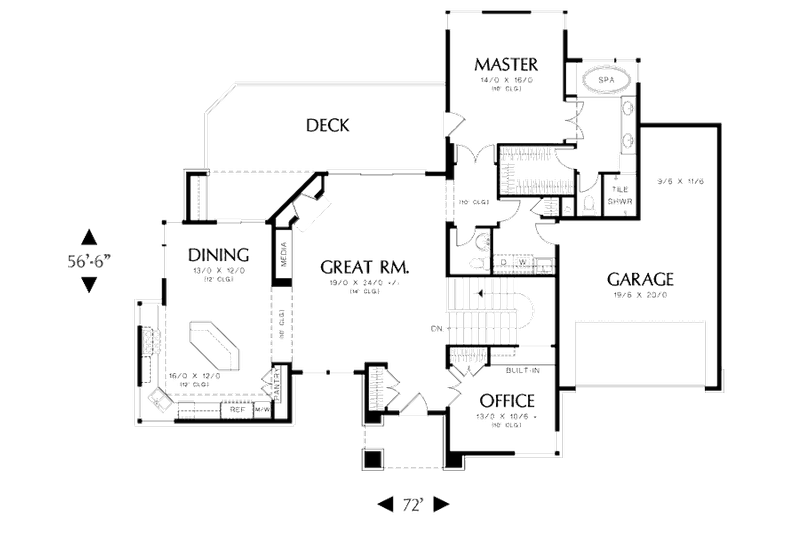

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 56' 6"
Height : 23' 4"
Width : 72'
Area
Basement Living: 1265 sq/ft height 10'
First Floor: 1832 sq/ft
Garage: 540 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Lower Ceiling : 10'
Main Ceiling : 10'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Composition
Exterior Wall Framing
Exterior Wall Finish : Shingle/Stone
Framing : 2"x6"
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Storage Area
Garage Features
Front Entry Garage
Outdoor Spaces
Grill Deck Sundeck
Rooms
Bedroom 2:
width 11' 8" x depth 13'
Bedroom 3:
width 11' x depth 14'
Dining Room:
width 13' x depth 12'
Game Room:
width 19' x depth 23' 4"
Garage:
540 sq/ft width 19' 6" x depth 20'
Great Room:
width 19' x depth 24'
Kitchen:
width 16' x depth 12'
Master Bedroom:
width 14' x depth 16'
Master Closet:
width 9' x depth 6'
Office:
width 13' x depth 10' 6"
Storage:
width 13' x depth 10' 6"
