Key Specs
3161
sq ft
3
Beds
3
Baths
2
Floors
2
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 929-857
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 58' 3"
Height : 29' 3"
Width : 85' 4"
Area
Bonus: 450 sq/ft height 10'

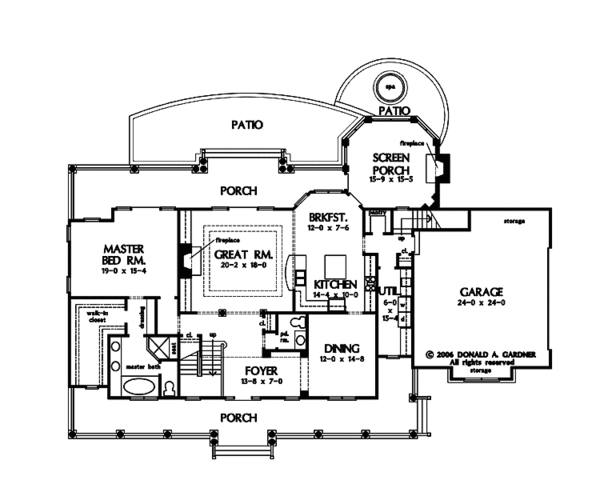

First Floor: 2046 sq/ft height 10'
Garage: 672 sq/ft height 10'
Porch: 1160 sq/ft

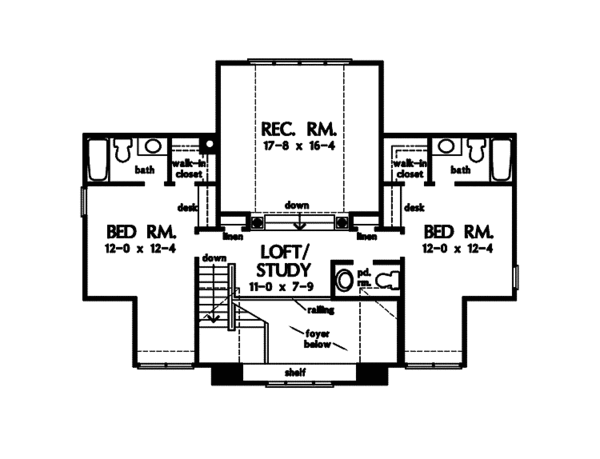

Second Floor: 1115 sq/ft height 10'
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Great Room Living Room
Loft
Sunroom
Unfinished Future Space
Outdoor Spaces
Balcony
Courtyard
Covered Front Porch
Covered Rear Porch
Screened Porch
Rooms
Bedroom 2:
147 sq/ft width 12' x depth 12' 4"
Bedroom 3:
147 sq/ft width 12' x depth 12' 4"

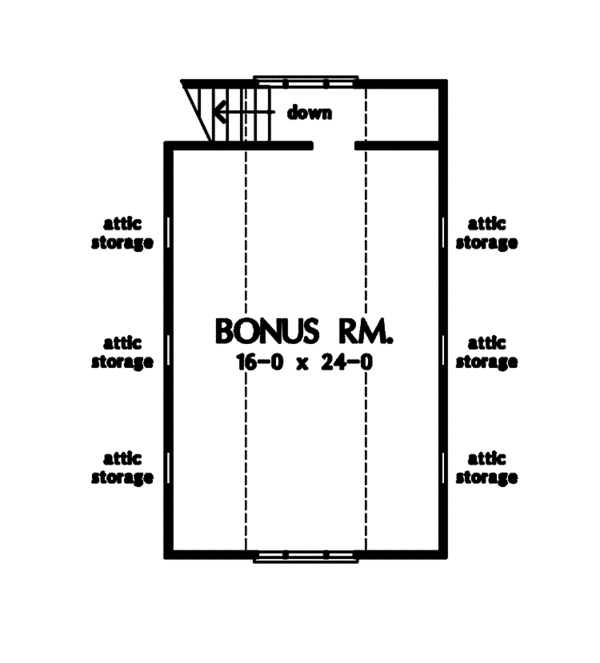

Bonus Room - Finished:
384 sq/ft width 16' x depth 24'
Dining Room:
176 sq/ft width 12' x depth 14' 8"
Foyer:
95 sq/ft width 13' 8" x depth 7'
Garage:
576 sq/ft width 24' x depth 24'
Great Room:
363 sq/ft width 20' 2" x depth 18'
Kitchen:
143 sq/ft width 14' 4" x depth 10'
Loft:
85 sq/ft width 11' x depth 7' 9"
Master Bedroom:
291 sq/ft width 19' x depth 15' 4"
Porch - Screened:
242 sq/ft width 15' 9" x depth 15' 5"
Recreation Room:
288 sq/ft width 17' 8" x depth 16' 4"
Utility Room:
91 sq/ft width 6' x depth 15' 4"
What's Included In This Plan Set
This designer charges $49.00 to review plan changes and prepare an estimate for your modifications.
This fee can be applied to your plan modifications once you move forward with the service. Please call if you would like to order a Plan Modification quote.
Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.
- Cover Sheet - A rendering of the front exterior of the house.
- Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
- Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
- Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
- Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
- Door and window schedules - Sizes, quantities and descriptions of all doors and windows shown on the plan.
- Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
- Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
- Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
- Each plan is designed to be consistent with CABO One and Two Family Dwelling Code or the International Residential Code in effect at the time the plan was created. Modifications may be necessary to meet applicable building codes, ordinances, local climatic, and geographical design criteria. Consult a builder, architect or other construction professional as necessary. Manufacturer instructions should be followed for all materials, appliances, and systems. Heating/air conditioning layouts, plumbing pipe layouts, and electrical wiring layouts are not included. Consult a local mechanical contractor for systems suitable for local climate conditions.
Plan Set
$1875.00
$3275.00
$1675.00
Foundation
$0.00
$450.00
$450.00
Framing
$0.00
$450.00
Additional Options
$260.00
$100.00
$39.00
$325.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
