PLAN #417-636

Key Specs


3183
sq ft

3
Beds

4
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Spanish and Mediterranean influences emanate from both the facade and the outdoor living spaces in this home. An arch motif echoes throughout the house on windows and doorways. Decorative ceilings grace the master bedroom, living room, and dining room. A breathtaking covered patio featuring an outdoor kitchen area is accessed by rooms throughout the house, and will be the perfect spot from which to entertain and enjoy views. A second-story loft includes a full bath and closet.

Floor Plans

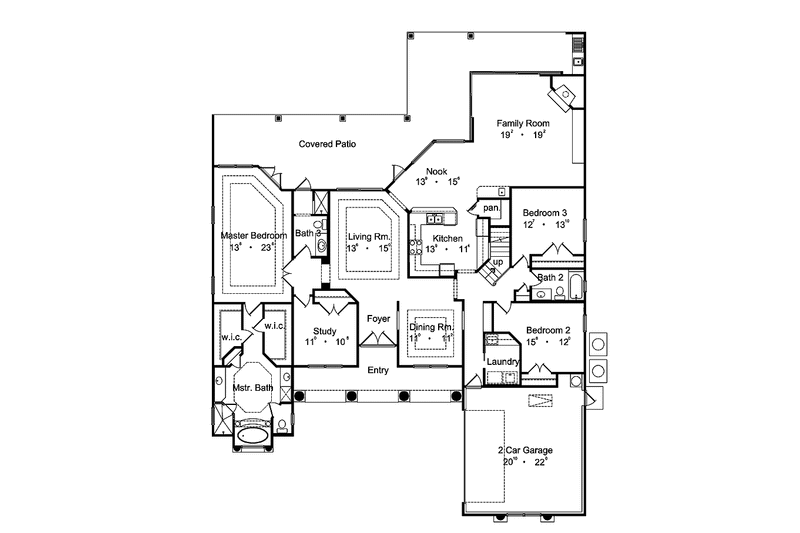

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #417-636

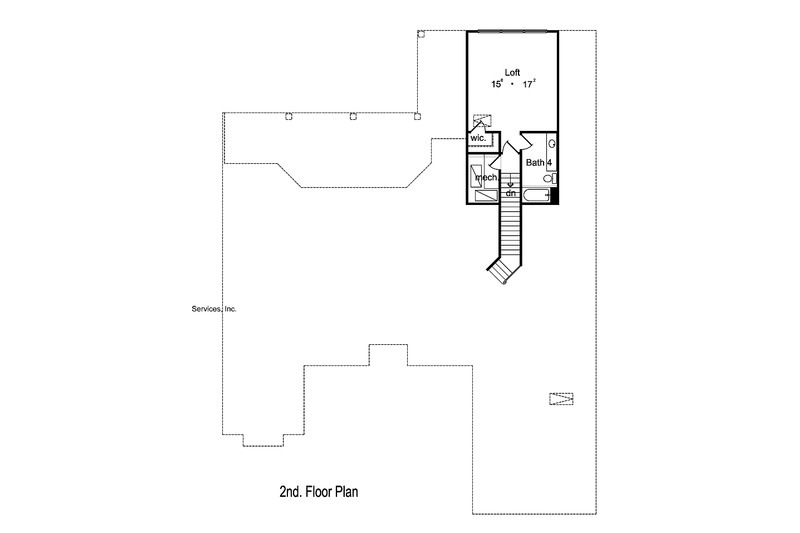

Floor Plan - Upper Floor Plan
Mediterranean Floor Plan - Upper Floor Plan Plan #417-636

Full Specs & Features


Dimension
Depth : 84' 2"
Height : 25'
Width : 65'
Area
First Floor: 2782 sq/ft
Second Floor: 401 sq/ft
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Outdoor Spaces
Courtyard
Covered Rear Porch
Rooms

3rd BR Closet:

18 sq/ft width 9' 1" x depth 2'

Bathroom 2:

48 sq/ft width 9' 1" x depth 5' 4"

Bathroom 3:

66 sq/ft width 5' 10" x depth 11' 4"

Bedroom 2:

188 sq/ft width 15' 8" x depth 12'

Bedroom 2 Closet:

12 sq/ft width 6' x depth 2'

Bedroom 3:

144 sq/ft width 12' 7" x depth 11' 6"

Bedroom 3 Closet:

12 sq/ft width 6' x depth 2'

Bonus Room - Finished:

266 sq/ft width 15' 6" x depth 17' 2"

Breakfast Room:

163 sq/ft width 14' 5" x depth 11' 4"

Dining Room:

122 sq/ft width 11' x depth 11' 2"

Foyer:

50 sq/ft width 6' 8" x depth 7' 6"

Garage:

506 sq/ft width 20' 10" x depth 24' 4"

Gathering Room:

397 sq/ft width 19' 2" x depth 20' 9"

Kitchen:

165 sq/ft width 13' 9" x depth 12'

Laundry Room:

52 sq/ft width 6' x depth 8' 10"

Living Room:

229 sq/ft width 13' 6" x depth 17'

Master Bathroom:

337 sq/ft width 13' 6" x depth 25'

Master Bedroom:

317 sq/ft width 13' 6" x depth 23' 6"

Master Closet:

50 sq/ft width 4' 9" x depth 10' 8"

Porch - Front:

283 sq/ft width 29' 4" x depth 9' 8"

Porch - Rear:

1747 sq/ft width 63' 11" x depth 27' 4"

Study:

143 sq/ft width 11' x depth 13'

Walk-In Closet:

50 sq/ft width 4' 9" x depth 10' 8"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
5 Copy Set :
$1060.00
5 printed plan sets mailed to you.
PDF Set :
$1300.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1300.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$2600.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x4:
$0.00
Wood 2x4
Additional Options
Additional Construction Sets :
45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
75.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.
