Plan Description
The charm of this home is evident from the moment you step onto the front
porch. The family room stretches from front to back porches and delights with
its central hearth. For formal occasions, the living room combines with the
dining room to create the perfect atmosphere. The U-shaped kitchen serves the
breakfast room. In the second-floor master suite, double doors lead to the
formal bath. It features angled vanities and a whirlpool tub. An unfinished
bonus area opens at the rear. Two secondary bedrooms share a bath. This home is
designed with a basement foundation.
Floor Plans

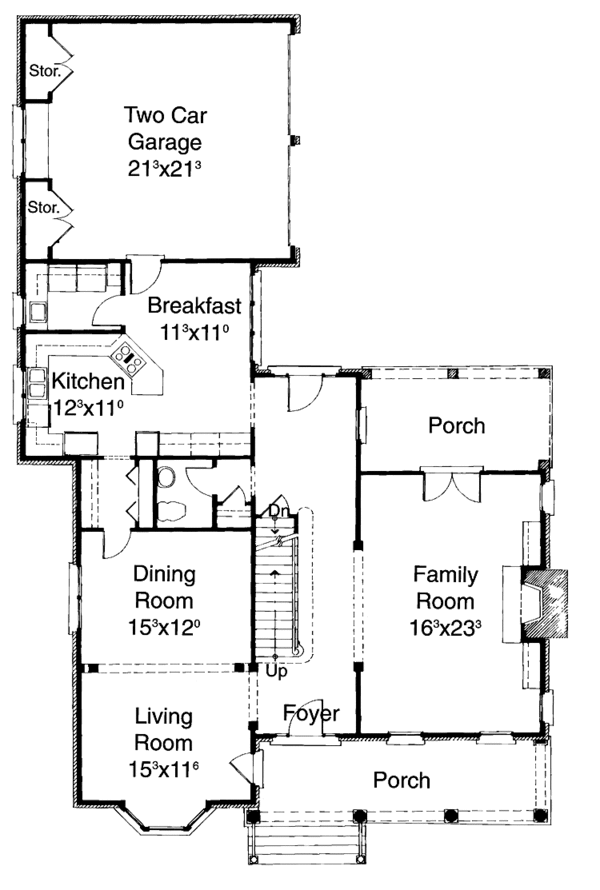

Floor Plan - Main Floor

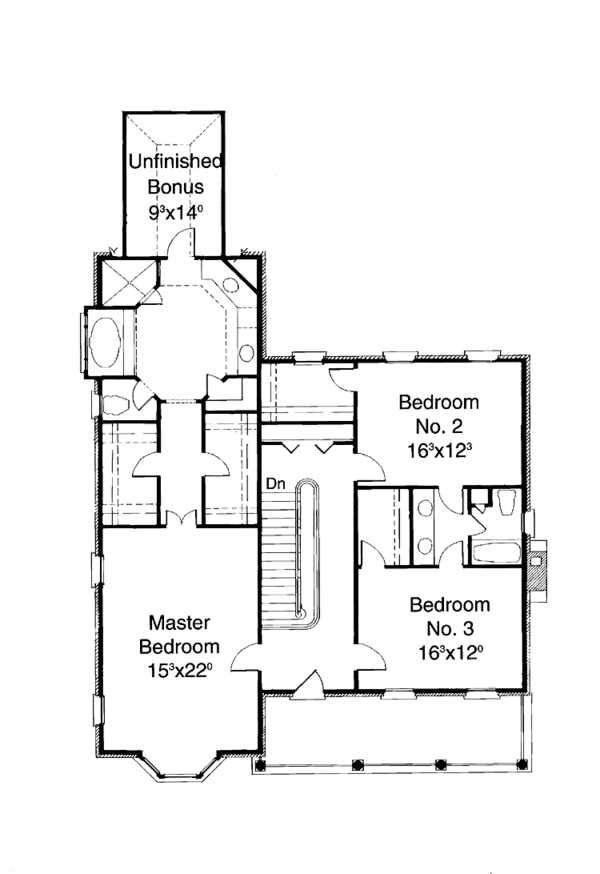

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 73'
Height : 31'
Width : 49' 3"
Area
Bonus: 126 sq/ft
First Floor: 1609 sq/ft
Second Floor: 1583 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Kitchen Features
Breakfast Nook
Additional Room Features
Family Room Keeping Room
Unfinished Future Space
Outdoor Spaces
Covered Front Porch
Rooms
Garage:
451 sq/ft width 21' 3" x depth 21' 3"
Master Bathroom:
202 sq/ft width 15' x depth 13' 6"
Master Closet:
55 sq/ft width 5' 6" x depth 10'
Powder Room:
30 sq/ft width 5' x depth 6'
Utility Room:
51 sq/ft width 6' x depth 8' 6"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
