PLAN #928-234

Key Specs


3203
sq ft

4
Beds

2.5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

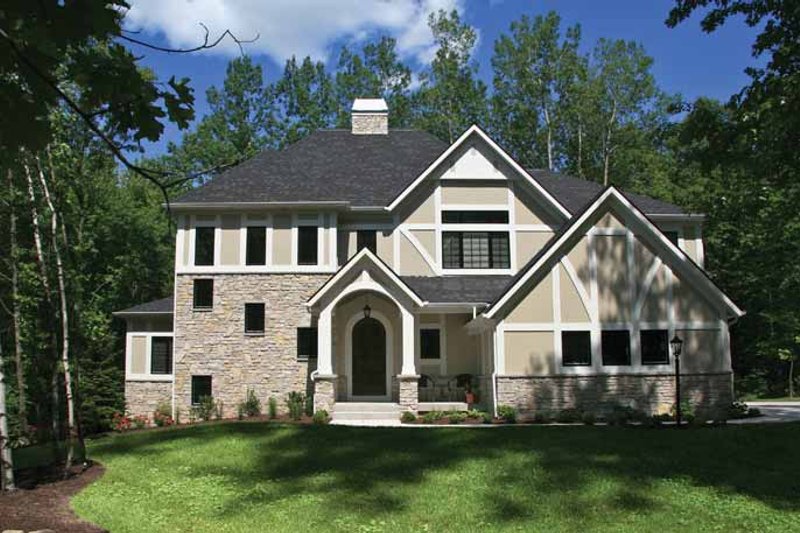

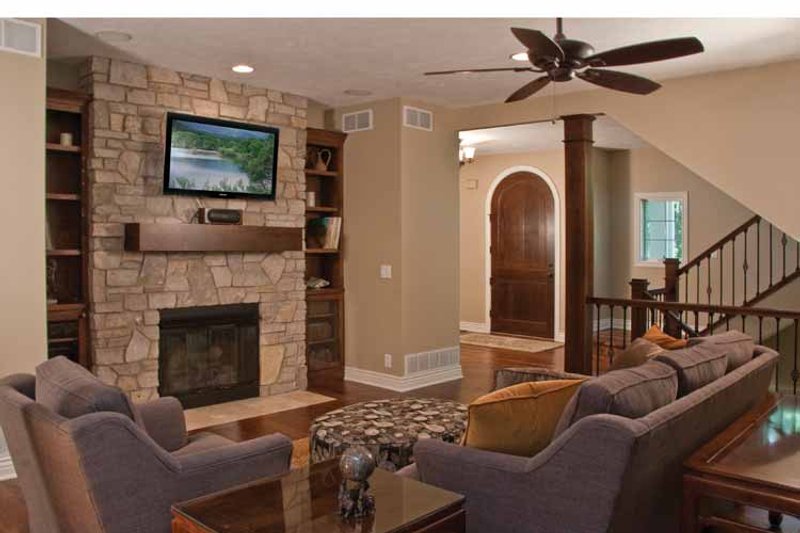

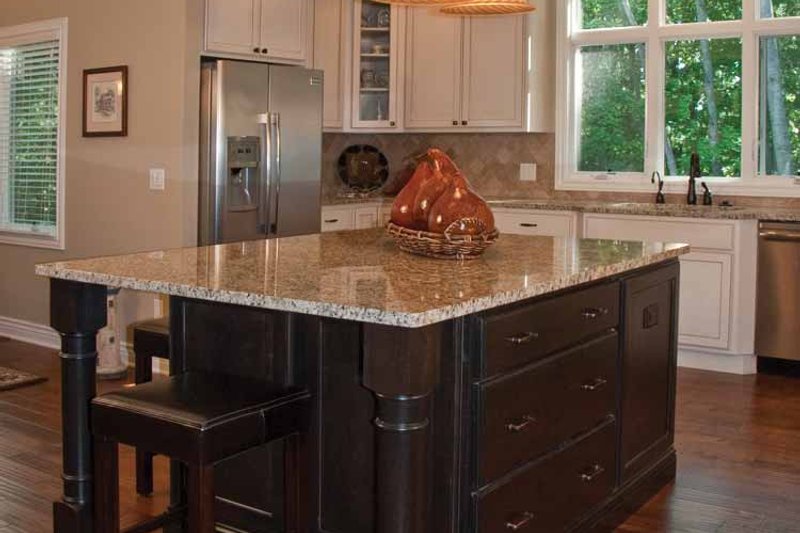

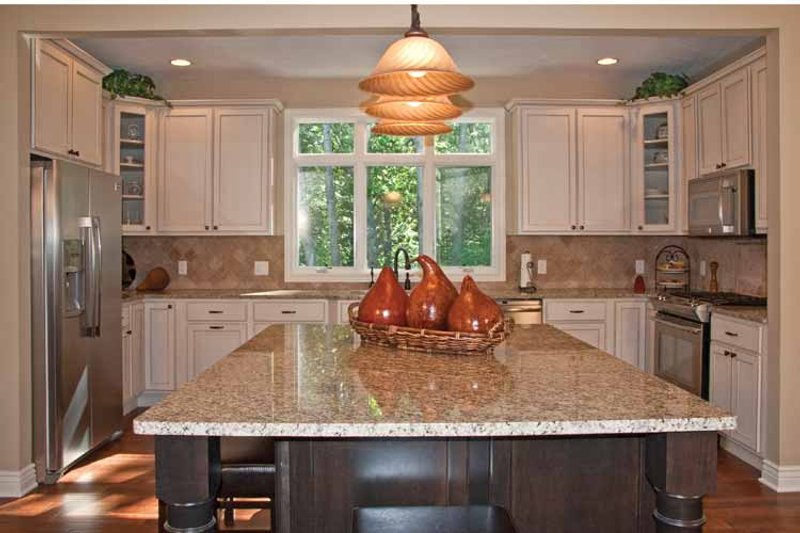

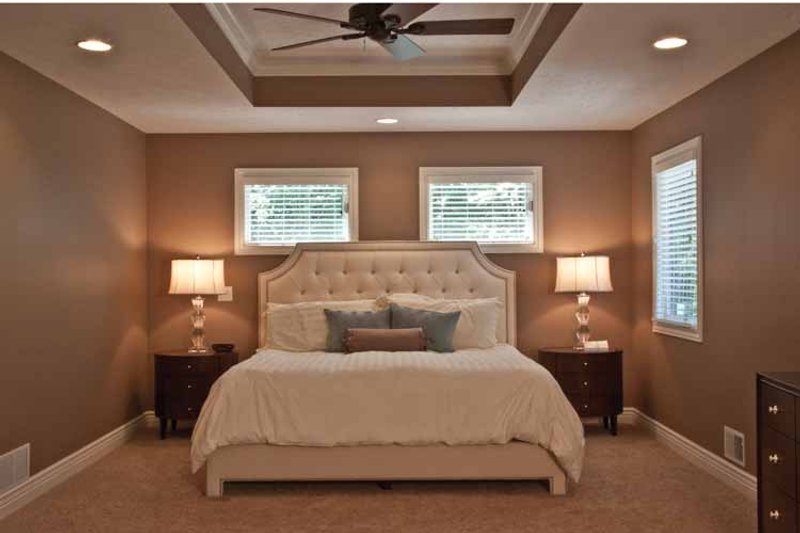

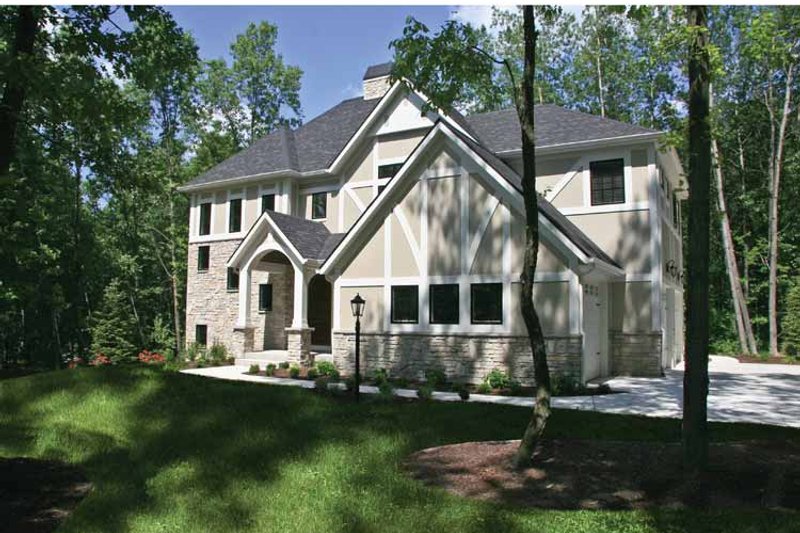

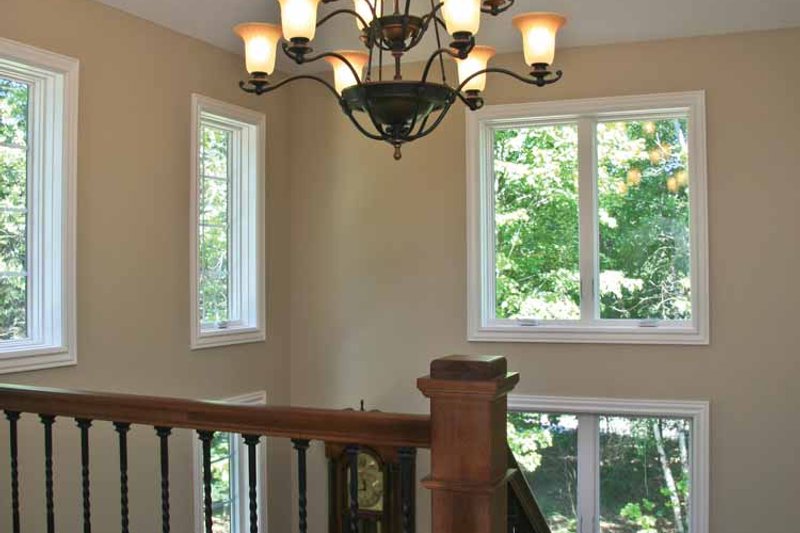

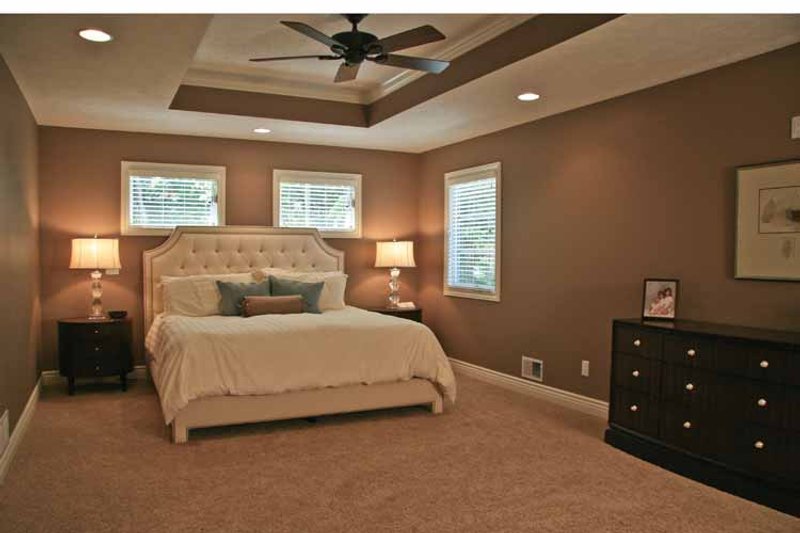

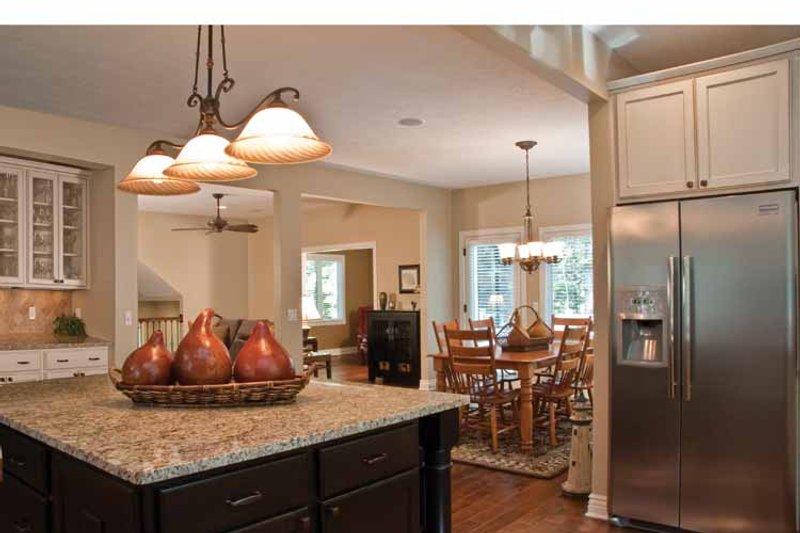

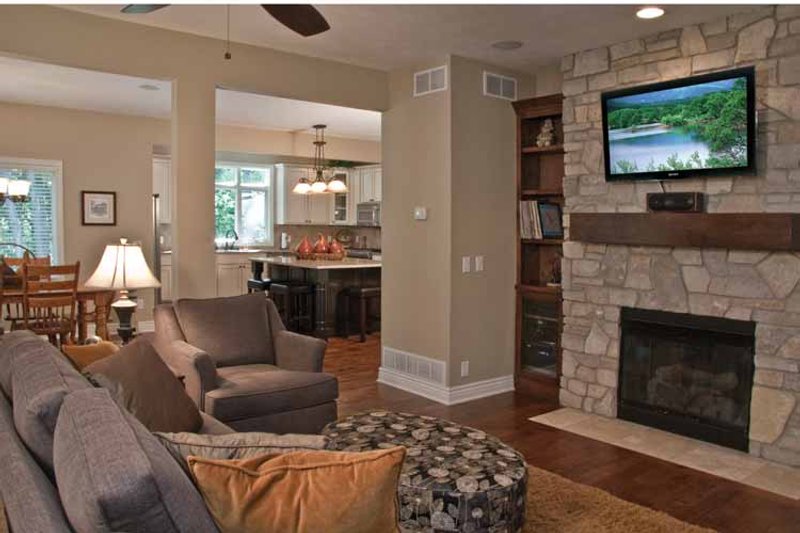

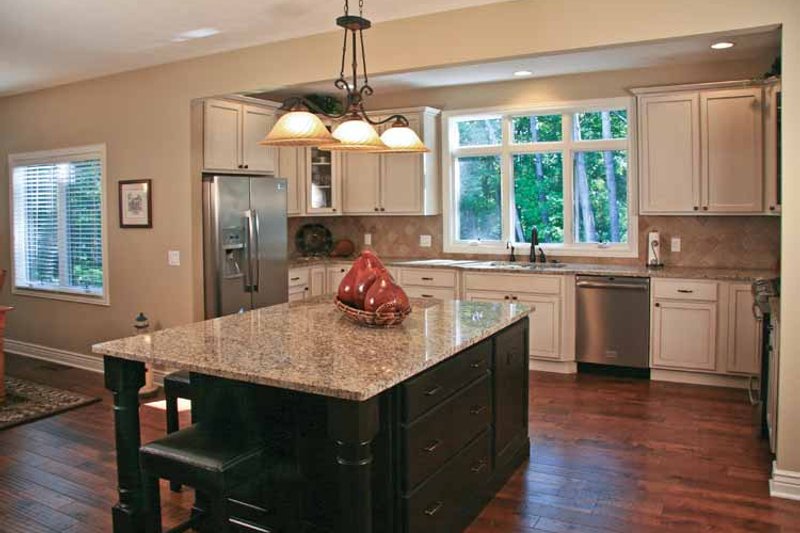

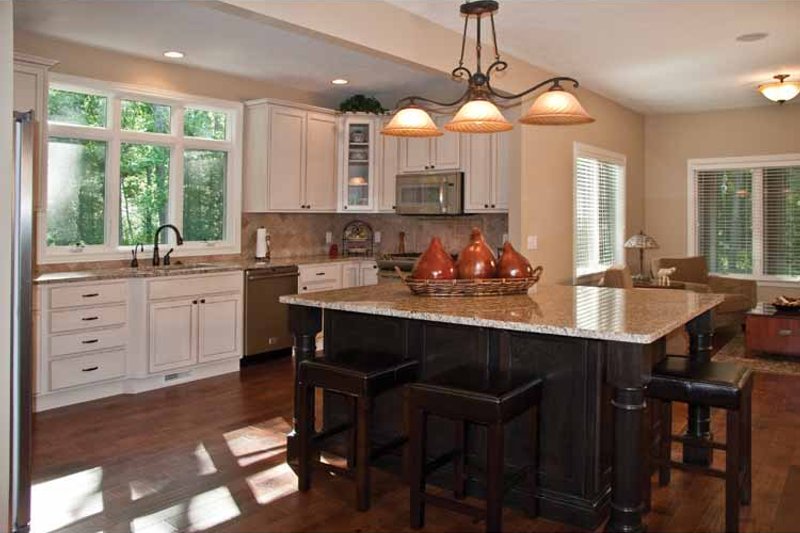

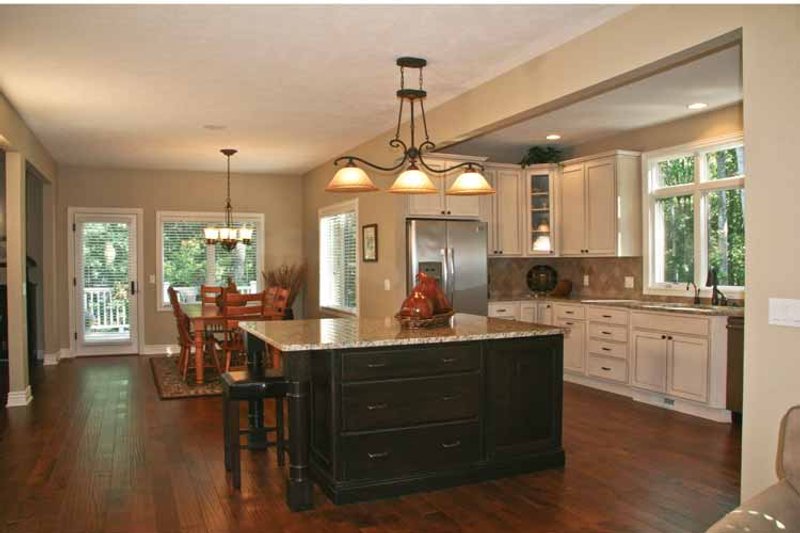

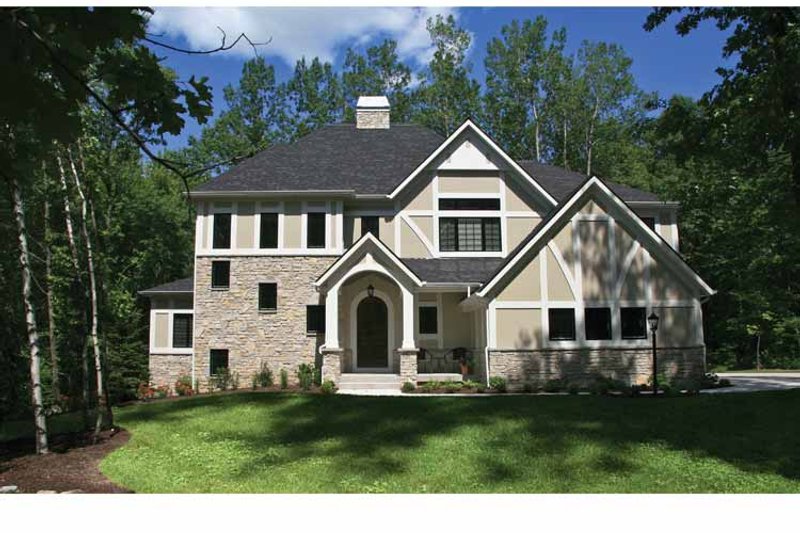

This unique Visbeen Architects design is reminiscent of the Tudor style, and was created to meet the needs of any homeowner. From extra garage space to entry lockers, to a main floor equipped for entertaining, the Glen Mills is a home that gracefully couples style with functionality, winning it honors in the Model Home category at the 2011 American Residential Design Awards. The inviting front entry leads to the living room and hearth area, featuring nook benches perfect for a cold winter’s day. Pocket doors lead to the attached study, while columns separate the living room from the dining and kitchen areas. Ample counter space and seating make the kitchen the center of the home, and the ideal place for entertaining guests. There's no lack of sleeping space, either. The large upstairs master suite includes a full bath, sitting area, and huge divided walk-in closet. Three additional bedrooms, a full bath, and a sitting area complete this floor. For more recreational space, take advantage of the optional finished basement.

Floor Plans


Floor Plan - Other Floor Plan
Tudor Floor Plan - Other Floor Plan Plan #928-234

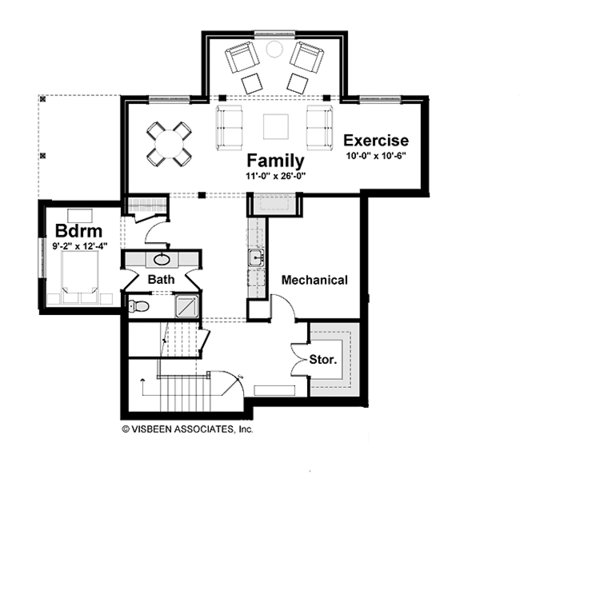

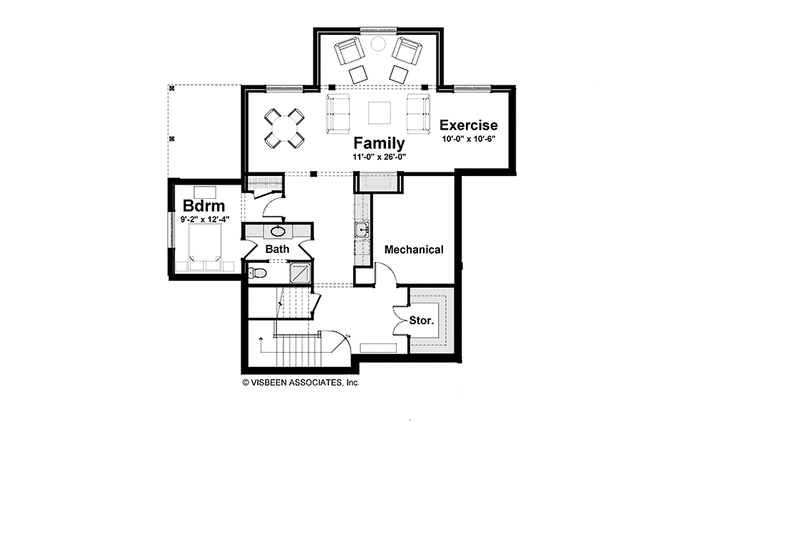

Floor Plan - Lower Floor Plan
Tudor Floor Plan - Lower Floor Plan Plan #928-234

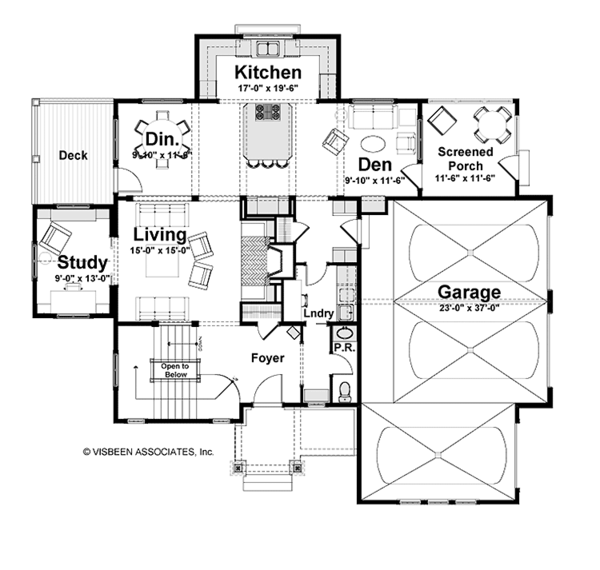

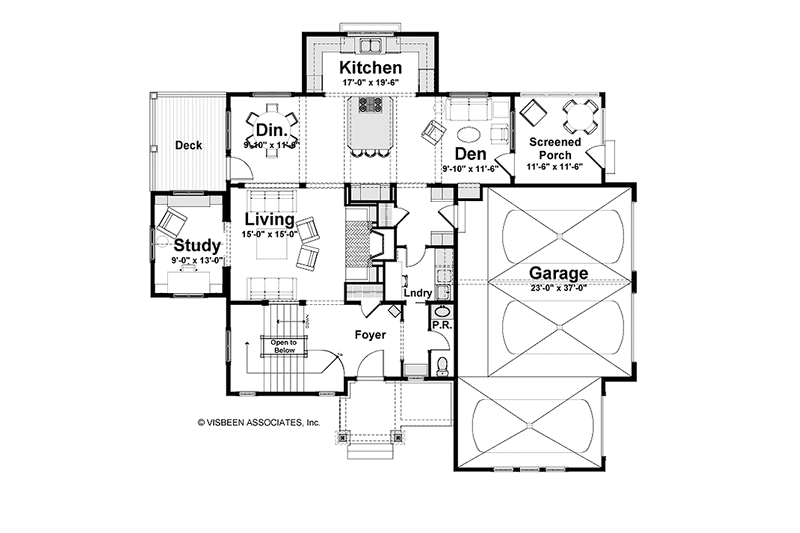

Floor Plan - Main Floor Plan
Tudor Floor Plan - Main Floor Plan Plan #928-234

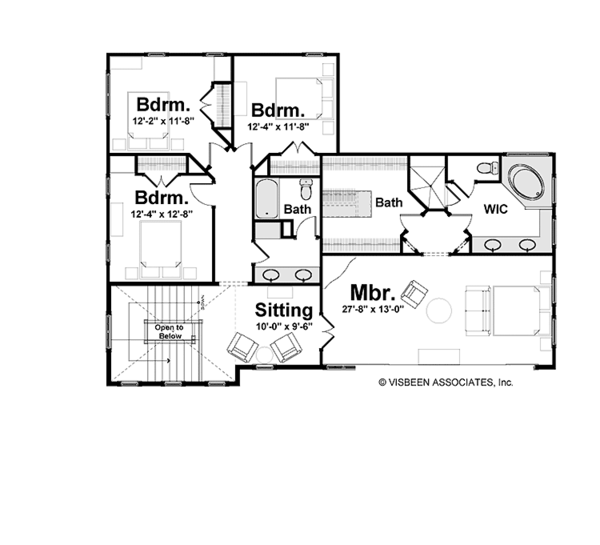

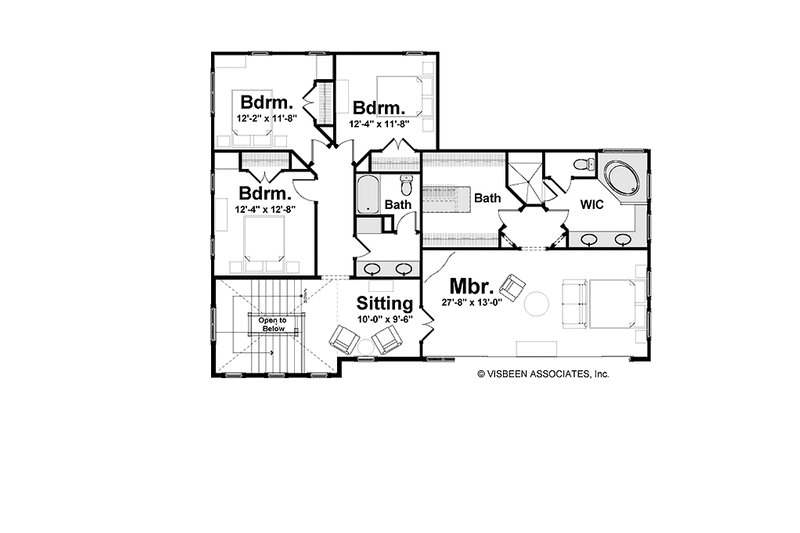

Floor Plan - Upper Floor Plan
Tudor Floor Plan - Upper Floor Plan Plan #928-234

Full Specs & Features


Dimension
Depth : 58'
Height : 35'
Width : 54'
Area
Basement Unfinished: 1151 sq/ft height 9'
First Floor: 1564 sq/ft height 10'
Second Floor: 1639 sq/ft height 8'
Roof
Roof Framing : Truss
Primary Pitch : 12:12
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Guest Suite
Split Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchen Island

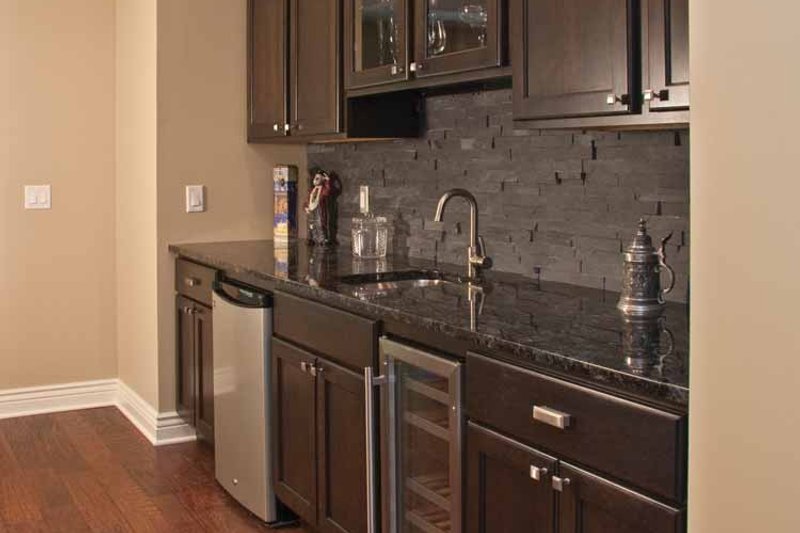

Kitchenette Wet Bar
Breakfast Nook
Additional Room Features
Mud Room
Den Office Study Computer
Exercise Room
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Media Room
Unfinished Future Space
Sunroom
Open Floor Plan
Vaulted / Cathedral Ceilings
Garage Features

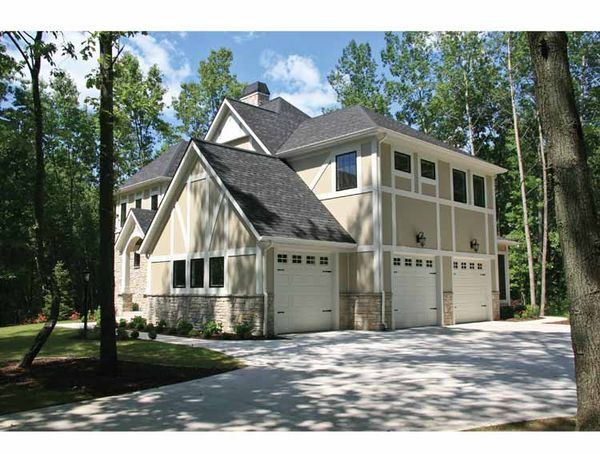

Side Entry Garage
Outdoor Spaces
Covered Front Porch

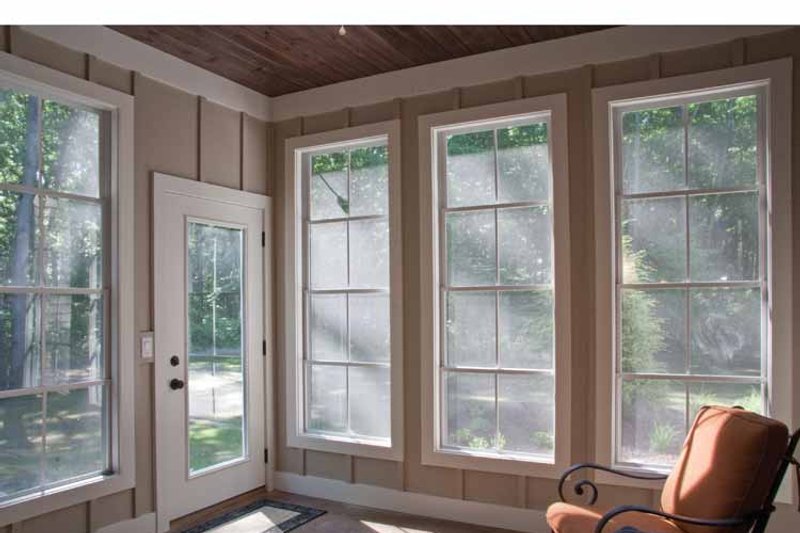

Screened Porch
Deck
Rooms

Bedroom 2:

141 sq/ft width 12' 2" x depth 11' 8"

Bedroom 3:

143 sq/ft width 12' 4" x depth 11' 8"

Bedroom 4:

156 sq/ft width 12' 4" x depth 12' 8"

Bedroom 5:

113 sq/ft width 9' 2" x depth 12' 4"

Den:

113 sq/ft width 9' 10" x depth 11' 6"

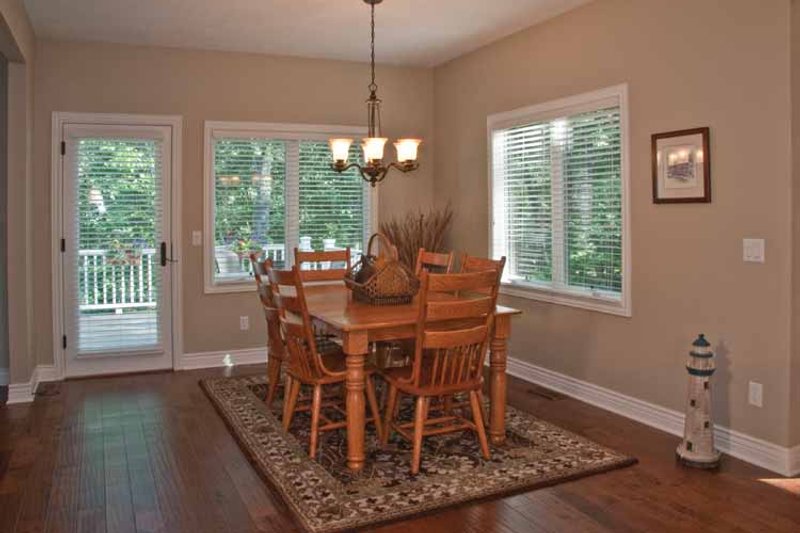

Dining Room:

113 sq/ft width 9' 10" x depth 11' 6"

Exercise Room:

105 sq/ft width 10' x depth 10' 6"

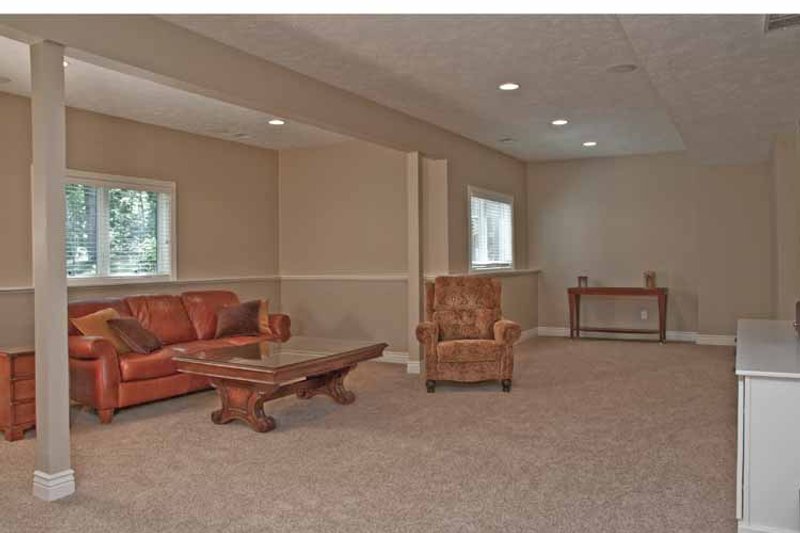

Family Room:

286 sq/ft width 11' x depth 26'

Garage:

851 sq/ft width 23' x depth 37'

Kitchen:

331 sq/ft width 17' x depth 19' 6"

Living Room:

225 sq/ft width 15' x depth 15'

Master Bedroom:

359 sq/ft width 27' 8" x depth 13'

Master Sitting Room:

95 sq/ft width 10' x depth 9' 6"

Porch - Screened:

132 sq/ft width 11' 6" x depth 11' 6"

Study:

117 sq/ft width 9' x depth 13'

What's Included In This Plan Set


Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in some areas of Michigan requires special permission from the Architect.

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

» See important information before purchasing.

Plan Set

PDF Set :
$995.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$2995.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x6:
$0.00
Wood 2x6

Additional Options

Right-Reading Reverse :
195.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
