PLAN #1017-164

Key Specs


3211
sq ft

3
Beds

3.5
Baths

1
Floors

2
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

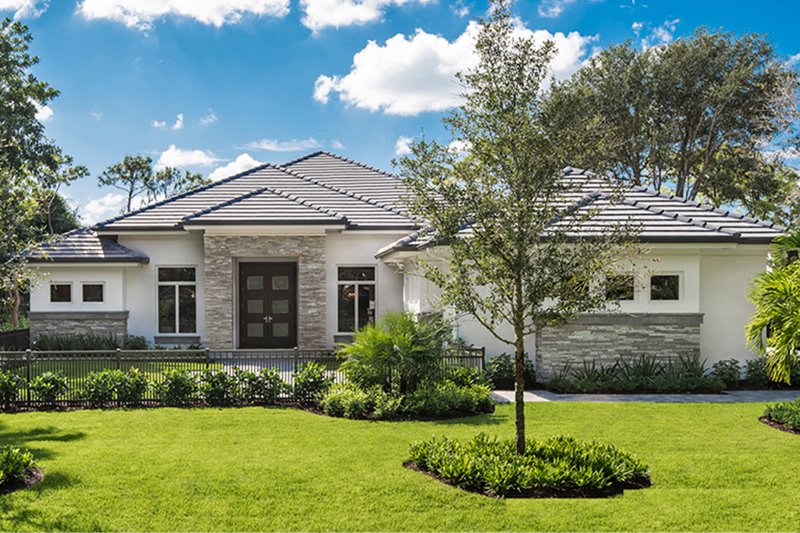

This one-story layout balances open gathering areas (like the great room and island kitchen) with more intimate nooks, including the music nook near the foyer and a sitting area in the master suite. Owners will also enjoy the upscale features of the master bathroom, including an extra-large shower and a seated vanity station. Two bedrooms, two bathrooms, and a flexible study provide comfortable accommodations for family and friends on the opposite side of the home. The large lanai encourages outdoor relaxation. This plan is not for sale in Collier and Lee Counties in Florida without the written consent of the designer.

Floor Plans

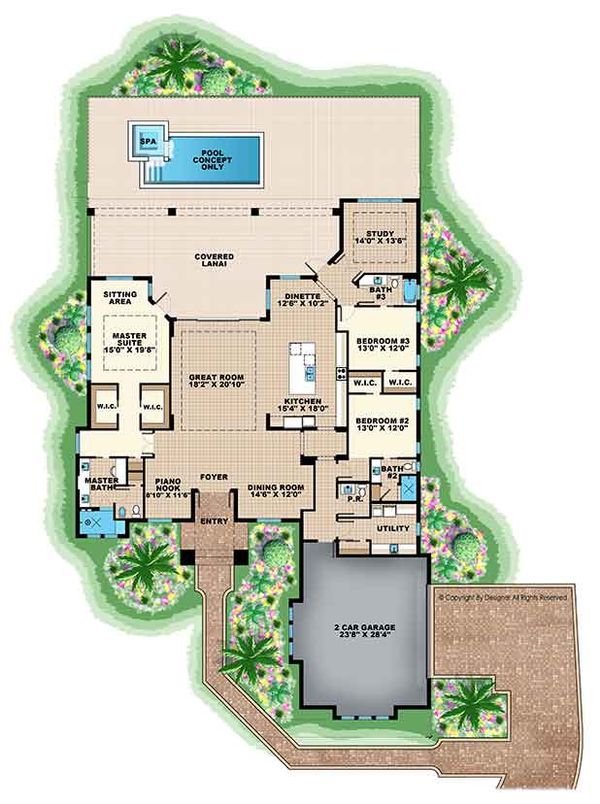

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

Full Specs & Features


Area Garage : 796 sq/ft
Main Floor : 3211 sq/ft
Bedroom Features Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Formal Dining Room
Kitchen Features Kitchen Island
Additional Room Features Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Open Floor Plan
Garage Features Side Entry Garage
Outdoor Spaces Courtyard
Covered Rear Porch

What's Included In This Plan Set


Home Plans by Weber Inc

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
CAD Set :
$2000.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set :
$2000.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$2000.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Foundation
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Block:
$0.00
Block
Wood 2x4:
$350.00
Wood 2x4
Wood 2x6:
$350.00
Wood 2x6
Additional Options
Right-Reading Reverse :
350.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.
