PLAN #124-713

Key Specs


3231
sq ft

3
Beds

3.5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

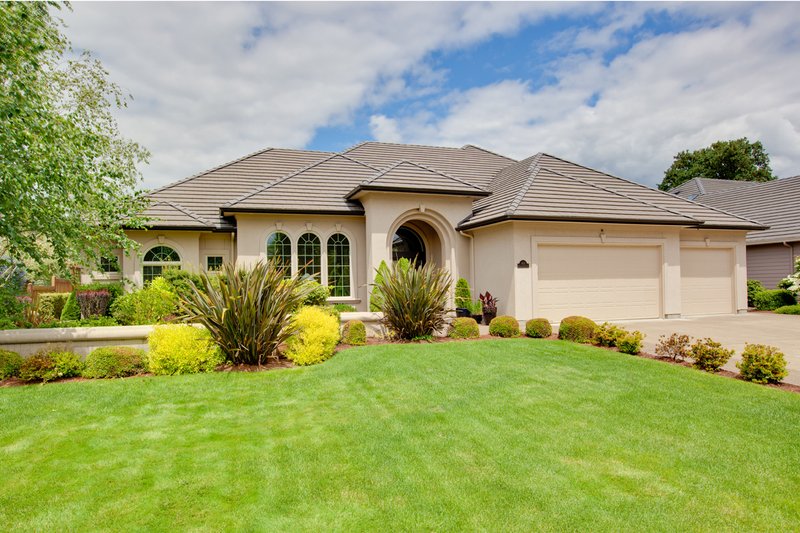

A bright stucco facade and high arched windows give this Mediterranean-style home plan a beguilingly sunny look. Gently arched windows, stacked high, fill the living room's rear wall. The roomy kitchen/dining room is wide open to the great room. Both the dining room and luxurious owners' suite offer patio access.

 Gracefully arched windows echo the shape of an elegantly breezy entry portico. Windows sparkle across the rear of a central great room open to
 the kitchen. Master suite luxuries include: two closets, twin lavs, spa
 tub, walk-in shower.

Floor Plans


Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #124-713
Floor Plan - Upper Floor Plan
Mediterranean Floor Plan - Upper Floor Plan Plan #124-713

Full Specs & Features


Dimension
Depth : 57'
Height : 29'
Width : 74'
Area
Bonus: 247 sq/ft
First Floor: 2572 sq/ft
Garage: 825 sq/ft
Second Floor: 659 sq/ft
Ceiling
Main Ceiling : 10'
Upper Ceiling Ft : 8'
Roof
Roof Framing : 2x6
Roof Load : 30
Primary Pitch : 8:12
Roof Type : Truss
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : 2"x6"
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Storage Area
Garage Features
Front Entry Garage
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Grill Deck Sundeck
More
Empty Nester
Code Compliance
Irc 2006
Structural Information Provided
Foundation Drawing
Structural 1st Floor Framing
Structural 2nd Floor Framing

What's Included In This Plan Set


Please note, if ordering a PDF set, it is not-modifiable. The CAD set is best for making local modifications

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
