Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

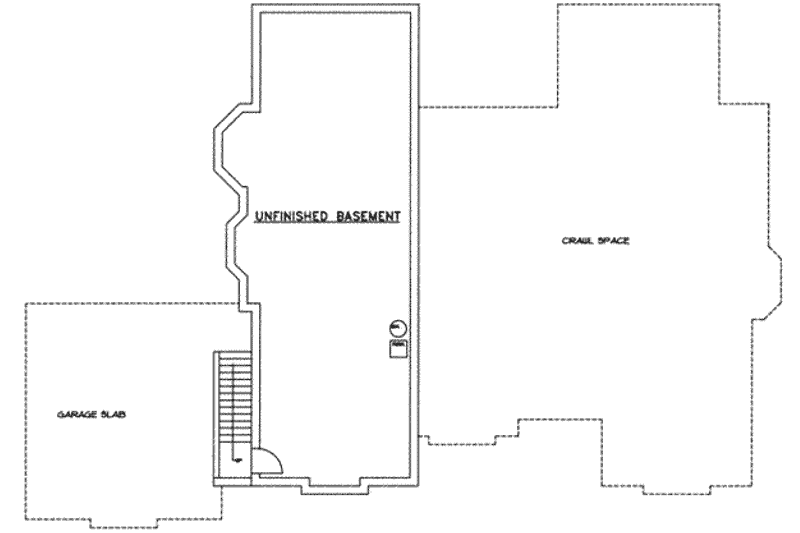

Floor Plan - Lower Floor Plan
Traditional Floor Plan - Lower Floor Plan Plan #117-173

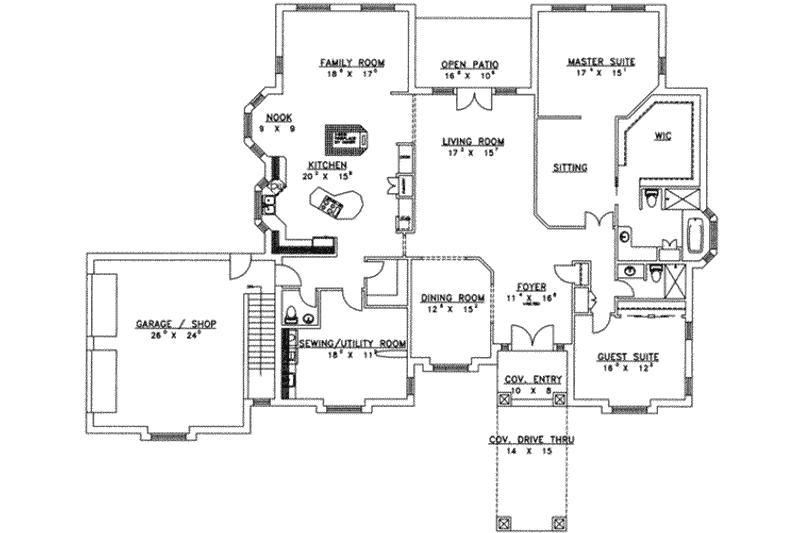

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #117-173

Full Specs & Features

Dimension Depth : 76'
Height : 19' 6"
Width : 90' 6"
Area Lower Floor : 1240 sq/ft
Main Floor : 3235 sq/ft
Exterior Wall Framing Framing : ICF
Bedroom Features Guest Suite
Kitchen Features Kitchen Island
Breakfast Nook
Additional Room Features Family Room Keeping Room
Master Sitting Area
Garage Features Carport Porte Cochere
Side Entry Garage
Lot Characteristics Suited For Corner Lot
Breakfast Nook 81 sq/ft width 9' x depth 9'
Dining Room 189 sq/ft width 12' 6" x depth 15' 2"
Family Room 314 sq/ft width 18' 6" x depth 17'
Guest Bedroom 194 sq/ft width 16' x depth 12' 2"
Kitchen 315 sq/ft width 20' 2" x depth 15' 8"
Master Bedroom 261 sq/ft width 17' 4" x depth 15' 1"
Patio 175 sq/ft width 16' 8" x depth 10' 6"
Porch - Front 80 sq/ft width 10' x depth 8'

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
