PLAN #54-191

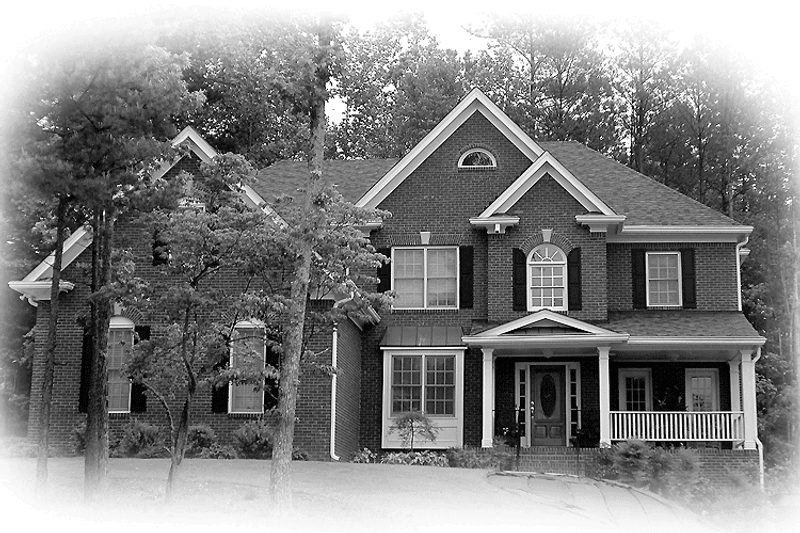

Photographs may show modified designs.

Save
Select Plan Set Options
What's included?
Additional Construction Sets
$70.00/each
Mirror Reversed Sets
$55.00
Subtotal
$1793.00
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions?
Questions?
Hours  Mon-Fri, 6am - 5:30pm PST

PLAN #54-191

Key Specs


3260
sq ft

5
Beds

4
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Designed for living comfort and entertaining, this fetching plan may be exactly what you are looking for. Step into the two-story foyer and formal dining and living rooms are immediately on either side. Straight ahead, the grand room soars two stories and sweeps around a curved bar into the informal family breakfast alcove. On the other side of the bar/counter, the spacious kitchen opens to a keeping room with a charming fireplace. A bedroom with a private bath is situated on the first floor...perfect for sleepover guests...and four more bedrooms, all with walk-in closets, and three baths are upstairs. The resplendent master suite enjoys a sitting room with an inviting view of the backyard and gardens. Optional space that could be used for an exercise room, office, or hobby area is also on this floor.

Floor Plans

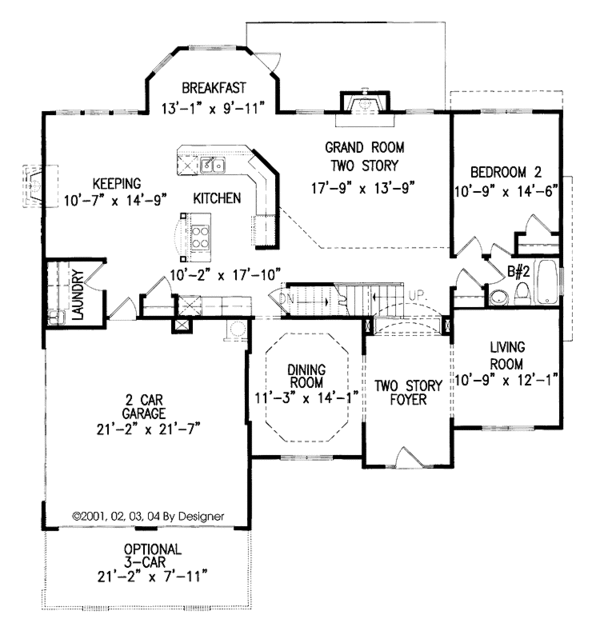

Floor Plan - Main Floor Plan
Country Floor Plan - Main Floor Plan Plan #54-191

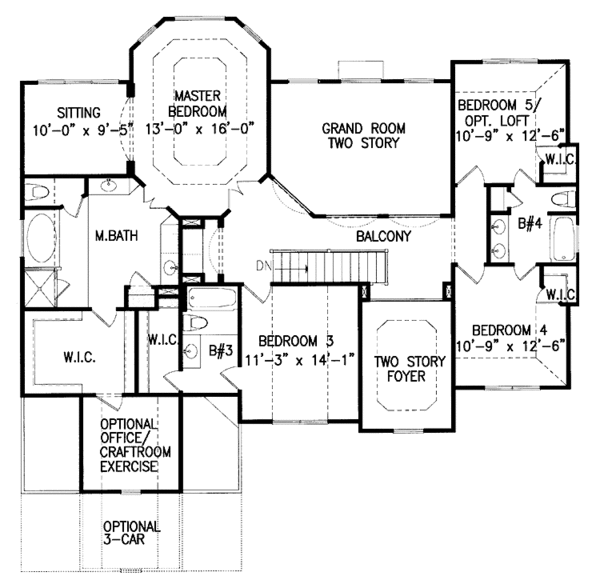

Floor Plan - Upper Floor Plan
Country Floor Plan - Upper Floor Plan Plan #54-191

Full Specs & Features


Dimension
Depth : 50'
Height : 32'
Width : 53' 4"
Area
First Floor: 1670 sq/ft height 12'
Second Floor: 1590 sq/ft
Roof
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchenette Wet Bar
Additional Room Features
Exercise Room
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Loft
Open Floor Plan
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Balcony
Outdoor Kitchen Grill
Deck
Rooms

Bedroom 2:

155 sq/ft width 10' 9" x depth 14' 6"

Bedroom 3:

158 sq/ft width 11' 3" x depth 14' 1"

Bedroom 4:

134 sq/ft width 10' 9" x depth 12' 6"

Bedroom 5:

134 sq/ft width 10' 9" x depth 12' 6"

Breakfast Room:

129 sq/ft width 13' 1" x depth 9' 11"

Dining Room:

158 sq/ft width 11' 3" x depth 14' 1"

Garage:

456 sq/ft width 21' 2" x depth 21' 7"

Great Room:

244 sq/ft width 17' 9" x depth 13' 9"

Keeping Room:

width 10' 7" x depth 14' 9"

Kitchen:

181 sq/ft width 10' 2" x depth 17' 10"

Living Room:

129 sq/ft width 10' 9" x depth 12' 1"

Master Bedroom:

208 sq/ft width 13' x depth 16'

Master Bedroom Sitting Room:

width 10' x depth 9' 5"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
$1793.00
5 printed plan sets mailed to you.
PDF Set :
$1793.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1793.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.

Framing

Wood 2x4:
$0.00
Wood 2x4

Additional Options

Additional Construction Sets :
70.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
55.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
