PLAN #20-341

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

Floor Plan - Main Floor Plan

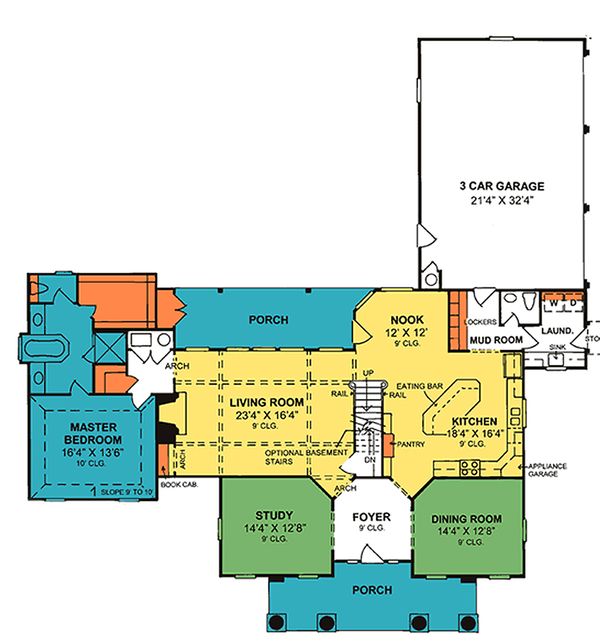

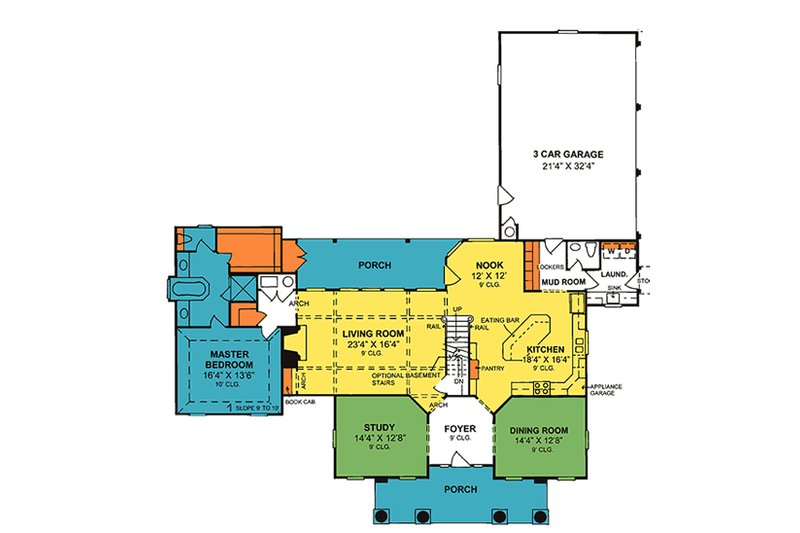

Southern colonial style house plan, main level floor plan
Floor Plan - Upper Floor Plan

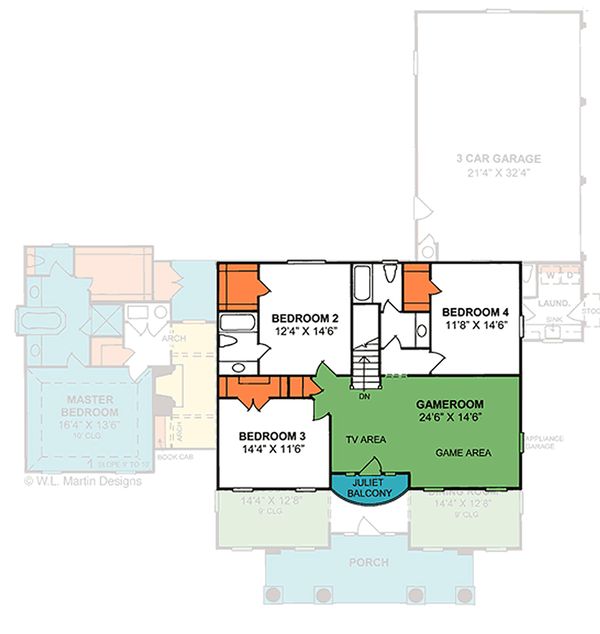

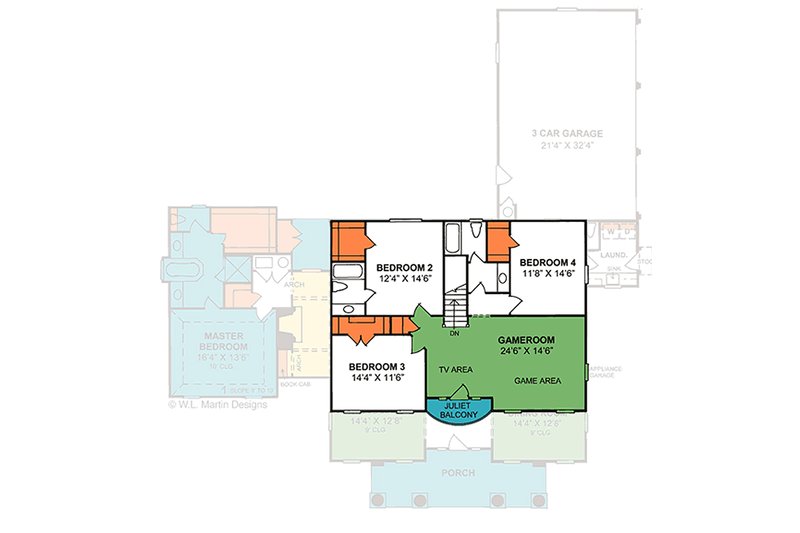

Southern colonial style house plan, upper level floor plan

Full Specs & Features

Depth : 78'
Height : 32'
Width : 73'
First Floor: 2070 sq/ft
Garage: 726 sq/ft
Second Floor: 1200 sq/ft
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Exterior Wall Framing
Framing : 2"x4"
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Breakfast Nook
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Garage Features
Oversized Garage
Rear Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Loft Balcony

Bathroom 2:

20 sq/ft width 5' x depth 4' 2"

Bathroom 3:

40 sq/ft width 5' x depth 8'

Bedroom 2:

178 sq/ft width 12' 4" x depth 14' 6"

Bedroom 3:

164 sq/ft width 14' 4" x depth 11' 6"

Bedroom 4:

169 sq/ft width 11' 8" x depth 14' 6"

Dining Room:

181 sq/ft width 14' 4" x depth 12' 8"


105 sq/ft width 10' x depth 10' 6"

Game Room:

355 sq/ft width 24' 6" x depth 14' 6"


689 sq/ft width 21' 4" x depth 32' 4"


299 sq/ft width 18' 4" x depth 16' 4"

Kitchen Island:

32 sq/ft width 8' x depth 4'

Living Room:

381 sq/ft width 23' 4" x depth 16' 4"

Master Bathroom:

89 sq/ft width 8' 6" x depth 10' 6"

Master Bedroom:

220 sq/ft width 16' 4" x depth 13' 6"

Master Closet:

68 sq/ft width 10' x depth 6' 10"


144 sq/ft width 12' x depth 12'


3 sq/ft width 3' x depth 1'


181 sq/ft width 14' 4" x depth 12' 8"

Utility Room:

83 sq/ft width 9' 8" x depth 8' 8"

What's Included In This Plan Set

  • Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.

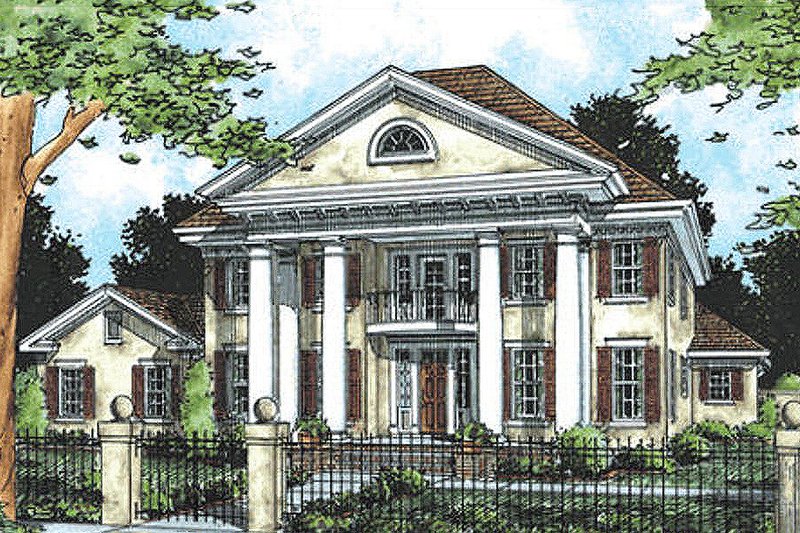

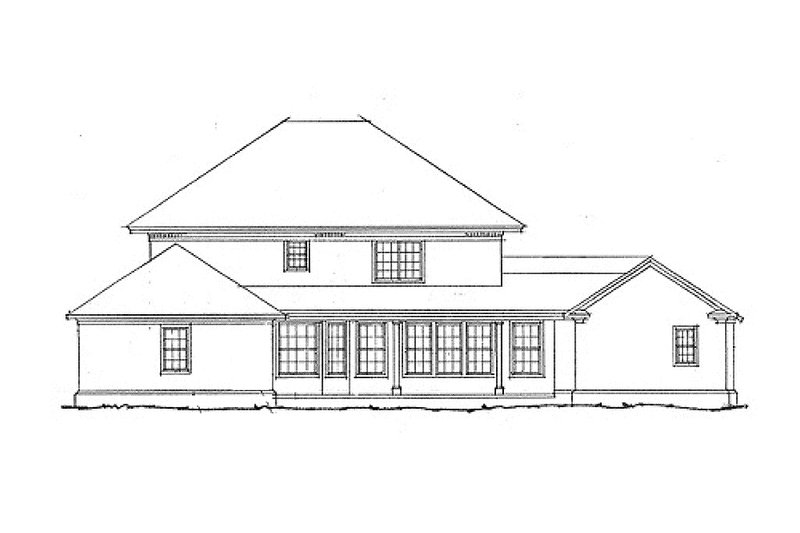

  • Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
  • Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
  • Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations: Kitchen cabinet elevations are drawn.
  • Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
» See important information before purchasing.
Plan Set
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for level lot, single layer concrete poured directly on grade.
Ideal for level lot, lower level of home partially or fully underground.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Additional Options
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
