PLAN 60-1029
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans

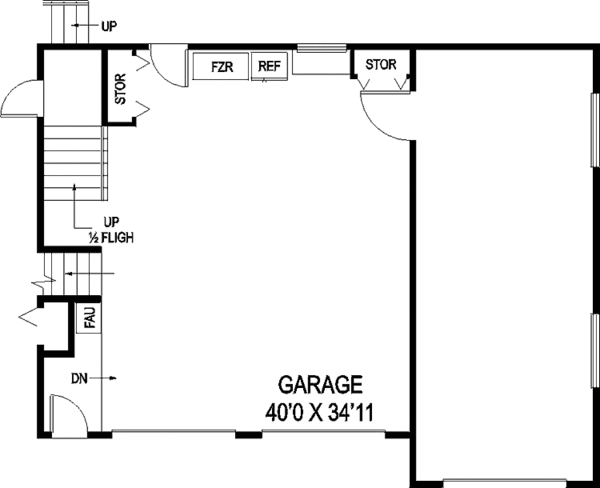

Floor Plan - Lower Floor

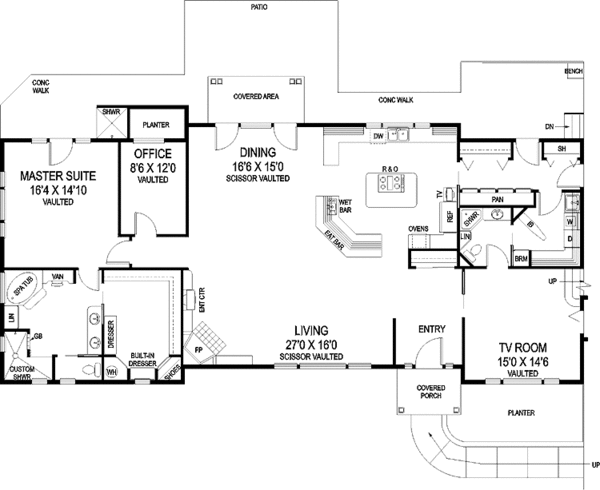

Floor Plan - Main Floor

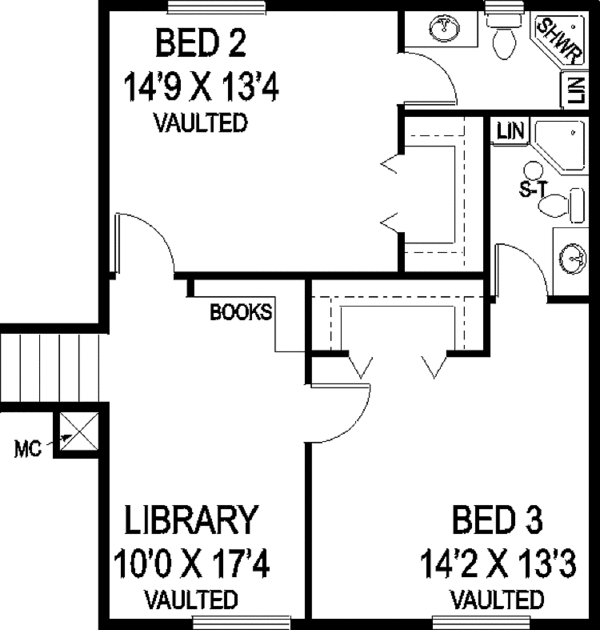

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 34'
Height : 25'
Width : 121'
Area
First Floor: 2436 sq/ft
Second Floor: 838 sq/ft
Roof
Primary Pitch : 6:12
Exterior Wall Framing
Exterior Wall Finish : Shingle/Stone
Framing : Wood - 2x6
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchen Island
Additional Room Features
Den Office Study Computer
Vaulted / Cathedral Ceilings
Rooms
Bedroom 2:
196 sq/ft width 14' 9" x depth 13' 4"
Bedroom 3:
187 sq/ft width 14' 2" x depth 13' 3"
Dining Room:
247 sq/ft width 16' 6" x depth 15'
Garage:
1396 sq/ft width 40' x depth 34' 11"
Library:
173 sq/ft width 10' x depth 17' 4"
Living Room:
405 sq/ft width 27' x depth 15'
Master Suite:
242 sq/ft width 16' 4" x depth 14' 10"
Office:
102 sq/ft width 8' 6" x depth 12'
TV Room/Bedroom:
217 sq/ft width 15' x depth 14' 6"
What's Included In This Plan Set
- Exterior Elevations are scaled (1/4" and 1/8" = 1'-0") drawings of the front, rear, left, and right sides of the home.
- Detailed Floor plans of the home accurately dimensioning the positioning of the walls, doors, windows, stairs, and permanent fixtures.
- Foundation plan details the foot print of the home. Location and size of load points, stem walls, footings, pony walls, and floor joist.
- Roof plans are typically truss planing, truss manufacturer will provide detail diagrams of truss's. In some cases the roof plans may be drawn as stick framed or have stick framing which will call out lumber sizes and spacing.
- Cross Sections offer a cut away through the home showing your builder the correlation of building components.
- Details indicate minimum CABO/IRC standards for construction of the home.
- Electrical plan shows the schematic of the electrical layout. Most electricians want to discuss the options the home owner desires prior to bidding.
- Mechanical and Detailed Plumbing plans are not included. These are site specific and are accomplished by those professionals.
- All plans are prepared in compliance with the Uniform Building Code (ICBO) or the International Residential Code, a National Standard for residential construction at the time of completion.
Plan Set
$935.00
$935.00
Foundation
$0.00
Framing
$0.00
Additional Options
$51.00
$85.00
$33.15
$170.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
