Key Specs


3276
sq ft

4
Beds

3.5
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Featuring a wide open design that is perfect for waterfront views, this plan offers tremendous curb appeal! With a more formal living floor plan that includes four bedrooms, three full baths and one half bath, built in wet bar, an upstairs loft and office space. The transitional Mediterranean architecture is complimented by a stucco finish with an arched entry and arched windows, and a barrel tile roof. Enjoy entertaining friends and family? The split bedroom design ensures your privacy while the functional family room and outdoor living areas create an easy flow for guests. This plan is not for sale in Collier and Lee Counties in Florida without the written consent of the designer.

Floor Plans

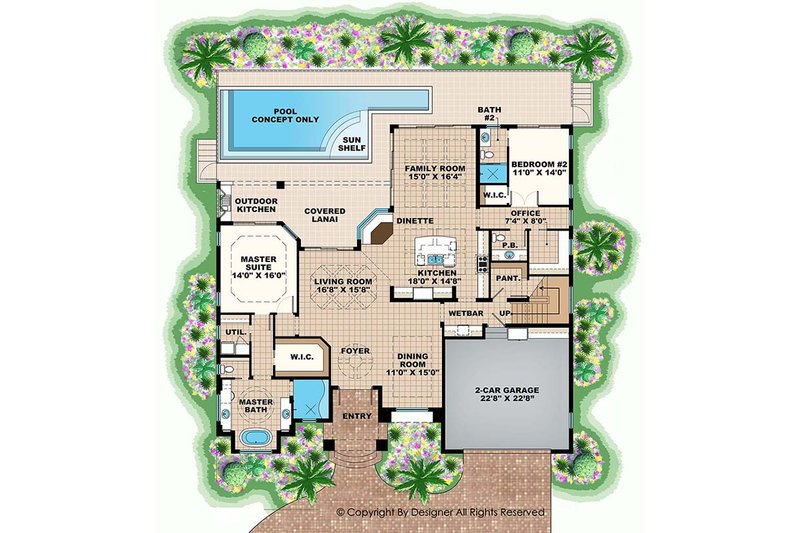

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #1017-162

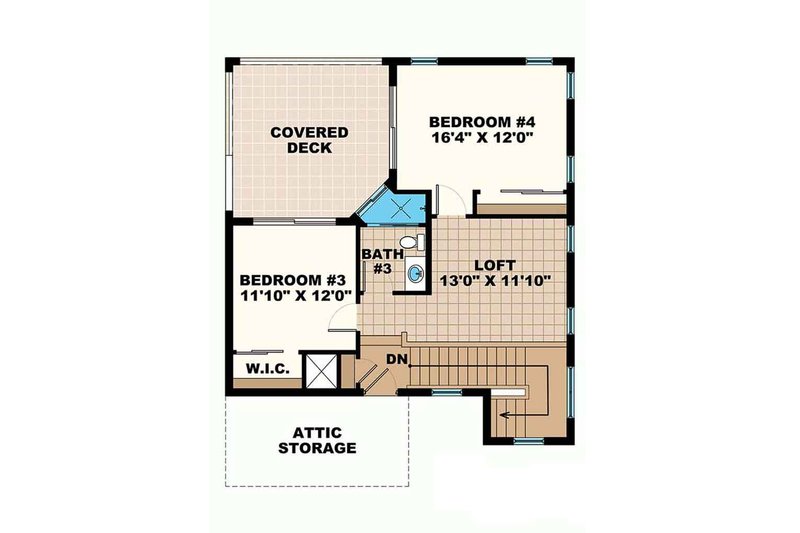

Floor Plan - Upper Floor Plan
Mediterranean Floor Plan - Upper Floor Plan Plan #1017-162

Full Specs & Features


Dimension
Depth : 60'
Height : 33' 10"
Width : 65'
Area
First Floor: 2531 sq/ft
Garage: 534 sq/ft
Second Floor: 745 sq/ft
Roof
Roof Framing : Truss
Primary Pitch : 6:12
Roof Type : Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Bedroom Features
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Loft
Open Floor Plan
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Rear Porch
Balcony
Outdoor Kitchen Grill
Deck
More
Jack & Jill Bath
Rooms

Covered Front Porch:

113 sq/ft

Covered Rear Porch:

278 sq/ft
