Key Specs
3278
sq ft
3
Beds
2.5
Baths
2
Floors
0
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 117-541
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 53'
Height : 23' 4"
Width : 52'
Area
Attic: 381 sq/ft
Basement Living: 1444 sq/ft
First Floor: 1444 sq/ft
Second Floor: 390 sq/ft
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : 2"x6"
Rooms
Attic:
165 sq/ft width 12' x depth 13' 10"
Bedroom 2:
166 sq/ft width 11' 5" x depth 14' 7"
Bedroom 3:
166 sq/ft width 11' 5" x depth 14' 7"
Dining Room:
149 sq/ft width 12' x depth 12' 5"
Foyer:
95 sq/ft width 6' 10" x depth 14'

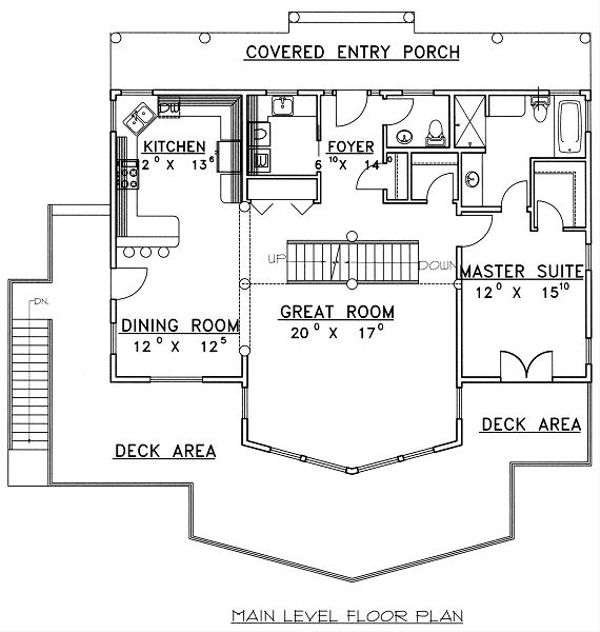

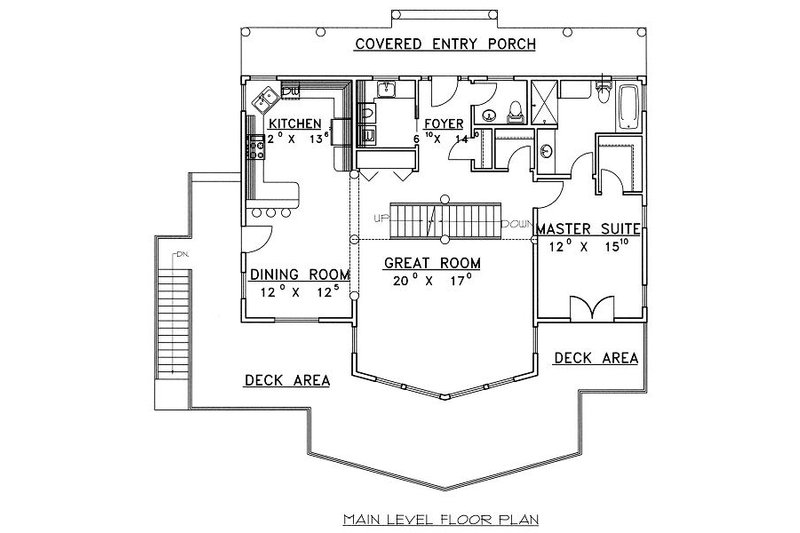

Great Room:
340 sq/ft width 20' x depth 17'
Kitchen:
162 sq/ft width 12' x depth 13' 6"

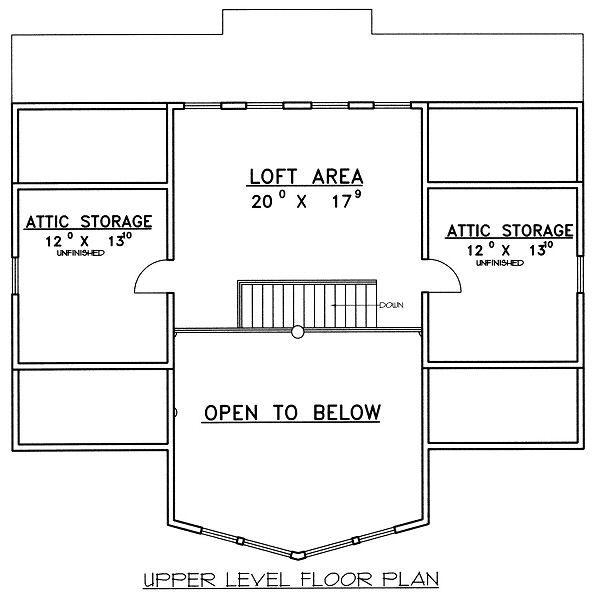

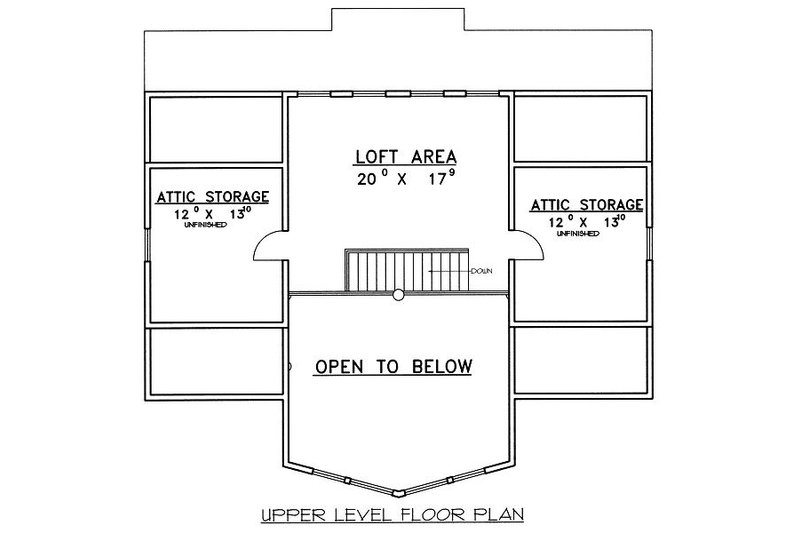

Loft:
355 sq/ft width 20' x depth 17' 9"
Master Bedroom:
189 sq/ft width 12' x depth 15' 10"
Mechanical/Equipment Room:
131 sq/ft width 11' 5" x depth 11' 6"
Office:
131 sq/ft width 11' 5" x depth 11' 6"

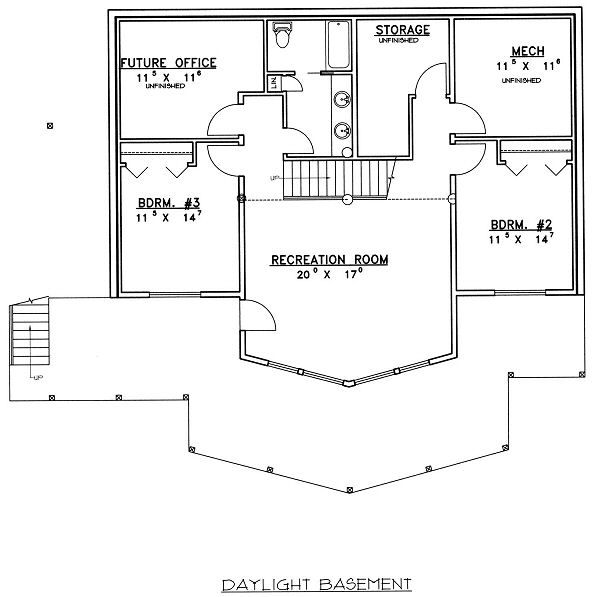

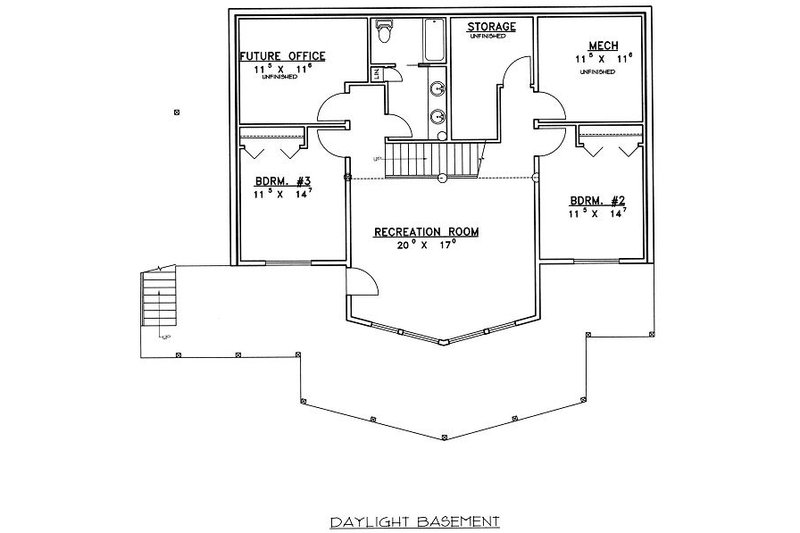

Recreation Room:
340 sq/ft width 20' x depth 17'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

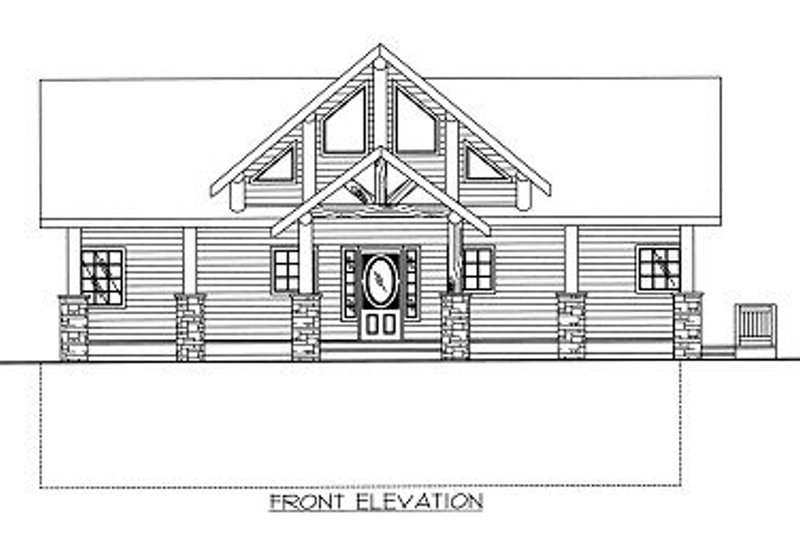

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1395.00
$1495.00
$1495.00
$1645.00
$2195.00
Foundation
$0.00
Additional Options
$195.00
$50.00
$165.00
$395.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
