Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

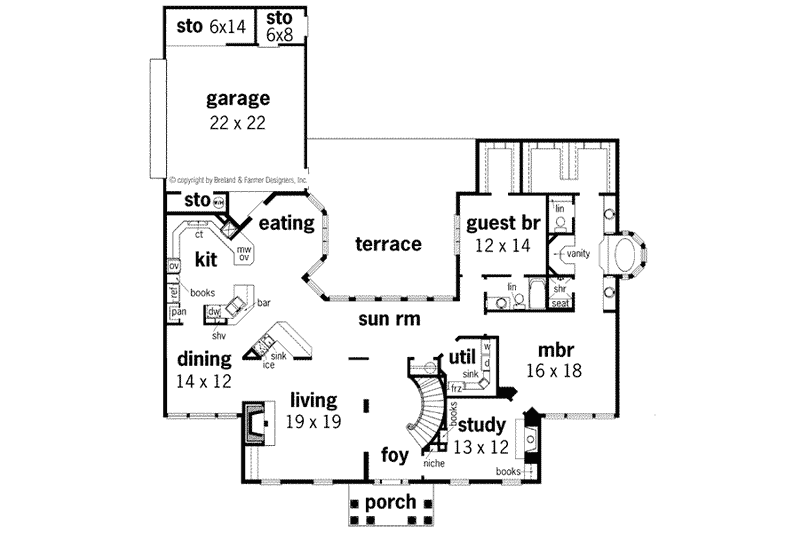

Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #45-166

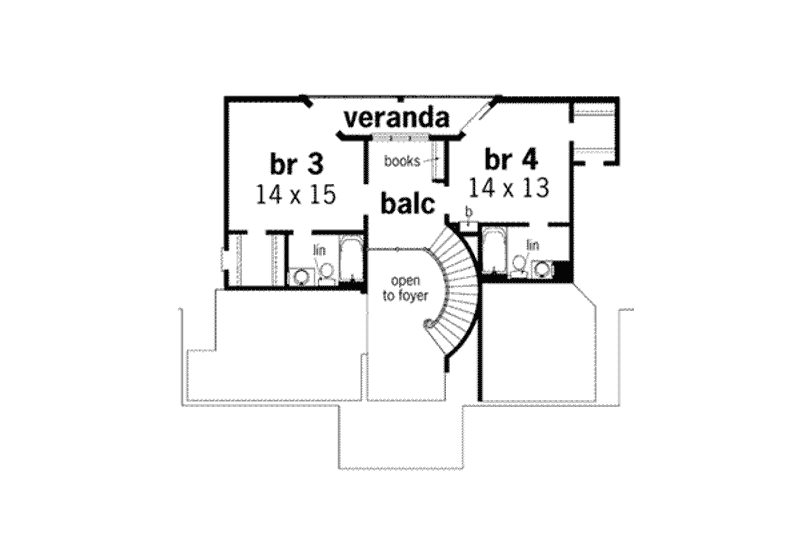

Floor Plan - Upper Floor Plan
European Floor Plan - Upper Floor Plan Plan #45-166

Full Specs & Features

Depth : 78'
Height : 32'
Width : 74'
First Floor: 2655 sq/ft
Second Floor: 629 sq/ft
Bedroom Features
Guest Suite
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Eating Bar
Breakfast Nook
Additional Room Features
Jack Jill Bath
Den Office Study Computer
Storage Area
Garage Features
Rear Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Loft Balcony
Screened Porch Sunroom
Energy Efficient Features
Energy Efficient Design

Bedroom 3:

210 sq/ft width 14' x depth 15'

Bedroom 4:

182 sq/ft width 14' x depth 13'

Dining Room:

168 sq/ft width 14' x depth 12'


484 sq/ft width 22' x depth 22'

Guest Bedroom 1:

168 sq/ft width 12' x depth 14'

Living Room:

361 sq/ft width 19' x depth 19'

Master Bedroom:

288 sq/ft width 16' x depth 18'


156 sq/ft width 13' x depth 12'

What's Included In This Plan Set

  • Information Cover Sheet
  • Foundation Plan: Each plan is designed on a specific type of foundation. Optional foundation types may be offered. Refer to the general information listed with each plan to determine foundation type and options available.
  • Detailed Floor Plans: Complete with the window and door schedules. Electrical plans, with suggested switch, fixture and outlet locations, may be part of the floor plan or a separate drawing.
  • Exterior Views
  • Building Sections & Interior Elevations
  • Complete Construction Details
  • Complete Specifications: Specifications list the types of materials used in the construction of the home. Finish schedules are provided.
