PLAN #310-1059

Key Specs


3317
sq ft

4
Beds

3
Baths

1
Floors

0
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This wonderful ranch home features a sheltered entry and a towering brick chimney. Inside, the foyer leads to a short gallery that overlooks the living room and the formal dining area. The living room feautres a central fireplace that can be enjoyed from the dining room and a corner wet bar for entertaining. The kitchen provides plenty of room for multiple cooks and serves up casual meals to the breakfast area. A spacious recreation room and a bedroom perfect as a guest room complete the right wing. On the left, two secondary bedrooms share a full hall bath while the master suite is pampered by its own.

Floor Plans

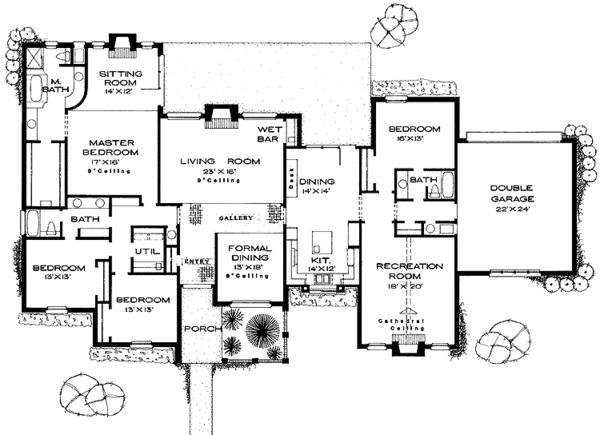

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

Full Specs & Features


Area Main Floor : 3317 sq/ft
Bedroom Features Main Floor Master Bedroom
Split Bedrooms
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Additional Room Features Family Room Keeping Room
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Outdoor Spaces Courtyard
Covered Front Porch

What's Included In This Plan Set


Fillmore & Chambers Design Group

  • Cover Sheet: Showing architectural rendering of residence
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
  • Foundation Plan and Details
  • Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • Roof: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.
  • Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
