PLAN 453-412
Photographs may show modified designs.
- Jump to:
- All (3)
- Floor plans (2)
Get Personalized Help
Key Specs
3318
sq ft
4
Beds
3.5
Baths
2
Floors
2
Garages
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern
See our Terms & Conditions and Privacy Policy.
Wow!
Cost to Build Reports
Only $1.99 Right Now
Use Code CTBSUMMER
Use Code CTBSUMMER
Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.
Get Cost To Build Report
Limit one per order.
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 453-412
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Attractive, hipped gables, a bayed window, and a full-height transom with fanlight topping the entrance distinguish this exterior design. Inside you will discover a floor plan which utilized unique angles to contour the rooms and intricate ceiling design. A sumptuous dining hall is wide open and airy, waiting off the foyer to accommodate your guests. The sunken grand room, located off the gallery, features a glowing fireplace and quick access to the outdoors via a pristine deck. A cozy library features a window seat, to the right of the foyer. Behind it is the guest suite, ensuring the ultimate in hospitality, and many extended stays. The kitchen with breakfast area also provides deck access. A pantry, and built-in desk are conveniently provided, with the laundry, and an elegant powder room located right before the garage. A second stairway is found by the pantry. Upstairs are two family bedrooms, the master suite, and a bonus room.
Floor Plans

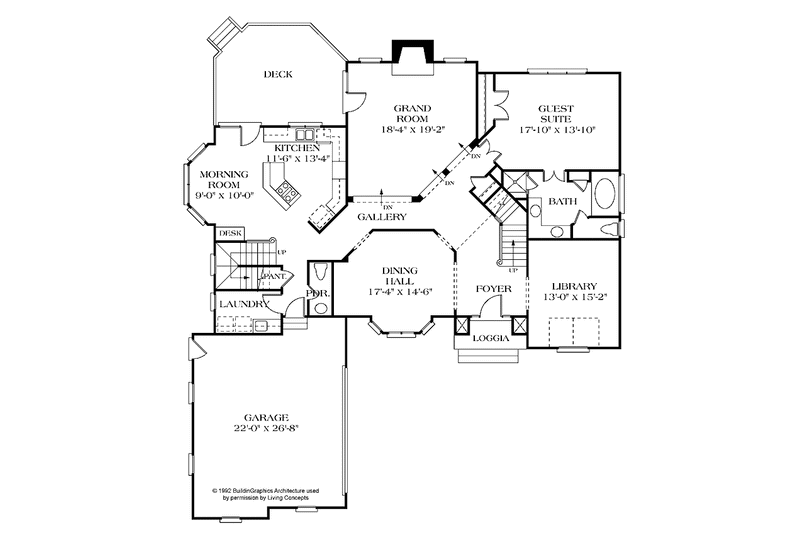

Floor Plan - Main Floor

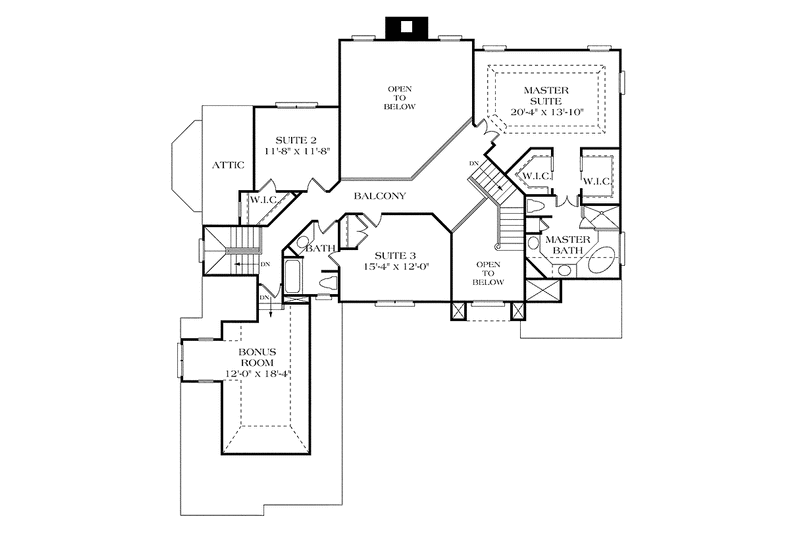

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 69' 6"
Height : 37'
Width : 63' 6"
Area
Bonus: 323 sq/ft
First Floor: 2084 sq/ft
Second Floor: 1234 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 9:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Guest Suite
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Great Room Living Room
Loft
Main Floor Laundry
Storage Area
Garage Features
Side Entry Garage
Outdoor Spaces
Balcony
Deck
Rooms
Bedroom 2:
136 sq/ft width 11' 8" x depth 11' 8"
Bedroom 3:
183 sq/ft width 15' 4" x depth 12'
Bonus Room - Finished:
219 sq/ft width 12' x depth 18' 4"
Breakfast Room:
90 sq/ft width 9' x depth 10'
Dining Room:
251 sq/ft width 17' 4" x depth 14' 6"
Garage:
586 sq/ft width 22' x depth 26' 8"
Grand Room:
351 sq/ft width 18' 4" x depth 19' 2"
Kitchen:
153 sq/ft width 11' 6" x depth 13' 4"
Library - Upper:
197 sq/ft width 13' x depth 15' 2"
Master Bedroom:
281 sq/ft width 20' 4" x depth 13' 10"
What's Included In This Plan Set
This plan typically includes:Plans are typically drawn to ¼” scale and include:
» See important
information before purchasing.
- Foundation Plan(s): Dimensioned and detailed foundation plan (type as listed on home plan description). Typical foundation details, wall sections, and cornice details necessary for construction.
- Floor Plan(s): Dimensioned and detailed floor plans
- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Building Section(s): Shows the relationship between different levels, wall heights, and the overall building volume. May include details like foundation, framing, insulation, and finishes.
- Electrical Plan(s): Separate electrical plan (may be shown on floor plans in some cases). Shows the location of lights, receptacles, switches, etc.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Framing Detail(s): Framing plans (framing may be shown on floor plans in some cases.) If included, the framing layout is intended to be a suggested layout only. Design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.
Questions? Call 1-800-447-0027
Plan Set
PDF Set:
$1317.50
$1317.50
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set:
$1317.50
$1317.50
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set:
$2635.00
$2635.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Crawlspace:
$0.00
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Framing
Wood 2x4:
$0.00
$0.00
Wood 2x4 Exterior Walls
Additional Options
Additional Construction Sets:
$51.00
$51.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$140.25
$140.25
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$335.75
$335.75
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$33.15
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$140.25
$140.25
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
$42.50
$42.50
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
