PLAN 929-286
Key Specs
3352
sq ft
4
Beds
3.5
Baths
2
Floors
2
Garages
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Questions?
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 929-286
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Plan Description
From the two-story foyer with a Palladian clerestory window and graceful
stairway to the large great room with a cathedral ceiling and curved balcony,
impressive spaces prevail in this open plan. A columned opening from the great
room introduces the spacious family kitchen with a center island and
breakfast bay. The master suite, privately located at the opposite end of the
first floor, features a sitting bay, an extra-large walk-in closet, and a bath

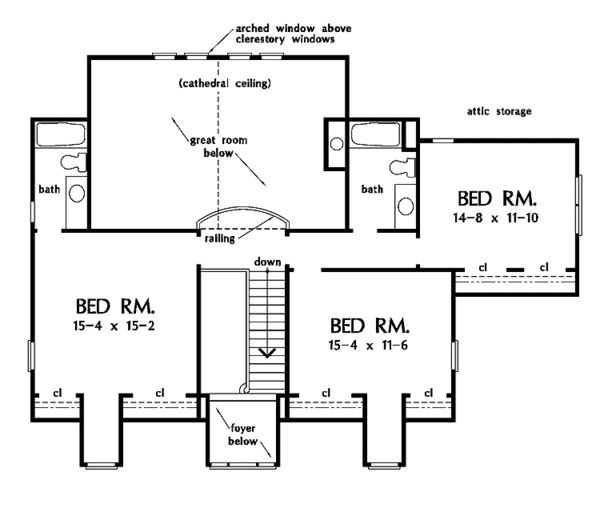

with every possible luxury. Three bedrooms and two full baths make up the

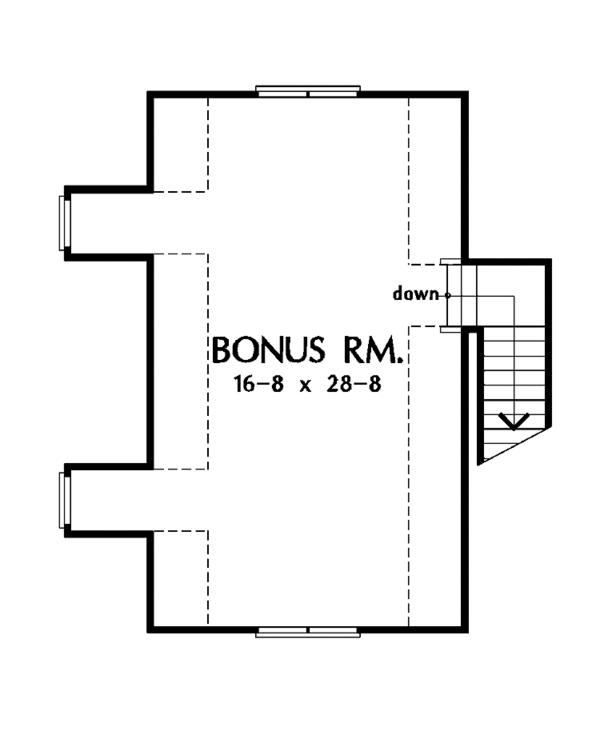

second floor, perfect for friends and family. A bonus room and attic storage
offer expansion opportunities for the future.
