PLAN #320-621

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

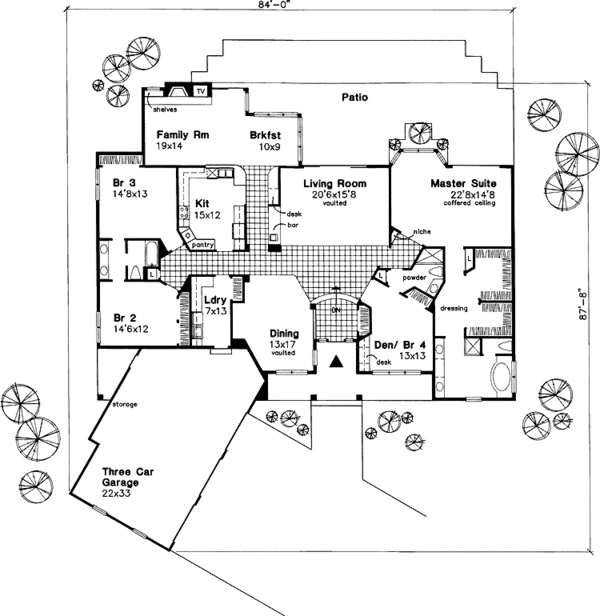

Floor Plan - Main Floor Plan
Country Floor Plan - Main Floor Plan Plan #320-621

Full Specs & Features

Depth : 87' 8"
Width : 84'
First Floor: 3381 sq/ft
Bedroom Features
Split Bedrooms
Walk In Closet
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Jack Jill Bath
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Master Sitting Area
Vaulted / Cathedral Ceilings
Outdoor Spaces
Covered Front Porch

Bedroom 2:

174 sq/ft width 14' 6" x depth 12'

Bedroom 3:

190 sq/ft width 14' 8" x depth 13'

Bedroom 4:

169 sq/ft width 13' x depth 13'

Breakfast Room:

90 sq/ft width 10' x depth 9'

Dining Room:

221 sq/ft width 13' x depth 17'


726 sq/ft width 22' x depth 33'

Gathering Room:

266 sq/ft width 19' x depth 14'


180 sq/ft width 15' x depth 12'

Laundry Room:

91 sq/ft width 7' x depth 13'

Living Room:

321 sq/ft width 20' 6" x depth 15' 8"

Master Bedroom:

332 sq/ft width 22' 8" x depth 14' 8"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
Reproducible Set :
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Single Set :
One printed set for bidding purposes only. Not a legal building set for construction.
Ideal for level lot, single layer concrete poured directly on grade.
Wood 2x6:
Wood 2x6
Additional Options
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
