PLAN #417-505

Key Specs


3393
sq ft

5
Beds

3.5
Baths

2
Floors

3
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


The word tradition epitomizes what this design is all about, except for one thing: this design fully utilizes modern livability. Formal dining and living areas, both with bay windows, flank the front entry; the family room opens up into fireplace and back-yard views. The U-shaped kitchen has a work island and a pass-through to the outside. Nearby, the spacious breakfast room provides access to the covered porch--you'll find this same access in the bedroom/den. The master bedroom, entered through double doors, is situated on the other side of the house and comes complete with a spa tub, a walk-in closet and a solarium. Upstairs, greet the kids with three bedrooms and their own personal living space. There's even an upstairs deck!

Floor Plans

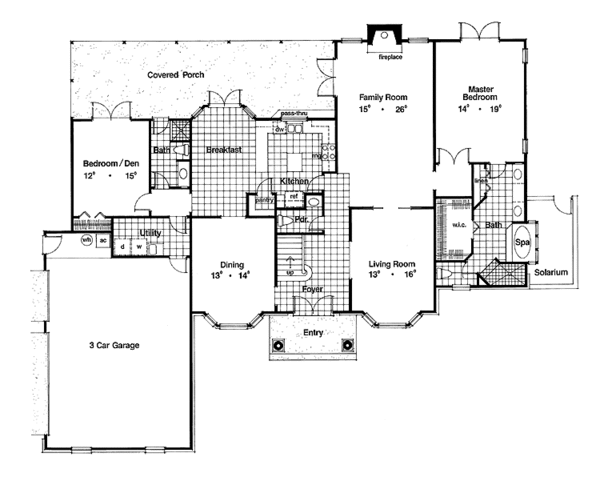

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

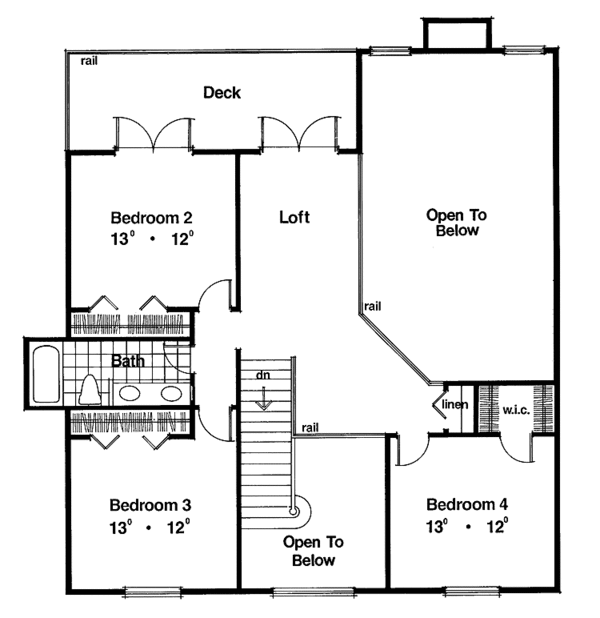

Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan

Full Specs & Features


Area Garage : 750 sq/ft
Main Floor : 2422 sq/ft
Patios : 514 sq/ft
Porch : 84 sq/ft
Upper Floor : 971 sq/ft
Bedroom Features Split Bedrooms
Walk In Closet
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features Kitchen Island
Breakfast Nook
Additional Room Features Den Office Study Computer
Family Room Keeping Room
Outdoor Spaces Covered Front Porch
Covered Rear Porch
Loft Balcony
Screened Porch Sunroom
Deck
