PLAN #48-426

Select Plan Set Options
What's included?
Additional Construction Sets
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Got Questions?
Got Questions? Just ask!
Hours  Mon-Fri, 6am - 5:30pm PST

PLAN #48-426

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

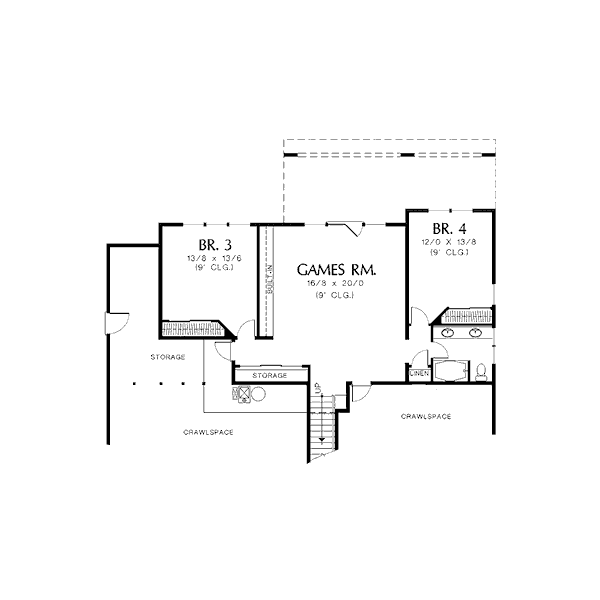

Floor Plan - Lower Floor Plan
Mediterranean Floor Plan - Lower Floor Plan Plan #48-426

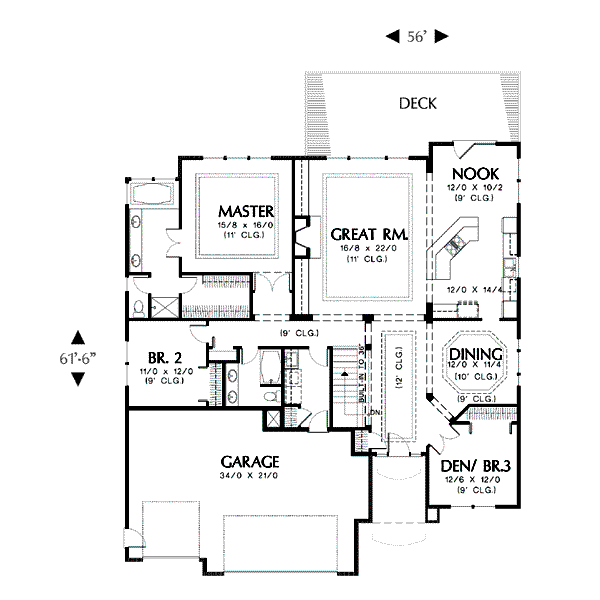

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #48-426

Full Specs & Features

Depth : 61' 6"
Height : 37'
Width : 56'
Basement Living: 1114 sq/ft
First Floor: 2300 sq/ft
Main Ceiling : 9'
Upper Ceiling Ft : 9'
Exterior Wall Framing
Framing : 2"x6"
Bedroom Features
Walk In Closet
Kitchen Features
Eating Bar
Breakfast Nook
Additional Room Features
Mud Room
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Storage Area
Garage Features
Oversized Garage
Lot Characteristics
Suited For Sloping Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Grill Deck Sundeck

Bedroom 2:

132 sq/ft width 11' x depth 12'

Bedroom 3:

184 sq/ft width 13' 8" x depth 13' 6"

Bedroom 4:

164 sq/ft width 12' x depth 13' 8"

Breakfast Room:

122 sq/ft width 12' x depth 10' 2"

Den/Office or Bedroom 1:

150 sq/ft width 12' 6" x depth 12'

Dining Room:

135 sq/ft width 12' x depth 11' 4"

Game Room:

333 sq/ft width 16' 8" x depth 20'


714 sq/ft width 34' x depth 21'

Gathering Room:

366 sq/ft width 16' 8" x depth 22'

Master Bedroom:

250 sq/ft width 15' 8" x depth 16'

What's Included In This Plan Set

  • Exterior Elevations
    In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

  • Foundation Plan
    The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations. If you choose the optional Slab foundation, the slab foundation will not be reflected in the plan sections.

  • Floor Plan(s)
    Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

  • Building Sections
    Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

  • Roof Plan
    Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

  • Notes and Details Page(s)
    Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.
» See important information before purchasing.
Plan Set
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
5 printed plan sets mailed to you.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
One printed set for bidding purposes only. Not a legal building set for construction.
Ideal for level lot, single layer concrete poured directly on grade.
Ideal for level lot, lower level of home partially or fully underground.
Additional Options
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
