PLAN #310-503

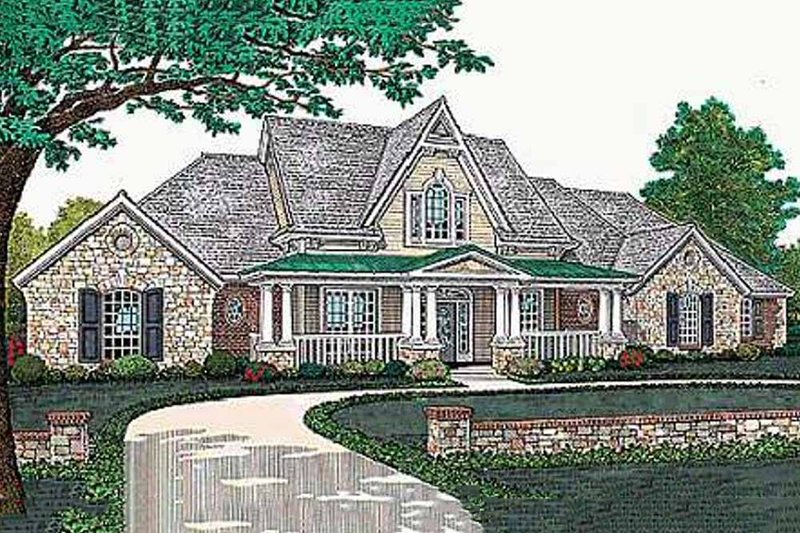

Photographs may show modified designs.

Save
Select Plan Set Options
What's included?
Additional Construction Sets
$50.00/each
Mirror Reversed Sets
$50.00
Subtotal
$1395.00
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions?
Questions?

Hours  Mon-Fri, 9 am - 8:30 pm (EST)

PLAN #310-503

Key Specs


3439
sq ft

4
Beds

3.5
Baths

1
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

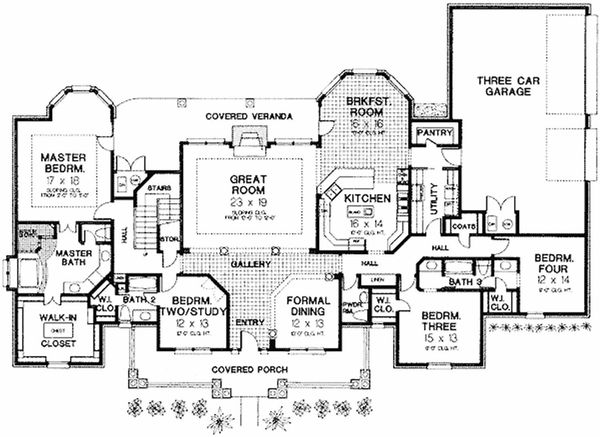

Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #310-503

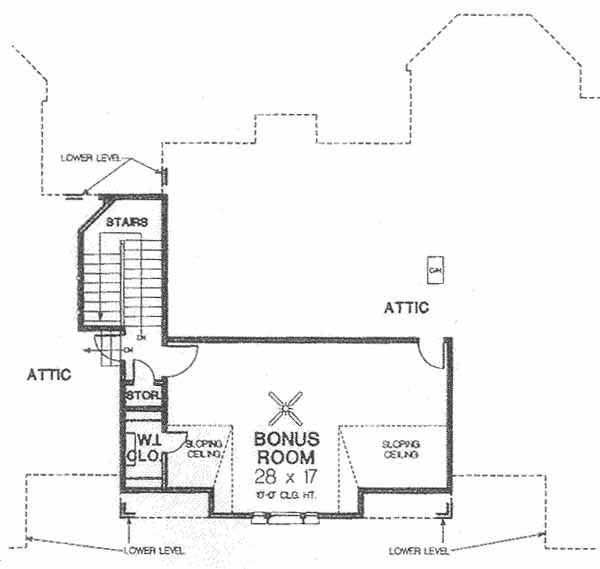

Floor Plan - Upper Floor Plan
European Floor Plan - Upper Floor Plan Plan #310-503

Full Specs & Features


Dimension
Depth : 67' 11"
Height : 29'
Width : 100'
Area
Bonus: 514 sq/ft
First Floor: 3439 sq/ft
Roof
Roof Framing : Conventional
Primary Pitch : 10:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : 2"x4"
Bedroom Features
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Master Sitting Area
Play Flex Room
Storage Area
Garage Features
Oversized Garage
Rear Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Jack & Jill Bath
Rooms

3rd BR Closet:

24 sq/ft width 4' x depth 6'

Bathroom 2:

56 sq/ft width 8' x depth 7'

Bathroom 3:

75 sq/ft width 5' x depth 15'

Bedroom 2:

156 sq/ft width 12' x depth 13'

Bedroom 2 Closet:

28 sq/ft width 4' x depth 7'

Bedroom 3:

195 sq/ft width 15' x depth 13'

Bedroom 3 Closet:

28 sq/ft width 4' x depth 7'

Bedroom 4:

168 sq/ft width 12' x depth 14'

Bedroom 4 Closet:

24 sq/ft width 4' x depth 6'

Bonus Room - Finished:

476 sq/ft width 28' x depth 17'

Breakfast Room:

256 sq/ft width 16' x depth 16'

Dining Room:

156 sq/ft width 12' x depth 13'

Foyer:

87 sq/ft width 7' x depth 12' 6"

Garage:

770 sq/ft width 22' x depth 35'

Gathering Room:

437 sq/ft width 23' x depth 19'

Hall Closet:

21 sq/ft width 6' x depth 3' 6"

Kitchen:

224 sq/ft width 16' x depth 14'

Master Bathroom:

192 sq/ft width 16' x depth 12'

Master Bedroom:

306 sq/ft width 17' x depth 18'

Master Closet:

158 sq/ft width 14' x depth 11' 4"

Porch - Front:

324 sq/ft width 36' x depth 9'

Utility Room:

88 sq/ft width 8' x depth 11'

Walk-In Closet:

28 sq/ft width 4' x depth 7'

What's Included In This Plan Set


  • Cover Sheet: Showing architectural rendering of residence
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
  • Foundation Plan and Details
  • Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • Roof: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.
  • Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
» See important information before purchasing.

Plan Set

5 Copy Set :
$1395.00
5 printed plan sets mailed to you.
8 Copy Set :
$1535.00
8 printed plan sets mailed to you.
PDF Set :
$1685.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1685.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Single Set :
$1340.00
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Additional Construction Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
