PLAN #84-620

Key Specs


3462
sq ft

4
Beds

3.5
Baths

2
Floors

3
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Designed for executives with discriminating taste, this plan features a dining room sized for entertaining. A kitchen perfect for any foodie, elegant library, & a niche designed for a grand piano (under the stairs). Imagine dinner parties w/piano playing & grill going strong out on the oversized porch. A large master suite & guest bedroom on the lower floor & 2 bedrooms on the upper floor give each occupant a private space to sleep. The pool table sized gameroom has a deck for watching the sunset. Stone detailing on special eyebrow arches & a sophisticated feel to this elegant French elevation.

Floor Plans

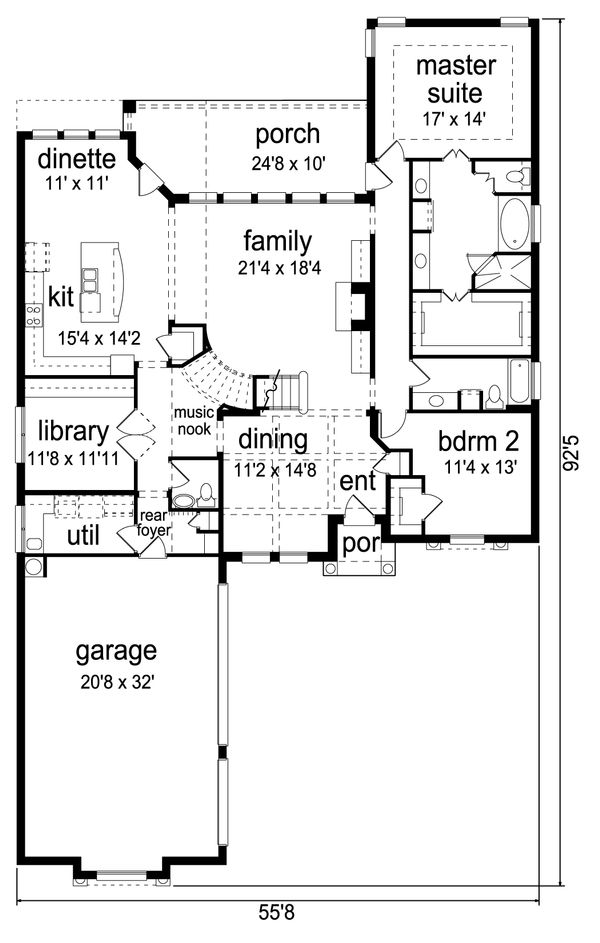

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

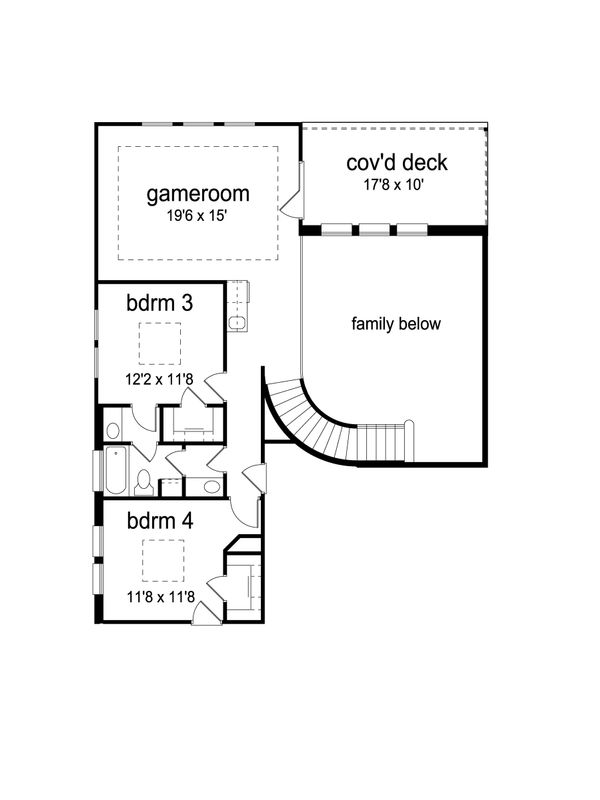

Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan

Full Specs & Features


Dimension Depth : 93'
Height : 35'
Width : 56'
Area Decks : 175 sq/ft
Garage : 750 sq/ft
Main Floor : 2552 sq/ft
Porch : 275 sq/ft
Upper Floor : 910 sq/ft
Ceiling Ceiling Details : 11' tier in master 8'6" tier in bdrm 3, bdrm 4
Main Ceiling : 10'
Upper Ceiling Ft : 8'
Roof Primary Pitch : 10:12
Roof Type : hip
Exterior Wall Framing Exterior Wall Finish : Brick, stone, stucco
Framing : 2x4
Bedroom Features Teen Suite Jack Jill Bath
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features Kitchen Island
Peninsula Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features Mud Room
Family Room Keeping Room
Hobby Rec Room Game Room
Main Floor Laundry
Garage Features Side Entry Garage
Outdoor Spaces Covered Front Porch
Covered Rear Porch

What's Included In This Plan Set


Exceptional Environments, Inc.

  • FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.

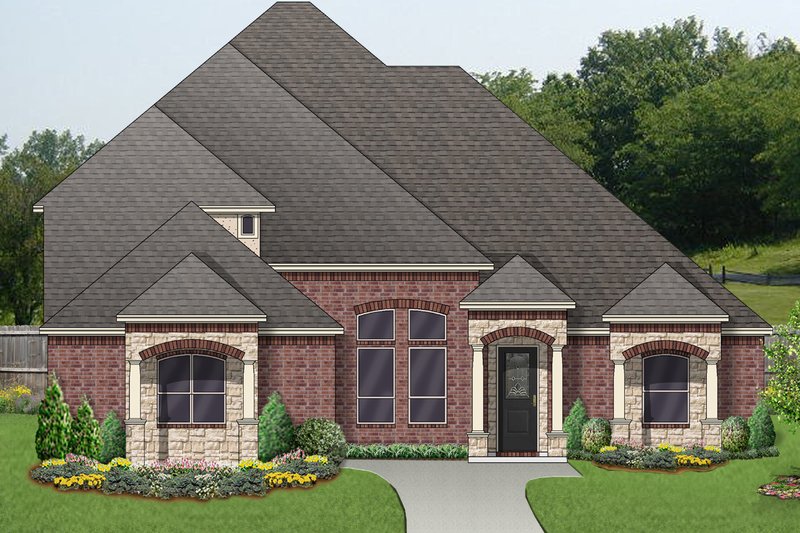

  • FRONT RENDERING: 1/4" Scale
  • FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.
  • ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
  • ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
  • STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
» See important information before purchasing.
Plan Set
5 Copy Set :
$940.00
5 printed plan sets mailed to you.
8 Copy Set :
$1025.00
8 printed plan sets mailed to you.
PDF Set :
$1145.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1200.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$1950.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$885.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation
Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Right-Reading Reverse :
175.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
