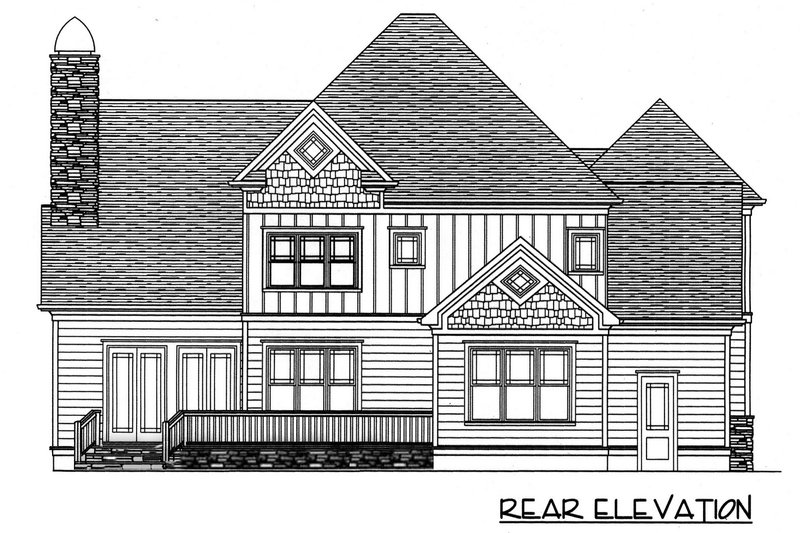

Craftsman Exterior - Rear Elevation Plan #413-107

Select Plan Set Options

What's included?

	Additional Construction Sets $90.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design $90.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $35.10 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design $180.00 Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

NOW $1620.00

You save $180.00

(10% savings)

Sale ends soon!

Best Price Guaranteed*

Also order by phone: 1-800-447-0027

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-800-447-0027

Questions?

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-447-0027

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order, plus exclusive discounts and more.

Join for FREE

Learn More

PLAN 413-107

Key Specs

3475
sq ft

4
Beds

4
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

This unique Craftsman style house features a large open floor plan with plenty of space for the whole family. The stunning family room opens onto a spacious rear terrace. Downstairs also features a gourmet kitchen with walk-in pantry, formal dining space, a home office, and guest or mother-in-law suite. Upstairs you’ll find the master suite with a sitting area, large master bath and walk-in closet, laundry room, plus a playroom and loft area. The plan also has an optional basement and a garage with spacious 3-car dimensions.

Floor Plans

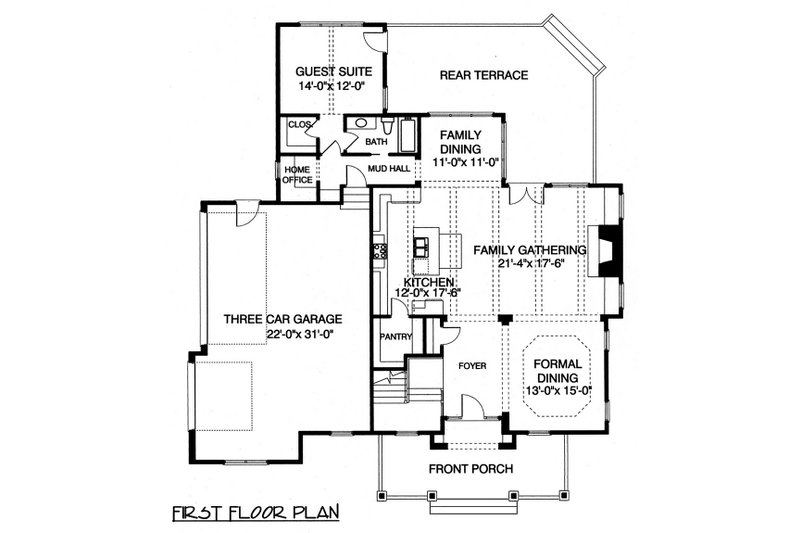

Floor Plan - Main Floor Plan

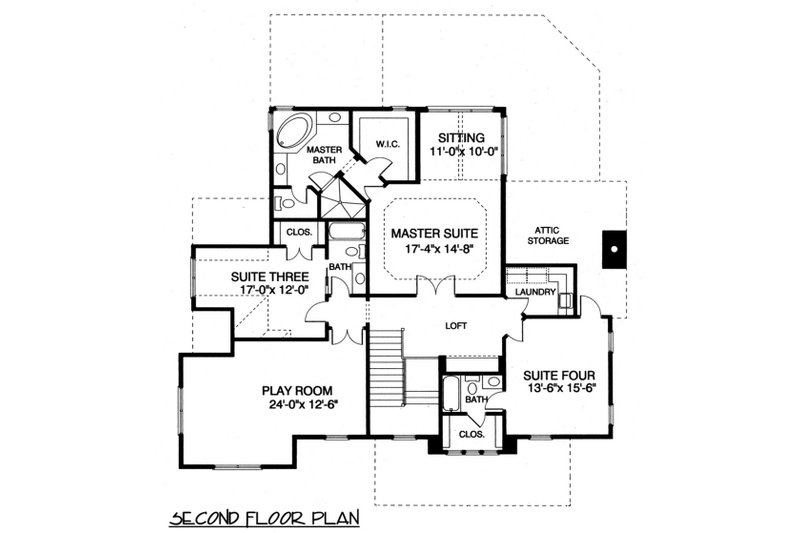

Floor Plan - Upper Floor Plan

Full Specs & Features

Dimension

Depth : 65'
Height : 36' 4"
Width : 58' 6"

Area

First Floor: 1624 sq/ft
Second Floor: 1851 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 12:12

Exterior Wall Framing

Framing : 2"x4"

Bedroom Features

Guest Suite
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Loft
Master Sitting Area
Storage Area

Garage Features

Oversized Garage
Side Entry Garage

Outdoor Spaces

Balcony
Covered Front Porch

Rooms

Bedroom:

168 sq/ft width 14' x depth 12'

Bedroom 3:

204 sq/ft width 17' x depth 12'

Bedroom 4:

209 sq/ft width 13' 6" x depth 15' 6"

Dining Room:

195 sq/ft width 13' x depth 15'

Family Room:

373 sq/ft width 21' 4" x depth 17' 6"

Garage:

682 sq/ft width 22' x depth 31'

Kitchen:

210 sq/ft width 12' x depth 17' 6"

Master Suite:

254 sq/ft width 17' 4" x depth 14' 8"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
