PLAN 929-850
Key Specs
3497
sq ft
4
Beds
3.5
Baths
2
Floors
2
Garages
Cost to Build Reports Only $19.99 for a Limited Time!
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Questions?
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 929-850
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Plan Description

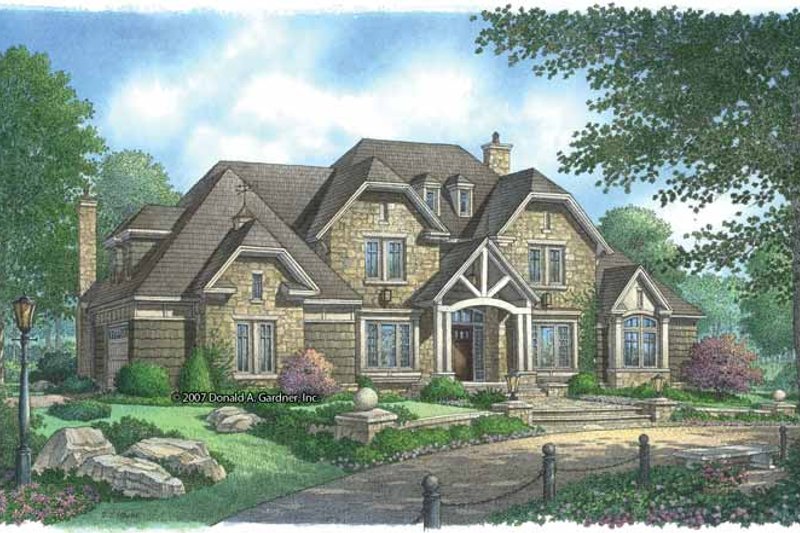

Twin clipped gables add English country flair to this family home filled with thoughtful amenities. A handy mudroom waits just inside the garage entrance, making an ideal place to drop keys and mail. Chefs will love the island kitchen with ample counter space and a huge walk-in pantry. Nearby, an e-space offers a quiet work area. In the master suite, a unique pass-through from the dressing area to the utility room eliminates the need for a laundry hamper. Dual walk-in closets and an extensive bath complete the suite. The second floor houses another laundry room, which services three family bedrooms.
Full Specs & Features
Dimension
Depth : 62'
Height : 34' 6"
Width : 79' 2"
Height : 34' 6"
Width : 79' 2"
Area
Bonus: 477 sq/ft height 10'

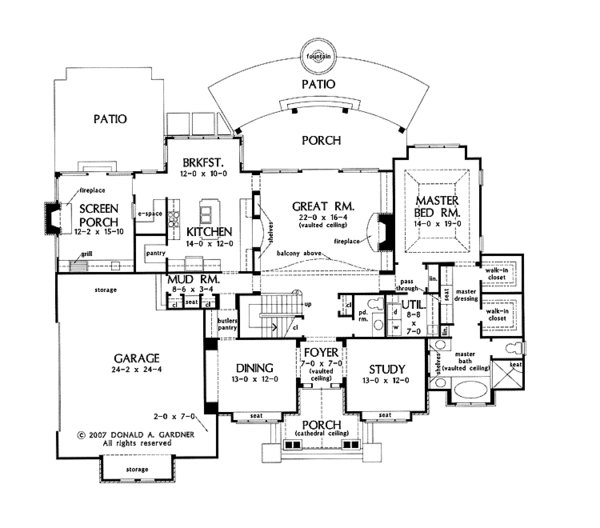

First Floor: 2351 sq/ft height 10'
Garage: 780 sq/ft height 10'
Porch: 587 sq/ft

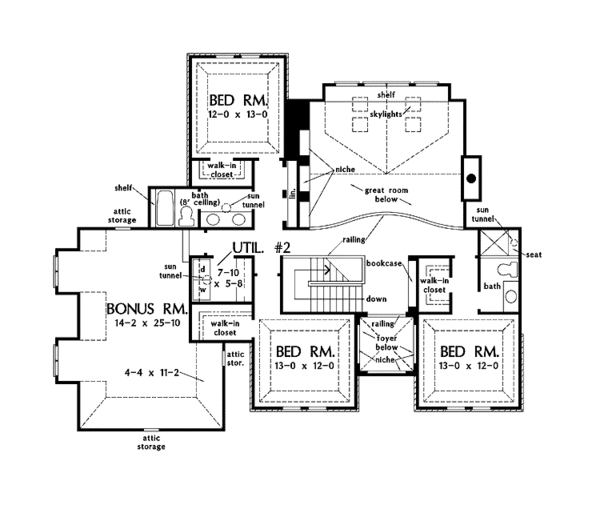

Second Floor: 1140 sq/ft height 9'
First Floor: 2351 sq/ft height 10'
Garage: 780 sq/ft height 10'
Porch: 587 sq/ft
Second Floor: 1140 sq/ft height 9'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 196' 5"
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle/Stone
Framing : Wood - 2x4
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchen Island
Additional Room Features
Den Office Study Computer
Great Room Living Room
Mud Room
Storage Area
Sunroom
Unfinished Future Space
Great Room Living Room
Mud Room
Storage Area
Sunroom
Unfinished Future Space
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
Screened Porch
Covered Front Porch
Covered Rear Porch
Screened Porch
Rooms
Bedroom 2:
156 sq/ft width 12' x depth 13'
Bedroom 3:
156 sq/ft width 13' x depth 12'
Bedroom 4:
156 sq/ft width 13' x depth 12'
Bonus Room - Finished:
158 sq/ft width 14' 2" x depth 11' 2"
Breakfast:
120 sq/ft width 12' x depth 10'
Dining Room:
156 sq/ft width 13' x depth 12'
Foyer:
49 sq/ft width 7' x depth 7'
Garage:
588 sq/ft width 24' 2" x depth 24' 4"
Great Room:
359 sq/ft width 22' x depth 16' 4"
Kitchen:
168 sq/ft width 14' x depth 12'
Master Bedroom:
266 sq/ft width 14' x depth 19'
Mud Room:
28 sq/ft width 8' 6" x depth 3' 4"
Porch - Screened:
192 sq/ft width 12' 2" x depth 15' 10"
Study:
156 sq/ft width 13' x depth 12'
Utility Room:
60 sq/ft width 8' 8" x depth 7'
Utility Room:
44 sq/ft width 7' 10" x depth 5' 8"
What's Included In This Plan Set
Donald A. Gardner typically charges $100.00 to review plan changes and prepare an estimate for your modifications.
However, for a limited time, we're cutting that in half to only $49.00! This fee can be applied to your plan modifications once you move forward with the service. Please call if you would like to order a Plan Modification quote from the Donald A. Gardner Plan Collection.
Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.
- Cover Sheet - A rendering of the front exterior of the house.
- Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
- Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
- Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
- Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
- Door and window schedules - Sizes, quantities and descriptions of all doors and windows shown on the plan.
- Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
- Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
- Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
- Each plan is designed to be consistent with CABO One and Two Family Dwelling Code or the International Residential Code in effect at the time the plan was created. Modifications may be necessary to meet applicable building codes, ordinances, local climatic, and geographical design criteria. Consult a builder, architect or other construction professional as necessary. Manufacturer instructions should be followed for all materials, appliances, and systems. Heating/air conditioning layouts, plumbing pipe layouts, and electrical wiring layouts are not included. Consult a local mechanical contractor for systems suitable for local climate conditions.
Questions? Call 1-800-447-0027
Plan Set
| PDF Set
: $1495.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Reproducible Set
: $1495.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| 5 Copy Set
: $1595.00 |
5 printed plan sets mailed to you. |
| 8 Copy Set
: $1645.00 |
8 printed plan sets mailed to you. |
| CAD Set
: $2990.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
| Study Set
: $1295.00 |
One electronic set for bidding purposes only. Not a legal building set for construction. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Basement: $345.00 |
Ideal for level lot, lower level of home partially or fully underground. |
| Slab: $345.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
| Wood 2x6: $345.00 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse
: $200.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets
: $60.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design
: $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design
: $200.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Material List
: $100.00 |
A list of building supplies needed to construct the infrastructure of your new house. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
