PLAN #1017-92

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

Note: First story walls are constructed of concrete block; upper stories are 2 x 8 wood-framed.

Floor Plans

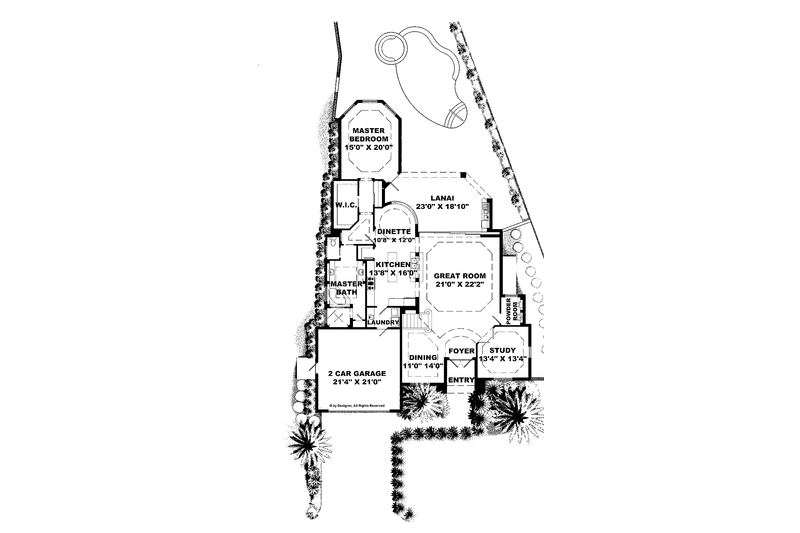

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #1017-92

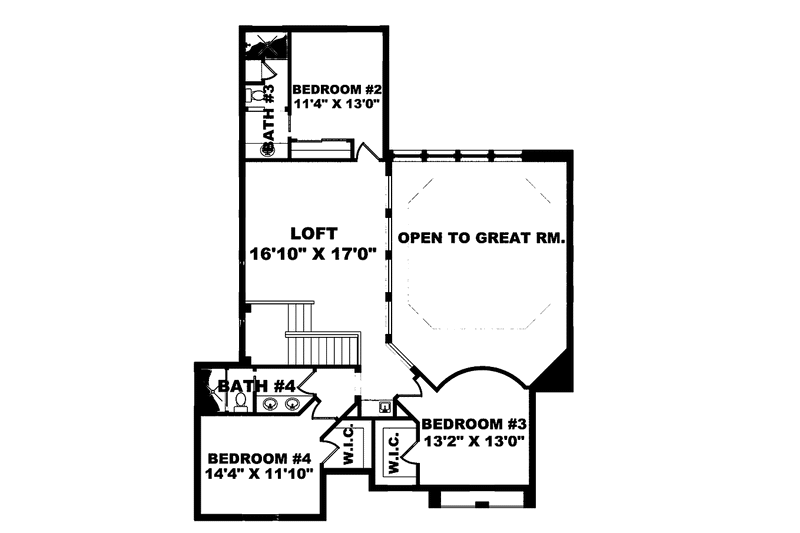

Floor Plan - Upper Floor Plan
Mediterranean Floor Plan - Upper Floor Plan Plan #1017-92

Full Specs & Features

Dimension Depth : 81' 4"
Height : 33' 1"
Width : 56' 2"
Area Main Floor : 2227 sq/ft
Upper Floor : 1289 sq/ft
Bedroom Features Main Floor Master Bedroom
Formal Dining Room
Additional Room Features Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Outdoor Spaces Loft Balcony
Bedroom 2 147 sq/ft width 11' 4" x depth 13'
Bedroom 3 171 sq/ft width 13' 2" x depth 13'
Bedroom 4 169 sq/ft width 14' 4" x depth 11' 10"
Dinette 128 sq/ft width 10' 8" x depth 12'
Dining Room 154 sq/ft width 11' x depth 14'
Garage 447 sq/ft width 21' 4" x depth 21'
Great Room 465 sq/ft width 21' x depth 22' 2"
Kitchen 218 sq/ft width 13' 8" x depth 16'
Lanai 433 sq/ft width 23' x depth 18' 10"
Loft 286 sq/ft width 16' 10" x depth 17'
Master Bedroom 300 sq/ft width 15' x depth 20'
Study 177 sq/ft width 13' 4" x depth 13' 4"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
