PLAN #1054-13

Key Specs


3531
sq ft

4
Beds

3
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

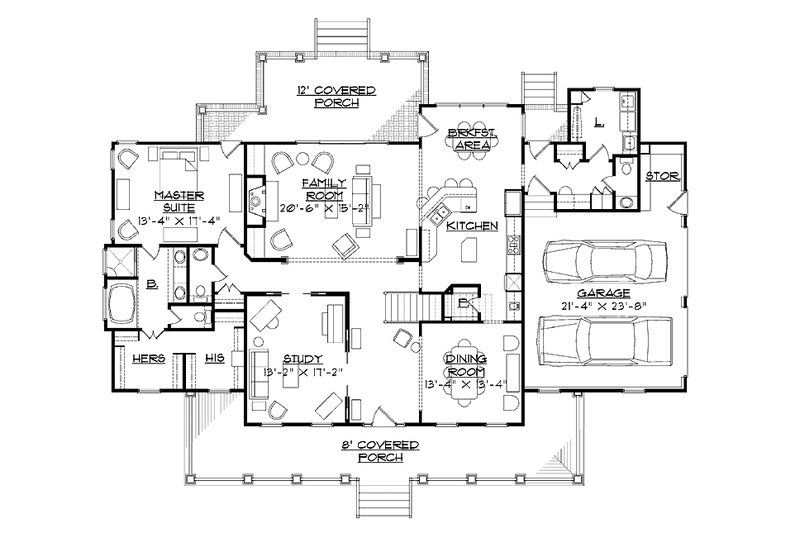

Floor Plan - Main Floor Plan
Southern Floor Plan - Main Floor Plan Plan #1054-13

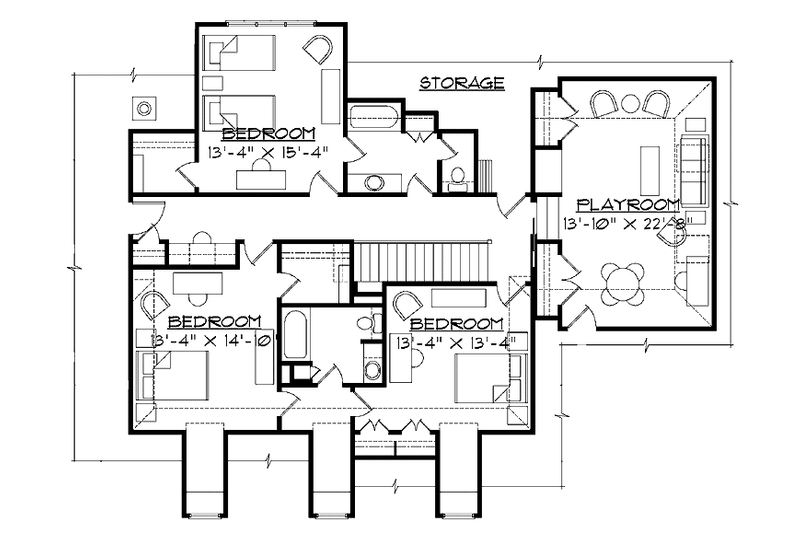

Floor Plan - Upper Floor Plan
Southern Floor Plan - Upper Floor Plan Plan #1054-13

Full Specs & Features


Dimension
Depth : 57' 11"
Height : 34' 4"
Width : 77' 8"
Area
Bonus: 386 sq/ft
First Floor: 2287 sq/ft height 10'
Garage: 587 sq/ft
Porch: 791 sq/ft
Second Floor: 1244 sq/ft height 10'
Roof
Roof Framing : Conventional
Primary Pitch : 10:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Fireplace
Formal Dining Room
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Mud Room
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Storage Area
Unfinished Future Space
Open Floor Plan
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms

Bathroom 2:

93 sq/ft width 9' 4" x depth 10'

Bathroom 3:

95 sq/ft width 11' 7" x depth 8' 3"

Bedroom 2:

186 sq/ft width 13' 4" x depth 14'

Bedroom 2 Closet:

34 sq/ft width 5' 6" x depth 6' 3"

Bedroom 3:

177 sq/ft width 13' 4" x depth 13' 4"

Bedroom 3 Closet:

15 sq/ft width 7' 6" x depth 2'

Bedroom 4:

204 sq/ft width 13' 4" x depth 15' 4"

Bedroom 4 Closet:

31 sq/ft width 5' 8" x depth 5' 6"

Breakfast Area:

99 sq/ft width 13' 4" x depth 7' 6"

Dining Room:

177 sq/ft width 13' 4" x depth 13' 4"

Family Room:

310 sq/ft width 20' 6" x depth 15' 2"

Foyer:

157 sq/ft width 9' 3" x depth 17'

Garage:

504 sq/ft width 23' 8" x depth 21' 4"

Garage Storage:

51 sq/ft width 5' 9" x depth 9'

Half Bathroom:

21 sq/ft width 3' x depth 7' 4"

Kitchen:

276 sq/ft width 13' 4" x depth 20' 9"

Kitchen Island:

31 sq/ft width 3' 4" x depth 9' 4"

Laundry Room:

78 sq/ft width 8' 8" x depth 9'

Master Bathroom:

148 sq/ft width 10' 7" x depth 14'

Master Bedroom:

231 sq/ft width 17' 4" x depth 13' 4"

Master Closet:

132 sq/ft width 17' 3" x depth 7' 8"

Mud Room:

73 sq/ft width 11' 8" x depth 6' 4"

Pantry:

19 sq/ft width 4' 5" x depth 4' 5"

Play Room:

313 sq/ft width 13' 10" x depth 22' 8"

Powder Room:

19 sq/ft width 3' x depth 6' 7"

Study:

228 sq/ft width 13' 5" x depth 17'

Wet Bar:

5 sq/ft width 2' x depth 2' 8"
