PLAN 929-796
Key Specs
3563
sq ft
5
Beds
4
Baths
2
Floors
2
Garages
Cost to Build Reports Only $19.99 for a Limited Time!
This report will provide you cost estimates based on location and building materials.
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
PLAN 929-796
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Plan Description
Full Specs & Features
Height : 32' 8"
Width : 48'
Garage: 540 sq/ft
Porch: 138 sq/ft
Second Floor: 1463 sq/ft
Storage: 548 sq/ft
Roof Framing : Conventional
Roof Type : Shingle
Framing : Wood - 2x4
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Covered Rear Porch
Bathroom 2:
42 sq/ft width 8' 6" x depth 5'
Bathroom 3:
90 sq/ft width 10' 10" x depth 8' 4"
Bathroom 4:
41 sq/ft width 8' 4" x depth 5'
Bedroom 3:
156 sq/ft width 13' x depth 12'
Bedroom 3 Closet:
16 sq/ft width 2' x depth 8' 4"
Bedroom 4:
156 sq/ft width 12' 8" x depth 12' 4"
Bedroom 5:
169 sq/ft width 13' x depth 13'
Bedroom 5 Closet:
21 sq/ft width 4' 4" x depth 5'
Breakfast Room:
120 sq/ft width 11' 4" x depth 10' 8"
Coat Closet:
6 sq/ft width 3' 4" x depth 2'
Dining Room:
183 sq/ft width 15' 4" x depth 12'
Foyer:
55 sq/ft width 9' 4" x depth 6'
Garage:
502 sq/ft width 22' x depth 22' 10"
Gathering Room:
323 sq/ft width 19' x depth 17'
Kitchen:
168 sq/ft width 11' 4" x depth 14' 10"
Linen Closet:
4 sq/ft width 1' 4" x depth 3' 4"
Master Bathroom:
130 sq/ft width 14' x depth 9' 4"
Master Bedroom:
242 sq/ft width 14' x depth 17' 4"
Master Closet:
25 sq/ft width 5' x depth 5'
Master Closet Two:
36 sq/ft width 5' x depth 7' 4"
Pantry:
11 sq/ft width 5' 8" x depth 2'
Porch - Front:
138 sq/ft width 23' x depth 6'
Porch - Rear:
248 sq/ft width 31' x depth 8'
Study:
169 sq/ft width 13' x depth 13'
Utility Room:
84 sq/ft width 14' x depth 6'
What's Included In This Plan Set
Donald A. Gardner typically charges $100.00 to review plan changes and prepare an estimate for your modifications.
However, for a limited time, we're cutting that in half to only $49.00! This fee can be applied to your plan modifications once you move forward with the service. Please call if you would like to order a Plan Modification quote from the Donald A. Gardner Plan Collection.
Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.
- Cover Sheet - A rendering of the front exterior of the house.
- Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

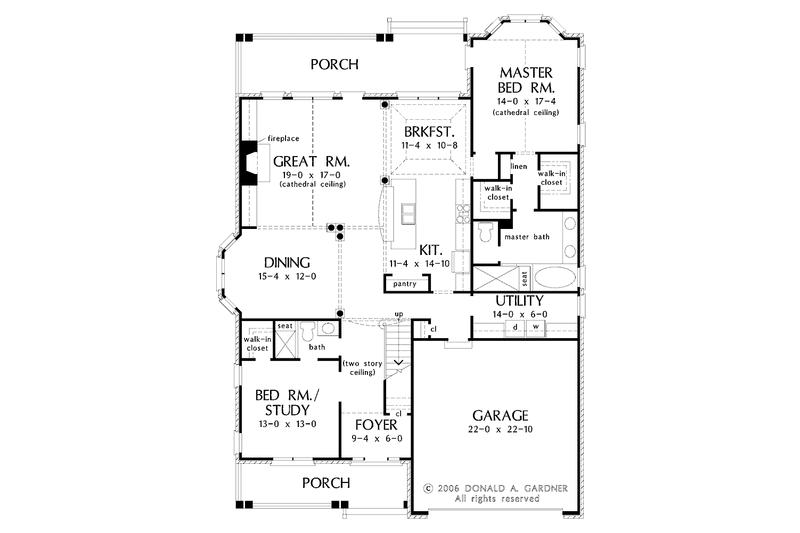

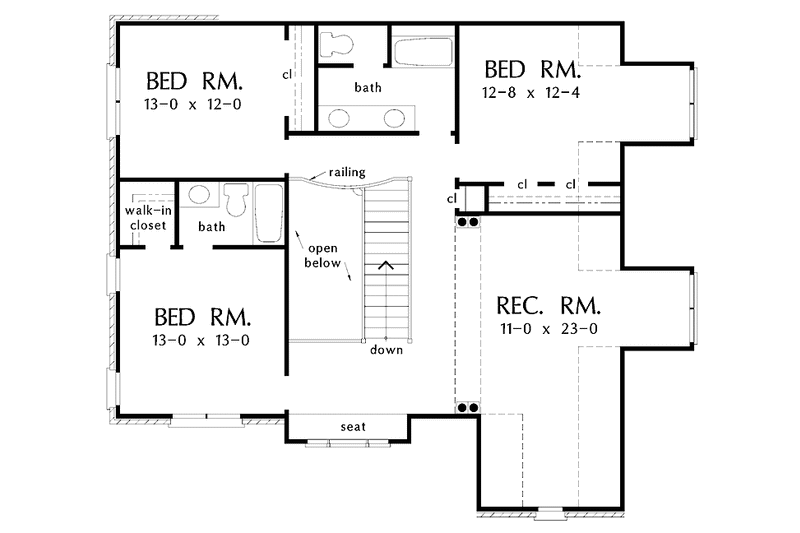

- Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
- Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
- Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
- Door and window schedules - Sizes, quantities and descriptions of all doors and windows shown on the plan.
- Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
- Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
- Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
- Each plan is designed to be consistent with CABO One and Two Family Dwelling Code or the International Residential Code in effect at the time the plan was created. Modifications may be necessary to meet applicable building codes, ordinances, local climatic, and geographical design criteria. Consult a builder, architect or other construction professional as necessary. Manufacturer instructions should be followed for all materials, appliances, and systems. Heating/air conditioning layouts, plumbing pipe layouts, and electrical wiring layouts are not included. Consult a local mechanical contractor for systems suitable for local climate conditions.
| PDF Set
: $1495.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Reproducible Set
: $1495.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| 5 Copy Set
: $1595.00 |
5 printed plan sets mailed to you. |
| 8 Copy Set
: $1645.00 |
8 printed plan sets mailed to you. |
| CAD Set
: $2990.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
| Study Set
: $1295.00 |
One electronic set for bidding purposes only. Not a legal building set for construction. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Basement: $345.00 |
Ideal for level lot, lower level of home partially or fully underground. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
Additional Options
| Additional Construction Sets
: $60.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design
: $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design
: $200.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Material List
: $100.00 |
A list of building supplies needed to construct the infrastructure of your new house. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
