PLAN #1060-6

Key Specs


3565
sq ft

3
Beds

3
Baths

1
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This ranch plan has several features like an open concept living area and two- sided fireplace that provide a contemporary feel. There a large master bedroom with a garden tub bath, as well as, a guest room that can easily function as a study or home office. The lower level has an additional bedroom and bath plus a giant family room. A optional bonus room upstairs holds endless possibilities.

Floor Plans

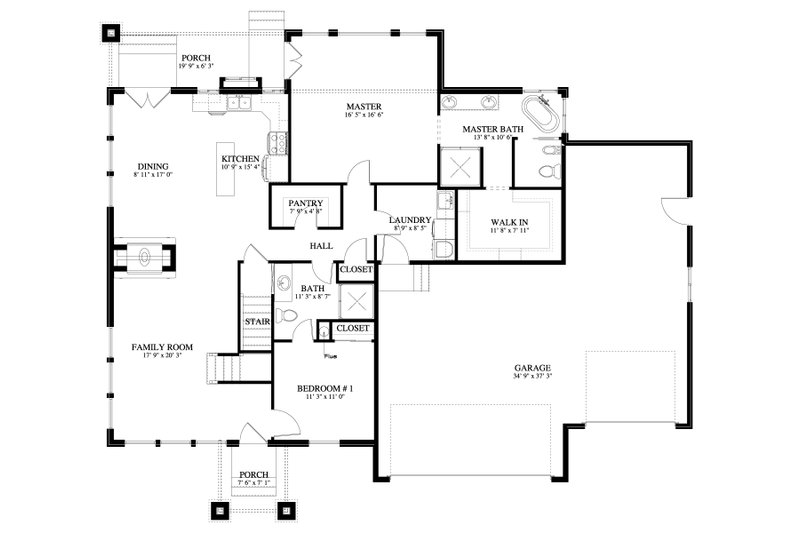

Floor Plan - Main Floor Plan
Ranch Floor Plan - Main Floor Plan Plan #1060-6

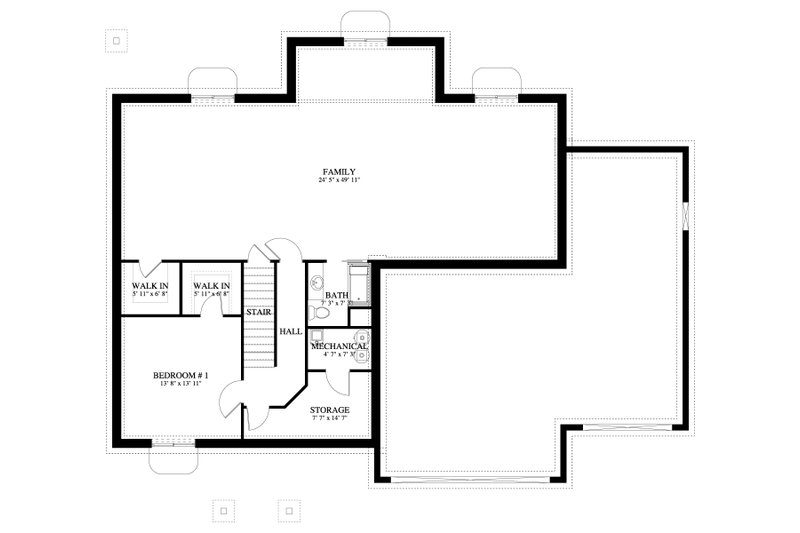

Floor Plan - Lower Floor Plan
Ranch Floor Plan - Lower Floor Plan Plan #1060-6

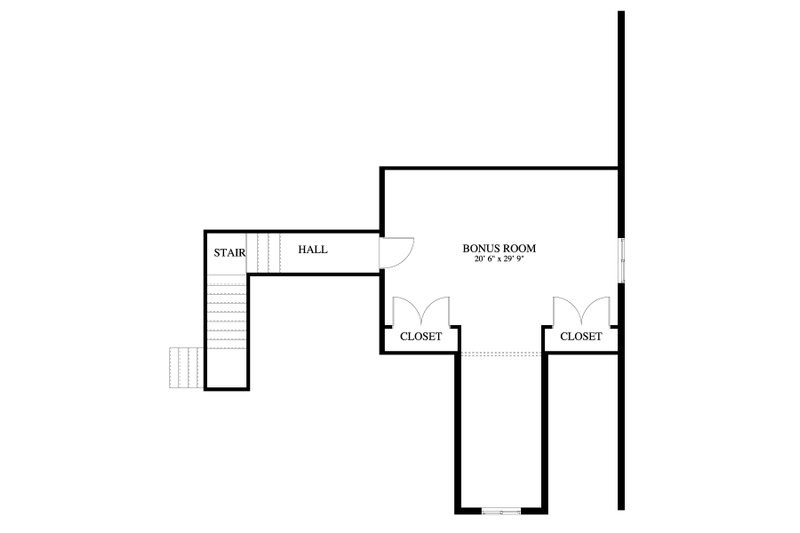

Floor Plan - Other Floor Plan
Ranch Floor Plan - Other Floor Plan Plan #1060-6

Full Specs & Features


Dimension
Depth : 51'
Height : 22' 2"
Width : 66'
Area
Basement Living: 1786 sq/ft
Bonus: 589 sq/ft
First Floor: 1779 sq/ft height 9'
Garage: 985 sq/ft
Roof
Roof Framing : Truss
Primary Pitch : 8:12
Secondary Pitch : 3:12
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Shingle/Stone
Framing : Wood - 2x6
Bedroom Features
Guest Suite
Main Floor Master Bedroom
Walk In Closet
Fireplace
Kitchen Features
Kitchen Island
Additional Room Features
Mud Room
Family Room Keeping Room
Hobby Rec Room Game Room
Main Floor Laundry
Unfinished Future Space
Garage Features
Front Entry Garage
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
Rooms

Bath 1:

94 sq/ft width 11' x depth 8' 6"

Bath 2:

53 sq/ft width 7' 4" x depth 7' 3"

Bedroom 3:

194 sq/ft width 13' 10" x depth 14'

Family Room:

956 sq/ft width 50' 1" x depth 19' 1"

Garage:

985 sq/ft width 34' 10" x depth 23' 11"

Guest Room:

121 sq/ft width 11' x depth 11'

Kitchen:

336 sq/ft width 19' 9" x depth 17'

Laundry:

84 sq/ft width 9' 10" x depth 8' 6"

Living Room:

287 sq/ft width 15' 1" x depth 19'

Master Bath:

144 sq/ft width 13' 9" x depth 10' 6"

Master Bedroom:

272 sq/ft width 16' 6" x depth 16' 6"

Master Closet:

94 sq/ft width 11' 9" x depth 8'

Optional Bonus Room:

589 sq/ft width 20' 7" x depth 16'

Pantry:

37 sq/ft width 7' 10" x depth 4' 9"

Storage:

112 sq/ft width 14' 5" x depth 7' 9"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

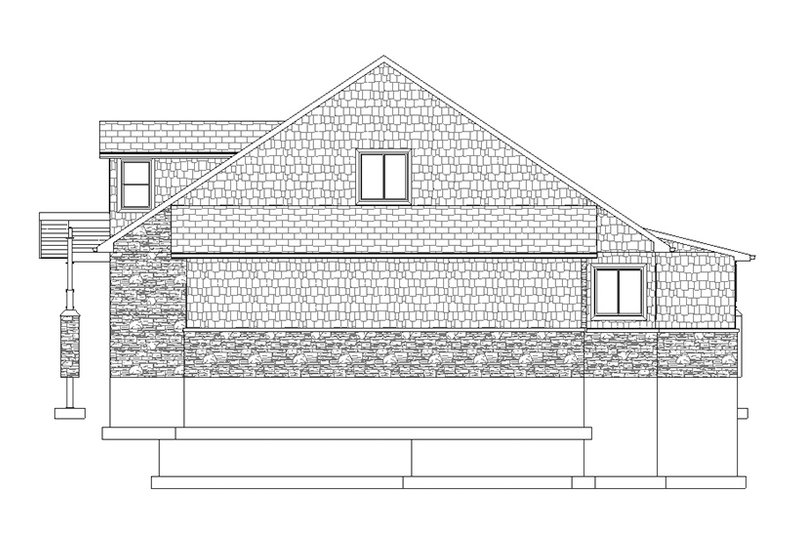

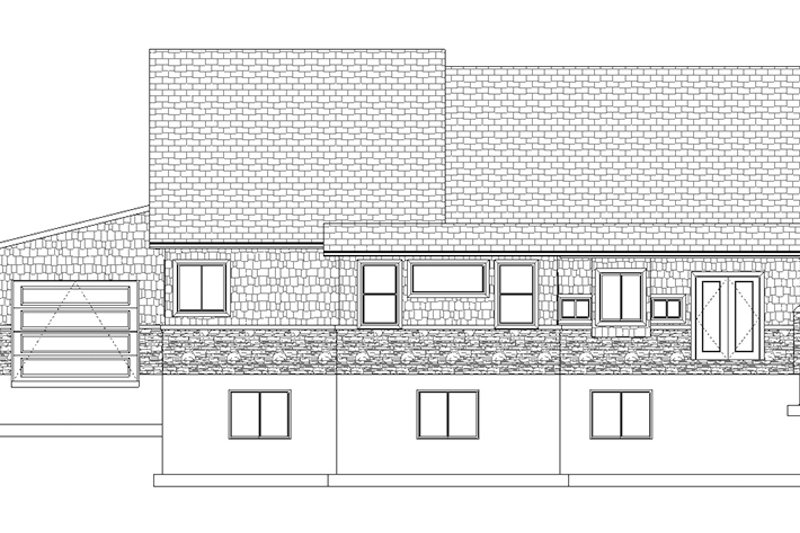

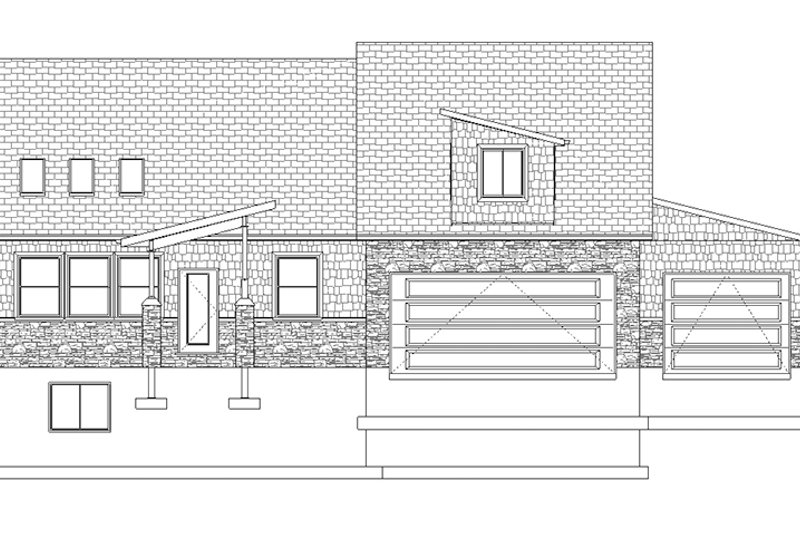

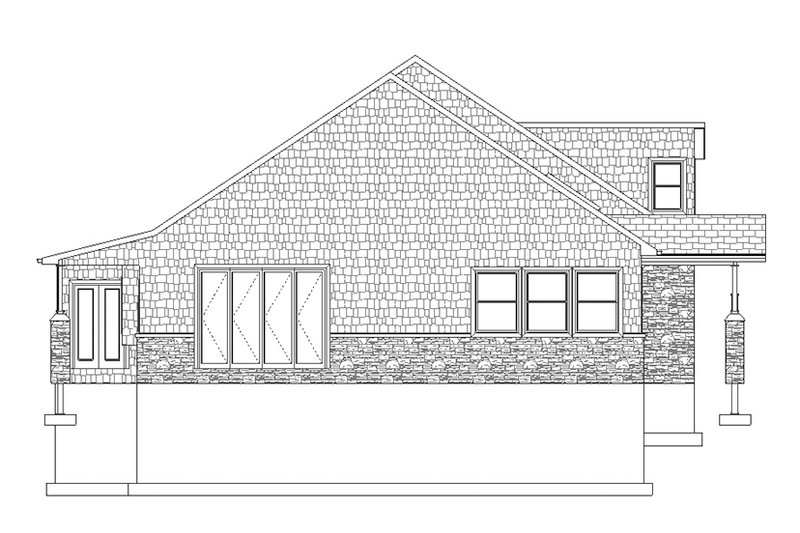

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
