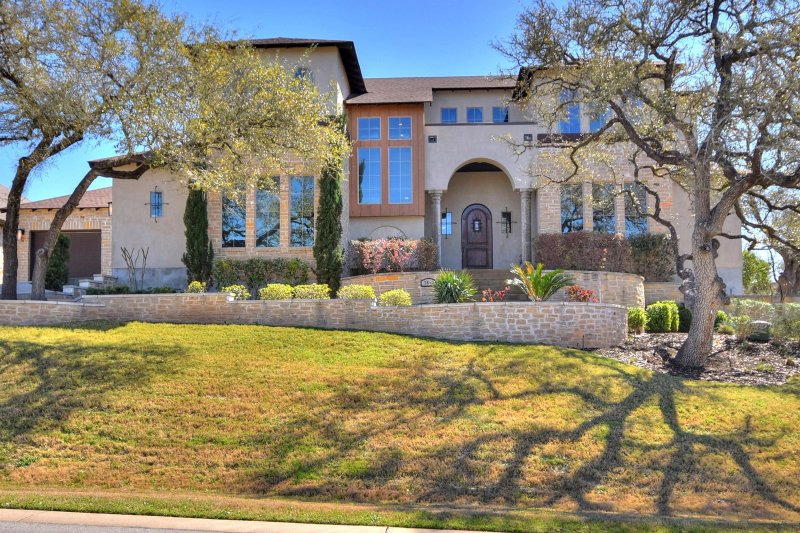

Mediterranean Exterior - Front Elevation Plan #80-221
Mediterranean Exterior - Front Elevation Plan #80-221
Mediterranean Exterior - Front Elevation Plan #80-221
Mediterranean Exterior - Rear Elevation Plan #80-221
Mediterranean Exterior - Outdoor Living Plan #80-221
Mediterranean Exterior - Outdoor Living Plan #80-221
Mediterranean Interior - Family Room Plan #80-221
Mediterranean Interior - Family Room Plan #80-221
Mediterranean Interior - Kitchen Plan #80-221
Mediterranean Interior - Kitchen Plan #80-221
Mediterranean Interior - Dining Room Plan #80-221
Mediterranean Interior - Dining Room Plan #80-221
Mediterranean Interior - Master Bedroom Plan #80-221
Mediterranean Interior - Master Bathroom Plan #80-221
Mediterranean Interior - Bedroom Plan #80-221
Mediterranean Interior - Bedroom Plan #80-221
Mediterranean Interior - Bedroom Plan #80-221
Mediterranean Interior - Bathroom Plan #80-221
Mediterranean Interior - Bathroom Plan #80-221
Mediterranean Interior - Bathroom Plan #80-221
Mediterranean Interior - Laundry Plan #80-221
Mediterranean Interior - Other Plan #80-221
Mediterranean Interior - Other Plan #80-221
Mediterranean Interior - Other Plan #80-221
Mediterranean Exterior - Front Elevation Plan #80-221
Mediterranean Exterior - Other Elevation Plan #80-221

Select Plan Set Options

What's included?
Subtotal
NOW $1161.00
You save $129.00
(10% savings)
Sale ends soon!
Also order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Questions?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 80-221

Key Specs


3585
sq ft

5
Beds

4
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This mediterranean home brings together classic design and function of today’s lifestyle. A centrally located foyer opens up into a great room. To the right, the master wing features the laundry room, dual linen closets and a study. To the left of the foyer are the stairs to the second level and the 2 car garage entry. Immediately ahead is the open concept kitchen, 2 story dining room, and great room. Beyond the kitchen, a private wing houses a one car garage and a separate guest suite. Upstairs, a large game room separates three additional bedrooms. Two bedrooms share a Jack and Jill bath, while the third shares another bath with the game room.

Floor Plans

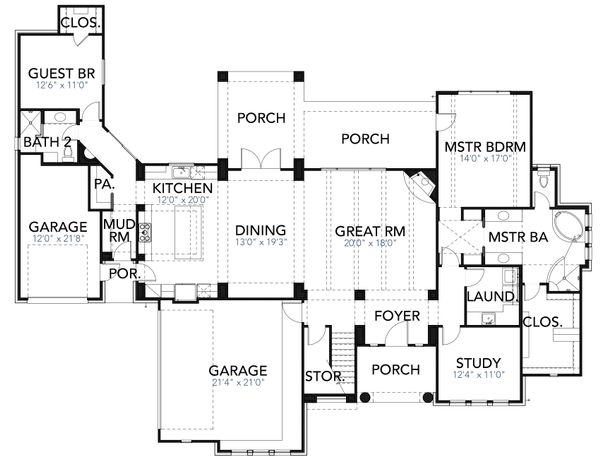

Floor Plan - Main Floor Plan

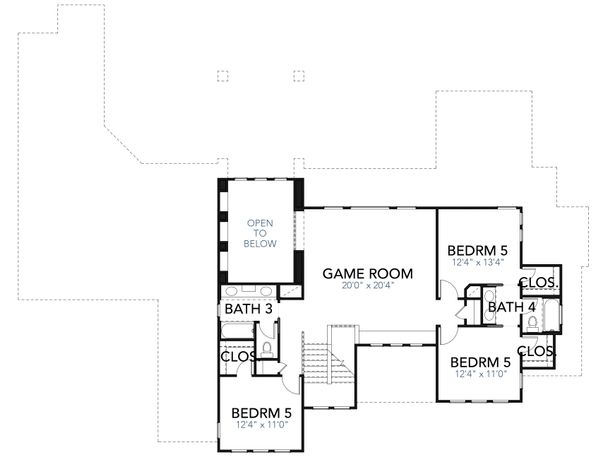

Floor Plan - Upper Floor Plan

Full Specs & Features


Dimension
Depth : 68'
Height : 27'
Width : 87'
Area
Garage : 772 sq/ft
Main Floor : 2375 sq/ft
Porch : 518 sq/ft
Upper Floor : 1210 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Garage Ceiling : 11'
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 6:12
Roof Framing : Stick
Roof Type : Concrete tile
Exterior Wall Framing
Exterior Wall Finish : Stone
Framing : 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Mud Room
Play Flex Room
Storage Area
Garage Features
Front Entry Garage
Side Entry Garage
Split Garage
Entryway
Friend S Entry
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

What's Included In This Plan Set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

PDF Set :
$1161.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$2322.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Audio Video Design :
$90.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$35.10
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
$180.00
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
