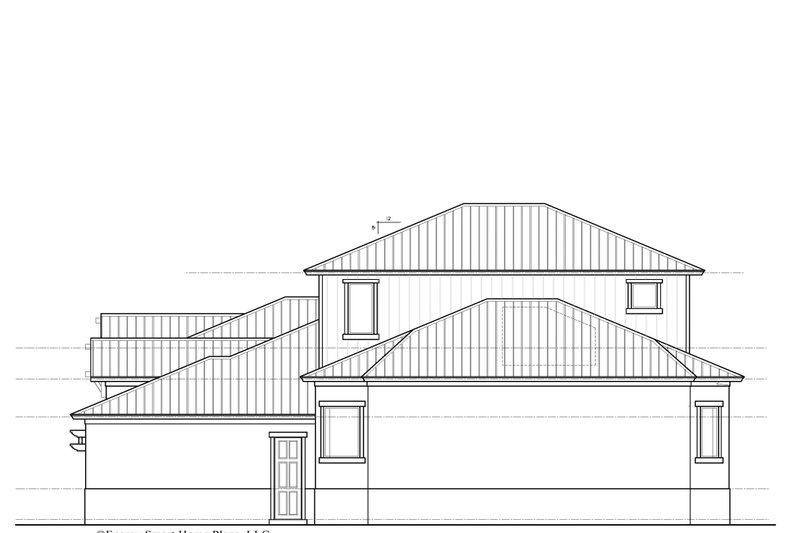

Dream House Plan - Ranch Exterior - Other Elevation Plan #938-112
Dream House Plan - Ranch Exterior - Other Elevation Plan #938-112

Key Specs


Plan Sq Ft

3620
sq ft

Plan Bedrooms

4
Beds

Plan Bathrooms

4.5
Baths

Plan Floors

2
Floors

Plan Garages

3
Garages

Select Plan Set Options

What's included?
Audio Video Design
$90.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide
$35.10
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Subtotal
NOW $2425.50
You save $269.50
(10% savings)
Sale ends soon!
Also order by phone: 1-800-447-0027
Cost-to-Build Estimates
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Get Personalized Help
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 938-112

Key Specs


Plan Sq Ft

3620
sq ft

Plan Bedrooms

4
Beds

Plan Bathrooms

4.5
Baths

Plan Floors

2
Floors

Plan Garages

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This waterfront cottage is designed to maximize outdoor living with an inviting large lanai that offers a fully equipped outdoor kitchen and a cabana pool bath to service the terrific pool and dining area complete with fire pots for night-time ambiance. The Great Room has a grand feel with its wall of built-ins and topped off with a coffered ceiling. Walls of glass bring in the gorgeous views from beyond the patio. Glass sliding doors open up the entire public space to the covered lanai. Making this home perfect for entertaining. A spacious kitchen with large island and extra large Butler’s Pantry is at the heart of the layout and is central to everything that goes on. The formal dining has pocketing glass doors that completely open up to the patio. A gracious Owner’s Suite is secluded to the rear of the home — away from the public areas. It’s luxurious bath offers all the necessary amenities. Two Guest Suites are on the opposite side of the home and each have private baths. Upstairs is an additional Guest Suite that shares a full bath with the Study/Bonus. Both have long range views, with access to a covered balcony. The expansive 3-Car Garage leaves plenty of room for a workbench, and steps up to a valet next to the laundry room with coat closet.

Full Specs & Features


Dimension
Depth : 62' 6"
Height : 27' 8"
Width : 82' 8"
Area
Decks : 677 sq/ft
Garage : 893 sq/ft
Main Floor : 2890 sq/ft
Porch : 77 sq/ft
Upper Floor : 730 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Great Room, Foyer 12' Ceiling
Main Ceiling : 10' 8"
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 5/12
Roof Framing : Truss
Roof Type : Hip
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Block
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Garage Features
Front Entry Garage
Oversized Garage
Lot Characteristics
Suited For Corner Lot
Suited For Sloping Lot
Suited For View Lot
Outdoor Spaces
Balcony
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill
Screened Porch
Wrap Around Porch
More
Additional Half Bath
Empty Nester
Jack & Jill Bath
Suited For Vacation Home
Energy Efficient Features
Energy Efficient Design

What's Included In This Plan Set


  • Cover Sheet

    The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.

  • Wall Sections

    The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.

  • Foundation Plan

    The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.

  • Second floor framing (where appropriate)

    The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.

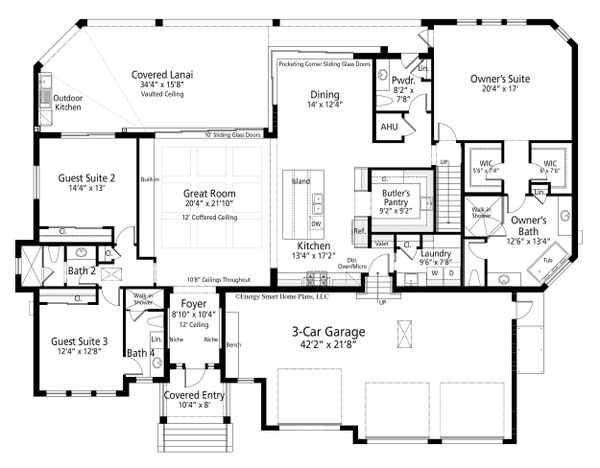

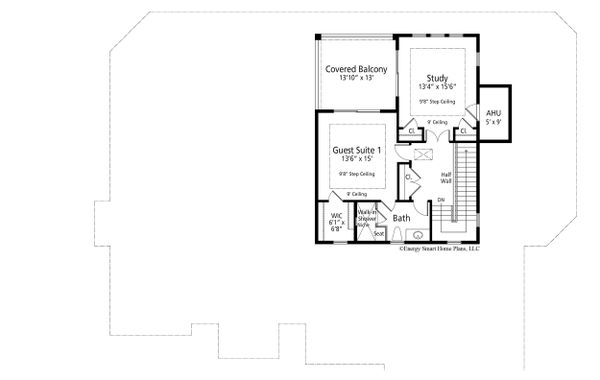

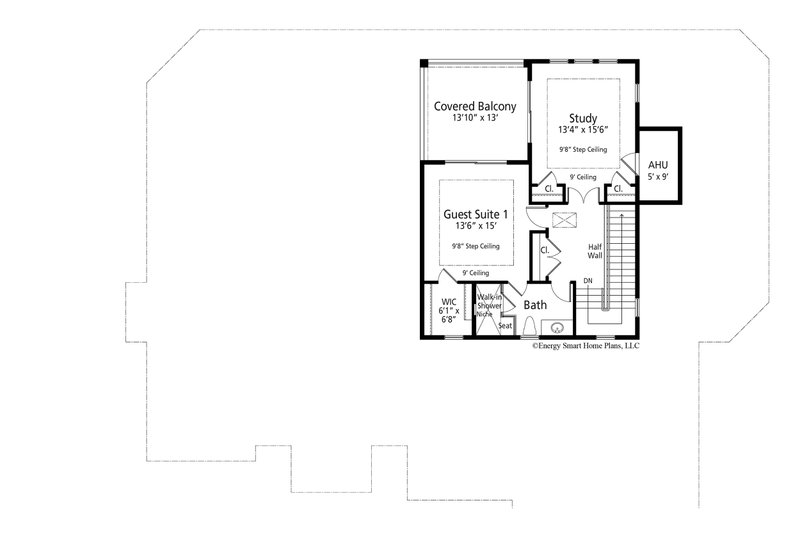

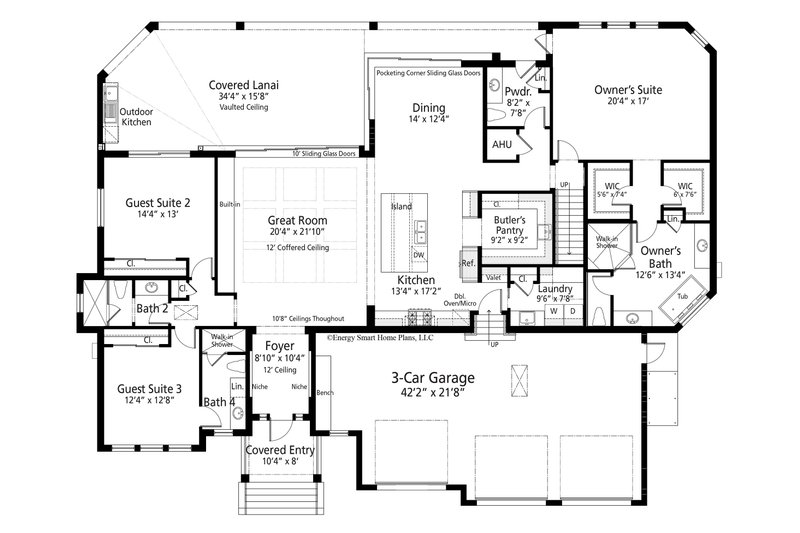

  • Floor Plans

    The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.

  • Roof Plan & Soffit (Chase Layout) Plan

    The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.

  • Reflected Ceiling Plan

    The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.

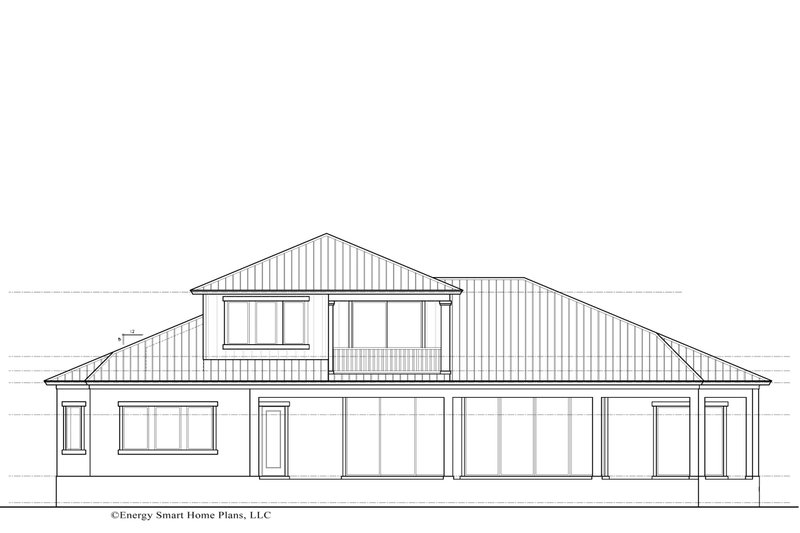

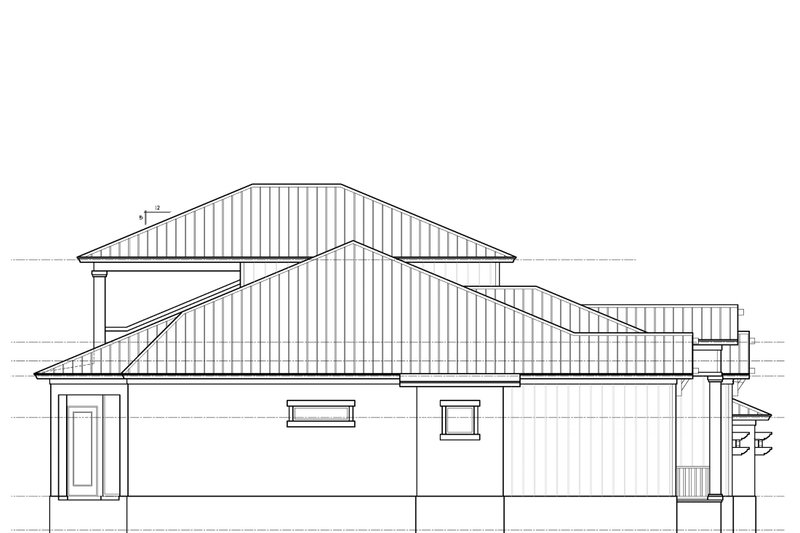

  • Exterior Elevations
