PLAN 1073-8

Key Specs

3641
sq ft

5
Beds

3.5
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

Go bold with this attention-grabbing modern design. The curved roofline adds a surprisingly soft touch to the striking exterior, while inside, the open layout encourages mingling in the great room. Two bedrooms on this level and three more below house your family and friends in comfort.

Floor Plans

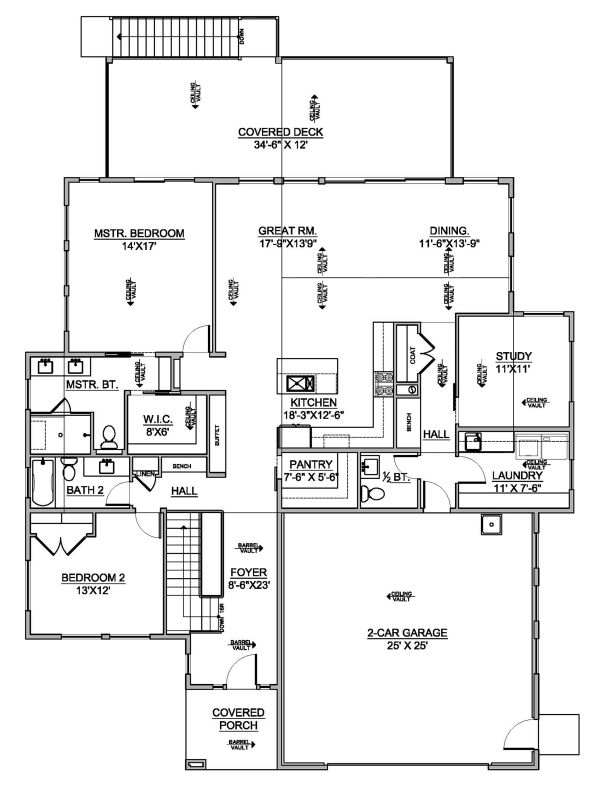

Floor Plan - Main Floor Plan

Reverse

Modern Floor Plan - Main Floor Plan Plan #1073-8

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

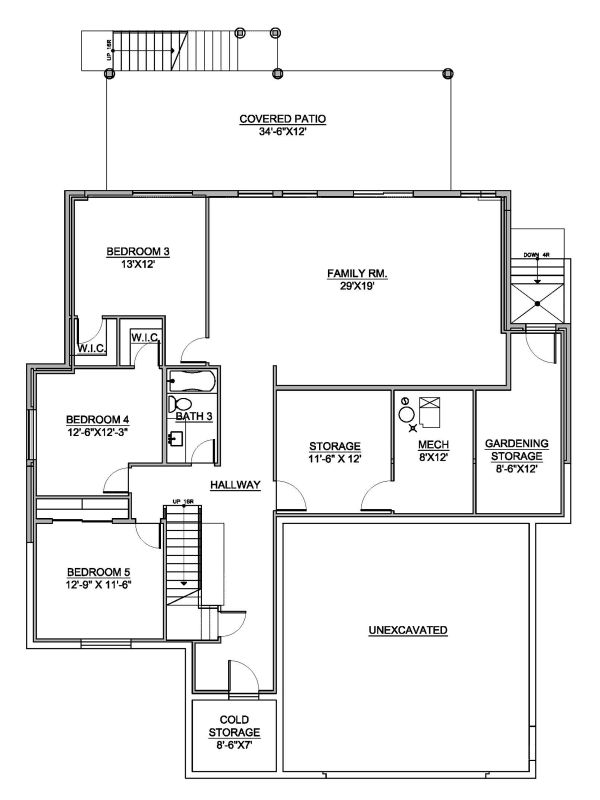

Floor Plan - Lower Floor Plan

Reverse

Modern Floor Plan - Lower Floor Plan Plan #1073-8

Full Specs & Features

Dimension

Depth : 70' 11"
Height : 19'
Width : 54' 6"

Area

Basement : 433 sq/ft
Decks : 414 sq/ft
Garage : 665 sq/ft
Lower Floor : 1609 sq/ft
Main Floor : 2032 sq/ft
Patios : 414 sq/ft
Porch : 73 sq/ft
Storage : 76 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Garage Ceiling : 8'
Lower Ceiling : 9'
Main Ceiling : 9'

Roof

Primary Pitch : 2/12
Roof Framing : Stick
Roof Load : 30LL/15DL
Roof Type : I-JOIST
Secondary Pitch : 1/12

Exterior Wall Framing

Exterior Wall Finish : Siding/Stucco
Framing : 2x6
Insulation : R19 / R38

Bedroom Features

Lower Level Bedrooms
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Storage Area

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
