PLAN #117-268

Key Specs


3650
sq ft

3
Beds

4
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

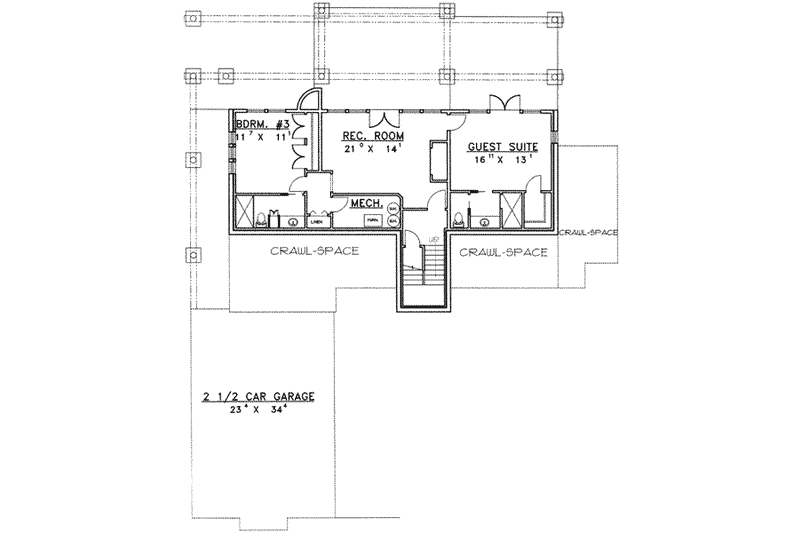

Floor Plan - Lower Floor Plan
Modern Floor Plan - Lower Floor Plan Plan #117-268

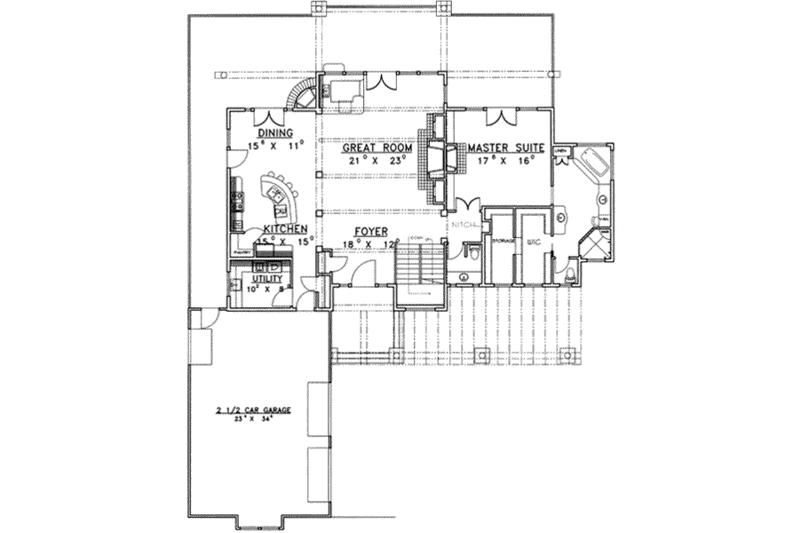

Floor Plan - Main Floor Plan
Modern Floor Plan - Main Floor Plan Plan #117-268

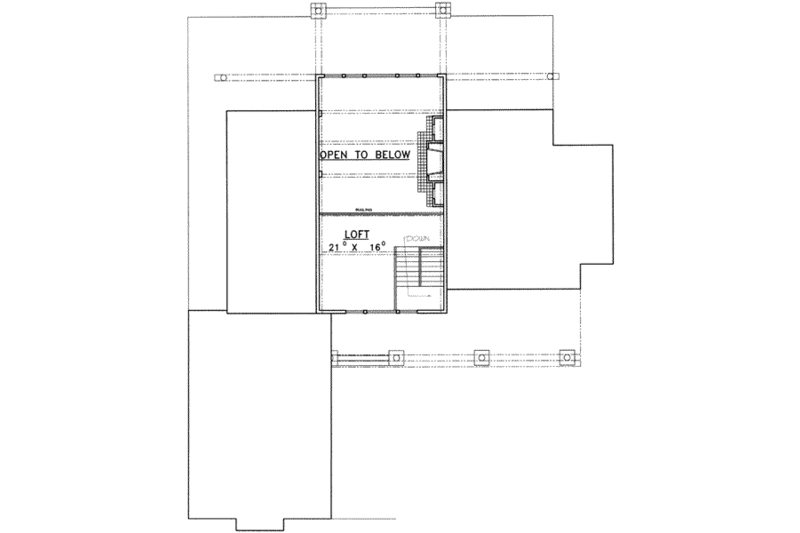

Floor Plan - Upper Floor Plan
Modern Floor Plan - Upper Floor Plan Plan #117-268

Full Specs & Features


Dimension
Depth : 76' 6"
Height : 33' 1"
Width : 71' 6"
Area
Basement Living: 1272 sq/ft height 8' 7"
First Floor: 2106 sq/ft height 10'
Garage: 847 sq/ft
Second Floor: 272 sq/ft height 12' 6"
Roof
Roof Framing : Truss
Primary Pitch : 6:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : 2"x6"
Bedroom Features
Guest Suite
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Hobby Rec Room Game Room
Storage Area
Loft
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Balcony
Rooms

Bedroom 3:

width 11' 7" x depth 11' 1"

Dining Area:

width 15' 6" x depth 11'

Foyer:

width 18' x depth 12'

Garage:

847 sq/ft width 23' 4" x depth 34' 4"

Great Room:

width 21' x depth 23'

Guest Suite:

width 16' 11" x depth 13' 1"

Kitchen:

width 15' x depth 15'

Loft:

272 sq/ft width 21' x depth 16'

Master Suite:

width 17' 8" x depth 16'

Rec Room:

width 20' x depth 14' 1"

Utility Room:

width 10' 2" x depth 8'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
$925.00
5 printed plan sets mailed to you.
8 Copy Set :
$1000.00
8 printed plan sets mailed to you.
Reproducible Set :
$1200.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$1300.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.

Additional Options

Material List :
0.00
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
150.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
0.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
