PLAN 48-245
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
This contemporary design is very well thought out and has corner windows to maximize daylight. The layout on the main floor allows for flexibility: in a pinch the home office at the front can double as a guest room because the powder room is just across the foyer. Kitchen -- with island -- and family room are at the rear; the stairway rises to a balcony overlooking the double height living room. The spa tub in the master bath occupies a corner window while the master bedroom opens to a small deck. The basement contains a fourth bedroom, bathroom, and a game room.
Floor Plans

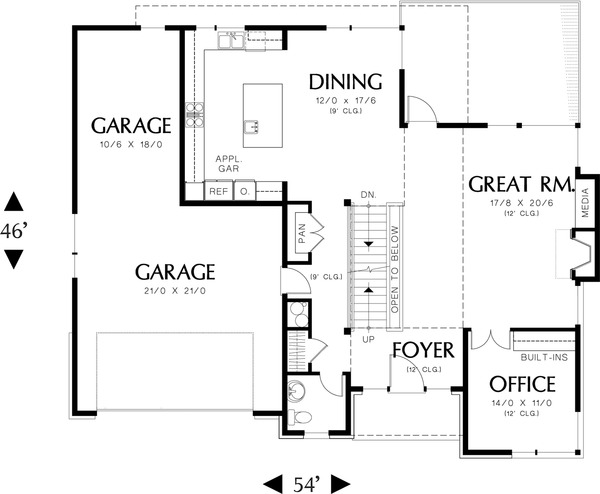

Floor Plan - Main Floor

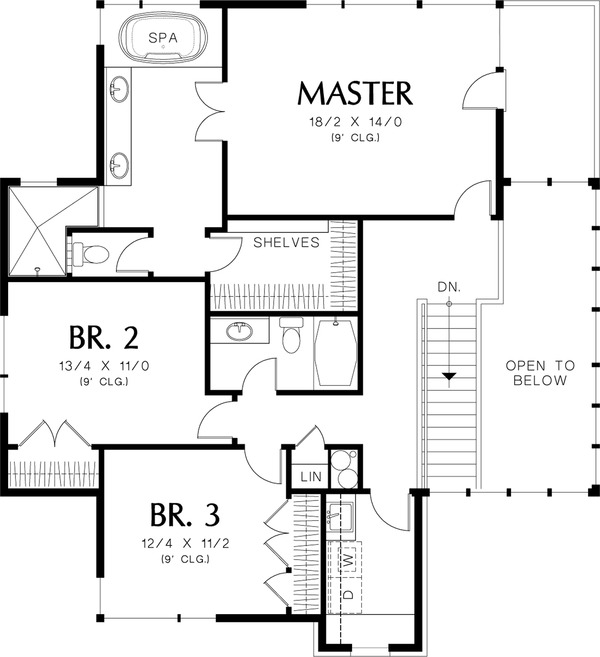

Floor Plan - Upper Floor

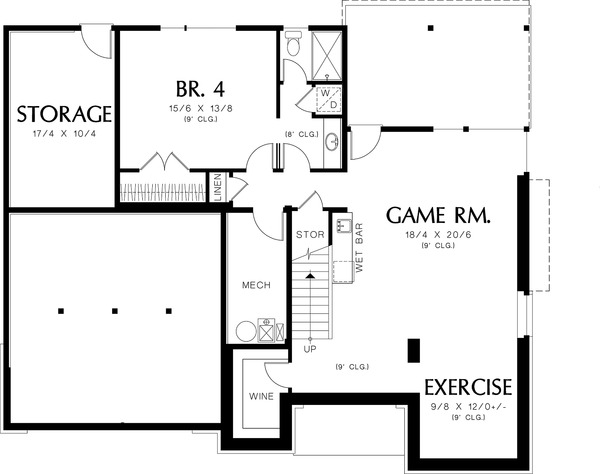

Floor Plan - Lower Floor
Full Specs & Features
Dimension
Depth : 46'
Height : 25'
Width : 54'
Area
Basement Living: 1183 sq/ft
First Floor: 1277 sq/ft
Second Floor: 1191 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Lower Ceiling : 9'
Main Ceiling : 12'
Upper Ceiling Ft : 9'
Roof
Roof Framing : Combination Truss/Conventional
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : 2"x6"
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Additional Room Features
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Loft
Storage Area
Upstairs Laundry
Wine Cellar
Garage Features
Oversized Garage
Tandem Garage
Lot Characteristics
Suited For Sloping Lot
Suited For View Lot
Outdoor Spaces
Balcony
Covered Front Porch
Grill Deck Sundeck
More
Jack & Jill Bath
Rooms
Bedroom 2:
146 sq/ft width 13' 4" x depth 11'
Bedroom 3:
137 sq/ft width 12' 4" x depth 11' 2"
Bedroom 4:
211 sq/ft width 15' 6" x depth 13' 8"
Dining Room:
210 sq/ft width 12' x depth 17' 6"
Exercise Room:
116 sq/ft width 9' 8" x depth 12'
Game Room:
375 sq/ft width 18' 4" x depth 20' 6"
Garage:
189 sq/ft width 10' 6" x depth 18'
Garage Two:
189 sq/ft width 10' 6" x depth 18'
Great Room:
362 sq/ft width 17' 8" x depth 20' 6"
Home Office:
154 sq/ft width 14' x depth 11'
Master Bedroom:
254 sq/ft width 18' 2" x depth 14'
Storage:
179 sq/ft width 17' 4" x depth 10' 4"
What's Included In This Plan Set
- Exterior Elevations
- In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
-
Foundation Plan
- The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations. If you choose the optional Slab foundation, the slab foundation will not be reflected in the plan sections.
-
Floor Plan(s)
- Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
-
Building Sections
- Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
-
Roof Plan
- Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
-
Notes and Details Page(s)
- Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.
