PLAN 17-2636
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 75' 5"
Height : 24'
Width : 122' 10"
Area
Basement Living: 948 sq/ft
First Floor: 2711 sq/ft
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Split Bedrooms
Additional Room Features
Den Office Study Computer
Great Room Living Room
Media Room
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
150 sq/ft width 12' 6" x depth 12'
Bedroom 3:
150 sq/ft width 12' 6" x depth 12'
Bedroom 4:
154 sq/ft width 12' 6" x depth 12' 4"
Breakfast Room:
158 sq/ft width 12' 10" x depth 12' 4"
Dining Room:
172 sq/ft width 11' 6" x depth 15'
Game Room:
389 sq/ft width 20' 6" x depth 19'
Garage:
799 sq/ft width 23' 6" x depth 34'
Gathering Room:
367 sq/ft width 19' x depth 19' 4"
Kitchen:
178 sq/ft width 11' 6" x depth 15' 6"
Master Bathroom:
164 sq/ft width 14' 6" x depth 11' 4"
Master Bedroom:
263 sq/ft width 16' 10" x depth 15' 8"
Porch - Front:
261 sq/ft width 6' x depth 43' 6"
Study:
150 sq/ft width 12' 6" x depth 12'
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
- CAD Unlimited Build comes with a free PDF.

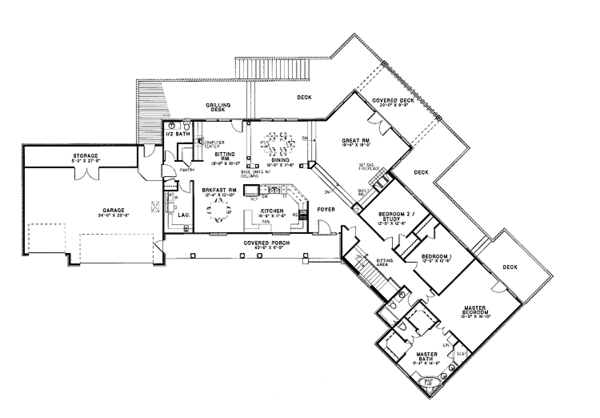

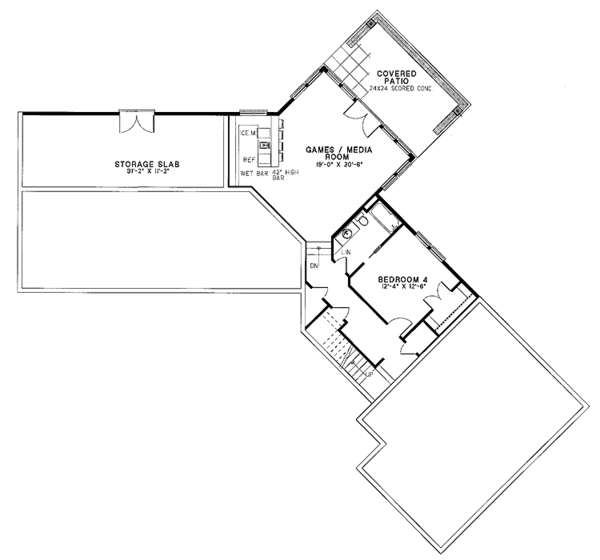

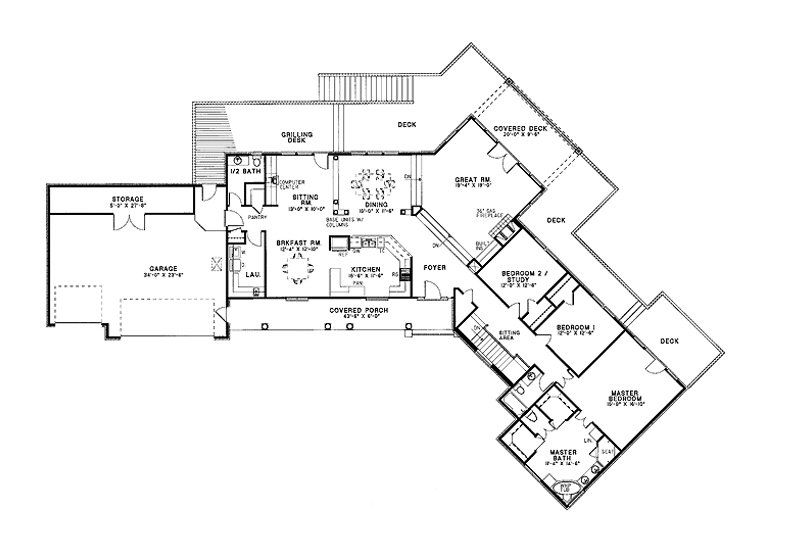

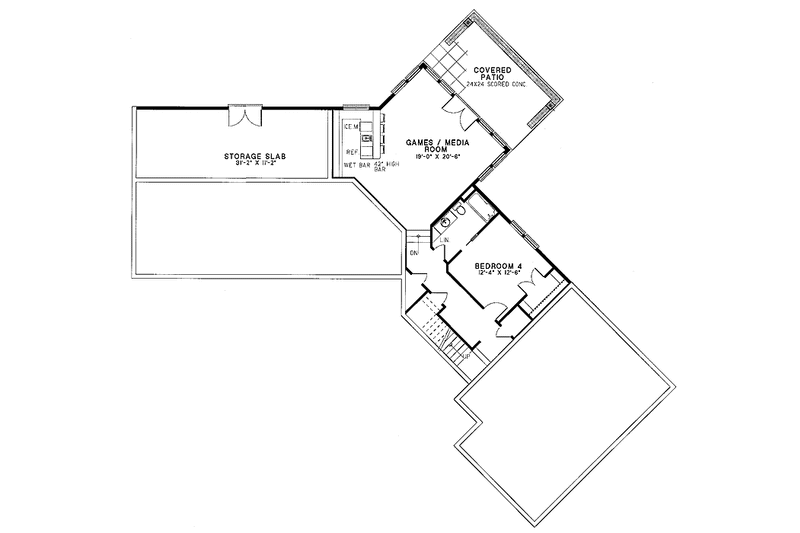

- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

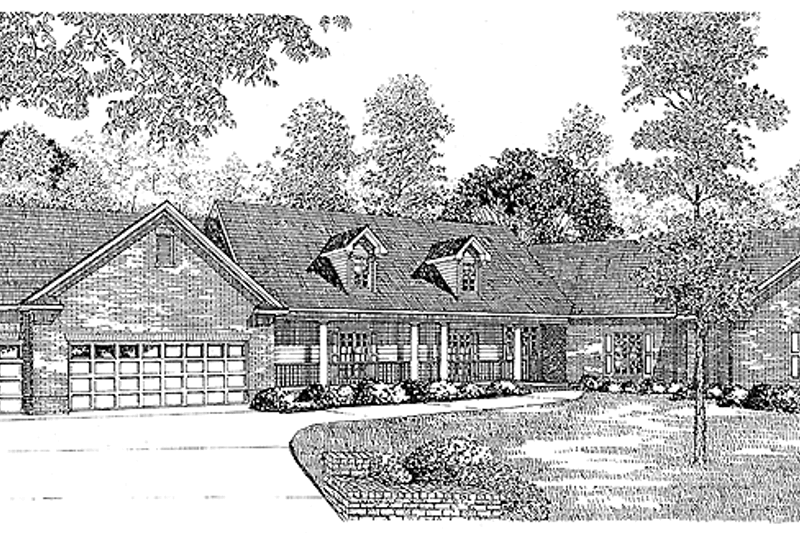

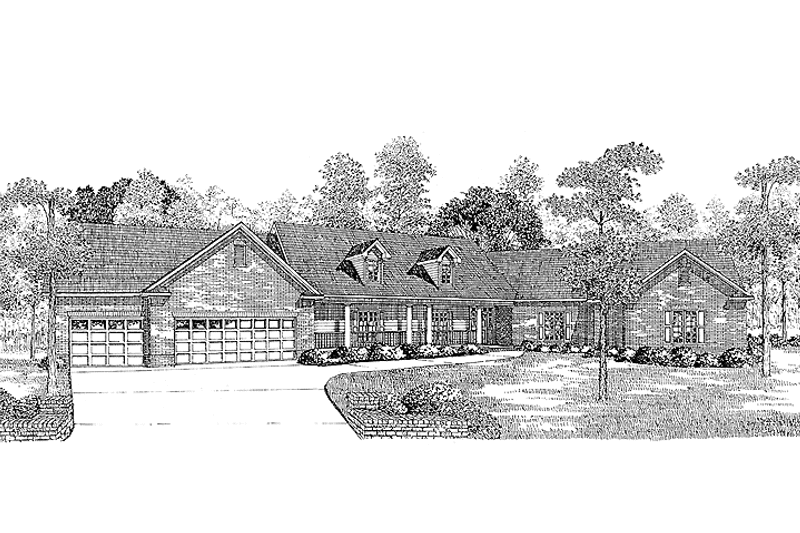

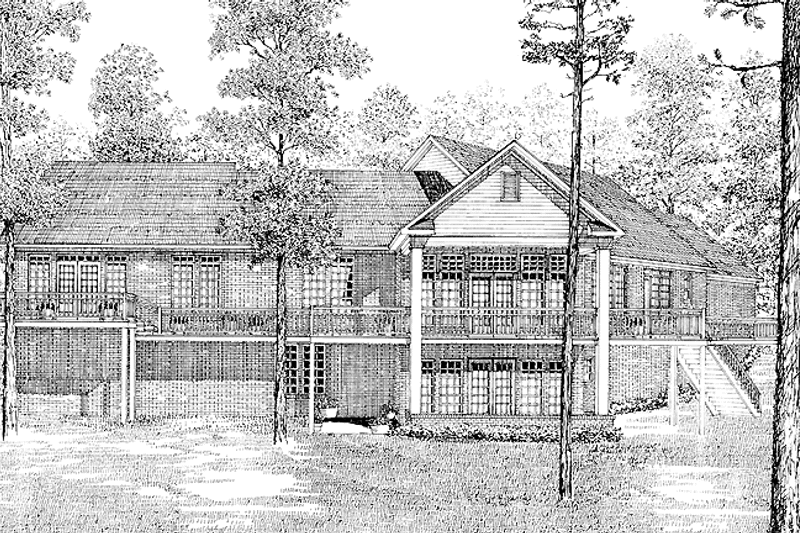

- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
