PLAN #1071-19

Key Specs


3672
sq ft

3
Beds

3.5
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

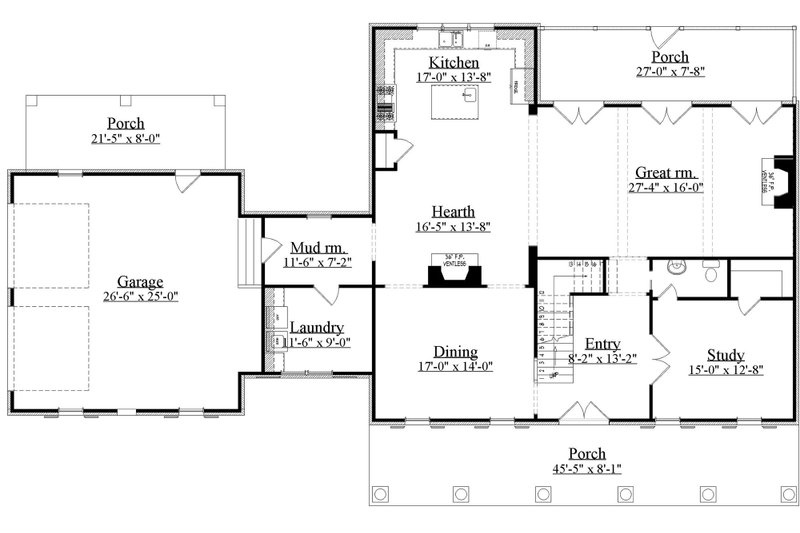

Floor Plan - Main Floor Plan
Southern Floor Plan - Main Floor Plan Plan #1071-19

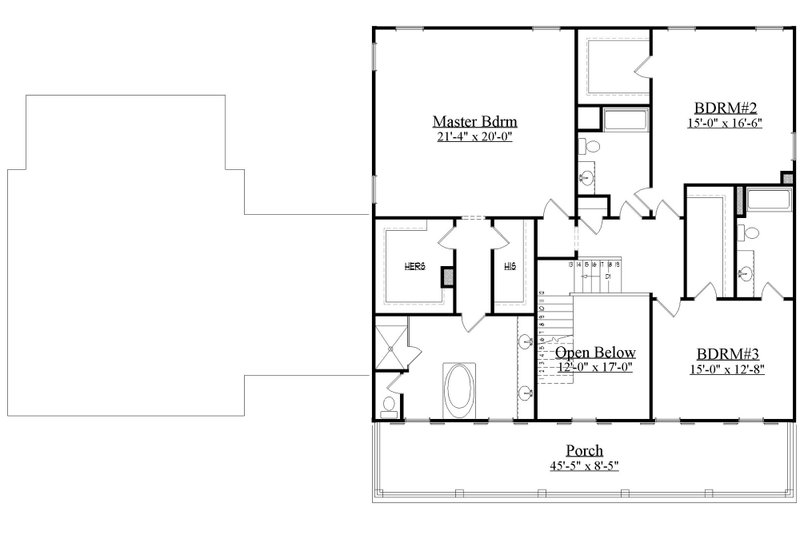

Floor Plan - Upper Floor Plan
Southern Floor Plan - Upper Floor Plan Plan #1071-19

Full Specs & Features


Dimension
Depth : 51' 8"
Height : 35' 11"
Width : 84' 8"
Area
Garage : 670 sq/ft
Main Floor : 1949 sq/ft
Porch : 994 sq/ft
Upper Floor : 1723 sq/ft
Ceiling
Ceiling Details : Beamed Great Room
Main Ceiling : 11'
Roof
Roof Framing : Conventional
Primary Pitch : 6:12
Secondary Pitch : 12:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick & Siding
Framing : 2 x 4
Bedroom Features
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Mud Room
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

What's Included In This Plan Set


  • Cover sheet with rendering ( black and white )
  • Elevations: All exterior elevations of the front, left, rear, and right sides of the house. The elevations are noted with the materials and dimensioned for ceiling heights and window heights as well as other heights.
  • Foundation Plan: Foundation plans include drawings for a concrete slab, or crawlspace. Only one type is included with each plan and basement plans can be added for an additional fee. Bearing walls and all the necessary dimensioning are included on plans. Please note that these drawings are designed to meet IRC building codes but may not be sufficient for your local area. Foundation plans may need to be engineered locally.
  • Floor Plans: Dimensioned floor plans. Each floor of the house is shown in detail. The position and dimensions of walls, doors, windows, staircases, and columns are clearly indicated. Door and window sizes are also included.
  • Electrical Plan: A Suggested Electrical layout is included for the placement of light switches, power outlets, and lighting fixtures. National Electrical code and your builder / electrician should determine final placement.
  • Roof Plan: Showing roof pitches and overhang dimensions as well as ventilation notes.
  • Sections: Stair / Building cross sections. Also included are a few typical construction details
