PLAN 119-240
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Full Specs & Features
Dimension
Depth : 55'
Height : 36'
Width : 81'
Height : 36'
Width : 81'
Area
Basement Unfinished: 2009 sq/ft
First Floor: 2009 sq/ft height 9'
Second Floor: 1667 sq/ft
First Floor: 2009 sq/ft height 9'
Second Floor: 1667 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2"x4"
Framing : 2"x4"
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Loft
Master Sitting Area
Storage Area
Unfinished Future Space
Great Room Living Room
Loft
Master Sitting Area
Storage Area
Unfinished Future Space
Garage Features
Oversized Garage
Side Entry Garage
Side Entry Garage
Entryway
Friend S Entry
Lot Characteristics
Suited For Corner Lot
Suited For Sloping Lot
Suited For View Lot
Suited For Sloping Lot
Suited For View Lot
Outdoor Spaces
Balcony
Covered Front Porch
Covered Rear Porch
Covered Front Porch
Covered Rear Porch
More
Jack & Jill Bath
Rooms
3rd BR Closet:
28 sq/ft width 4' x depth 7'
Basement Foundation:
4455 sq/ft width 81' x depth 55'
Bathroom 2:
78 sq/ft width 13' x depth 6'
Bedroom 2:
168 sq/ft width 14' x depth 12'
Bedroom 2 Closet:
28 sq/ft width 4' x depth 7'
Bedroom 3:
169 sq/ft width 13' x depth 13'
Bedroom 3 Closet:
28 sq/ft width 4' x depth 7'
Bedroom 4:
195 sq/ft width 13' x depth 15'
Bedroom 4 Closet:
56 sq/ft width 7' x depth 8'
Breakfast Room:
144 sq/ft width 12' x depth 12'
Deck:
144 sq/ft width 12' x depth 12'
Dining Room:
216 sq/ft width 12' x depth 18'
Foyer:
110 sq/ft width 10' x depth 11'
Garage:
651 sq/ft width 21' x depth 31'
Gathering Room:
368 sq/ft width 23' x depth 16'
Hall Bathroom:
54 sq/ft width 9' x depth 6'
Kitchen:
240 sq/ft width 24' x depth 10'
Living Room:
168 sq/ft width 12' x depth 14'
Master Bathroom:
190 sq/ft width 10' x depth 19'
Master Bedroom:
304 sq/ft width 19' x depth 16'
Porch - Front:
144 sq/ft width 12' x depth 12'
Powder Room:
60 sq/ft width 6' x depth 10'
Utility Room:
80 sq/ft width 8' x depth 10'
Walk-In Closet:
152 sq/ft width 19' x depth 8'
What's Included In This Plan Set
- Cover Sheet: The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
- Foundation: These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.

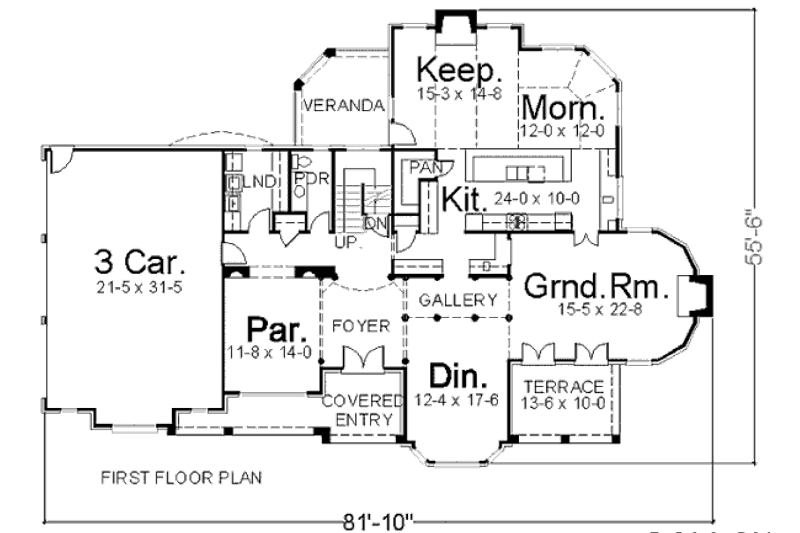

- First Floor Plan: This page is drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. *Framing is not included.

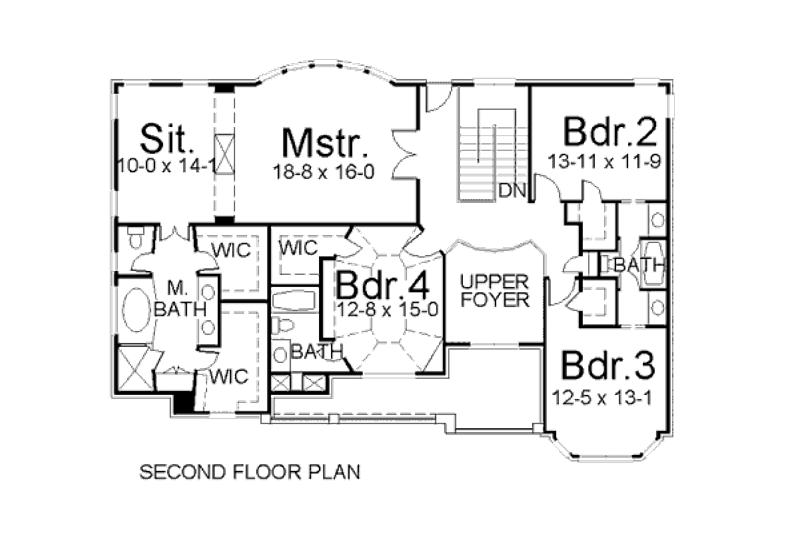

- Second Floor Plan: The second floor includes stair details. Often the reflective roof detail is shown legibly over the second floor plan. This is helpful for the framing contractor. *Framing is not included.
- Lighting and Electrical: On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors. It is common place to build with your builder and/or electrician before the work starts to review this plan. Careful planning can make your home special and convenient for your family.
- Second Floor Lighting: The same details as provided for the first floor.

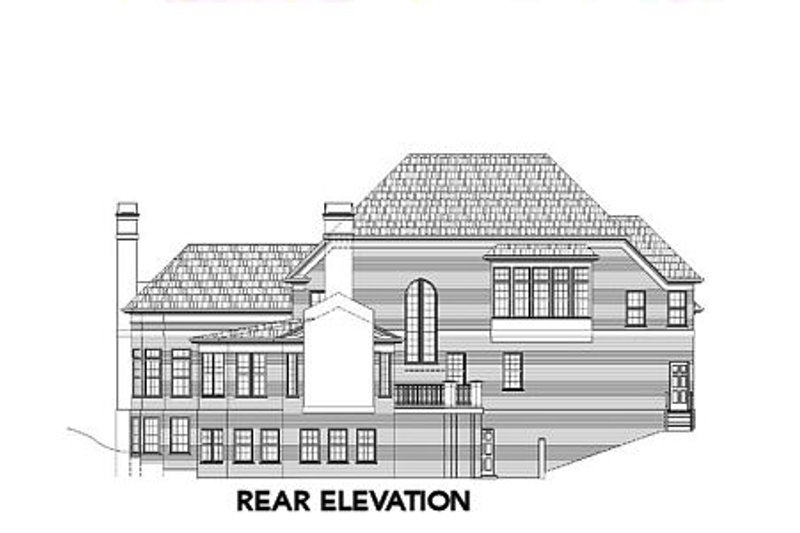

- Front and Rear Elevations: The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.
- Right and Left Elevations: The right and left elevations provide the same details as the front and rear elevations.
- Roof Plan: This drawing, usually at ¼”=1’-0” scale, will be a bird’s eye view of the home. It will show the ridges, hips, and valleys. This page will show a beautifully designed roof.*Framing is not included.
- Cross-Sections: Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
- Cabinet Elevations*: Cabinet elevations are provided with your plans, and like the electrical plan, they are mainly a guide for estimating purposes. Cabinets are an area that is easy to customize and your builder or cabinet maker will work with you early on in the process to ensure that the correct cabinets are specified. Archival Designs believes cabinets should reflect your taste and budget. After framing and sheet rock installation sizes of walls may change slightly. The cabinet maker must take as built measurements to properly size your cabinets. **NOTE: The majority of house plans will include cabinet elevations in construction set; however, not all will include.
- General Notes: Separate sheets that provide standard construction notes, in addition included are the details required to comply with International Residential Code (IRC) & Southern Building Code (SBC).
