PLAN 928-7

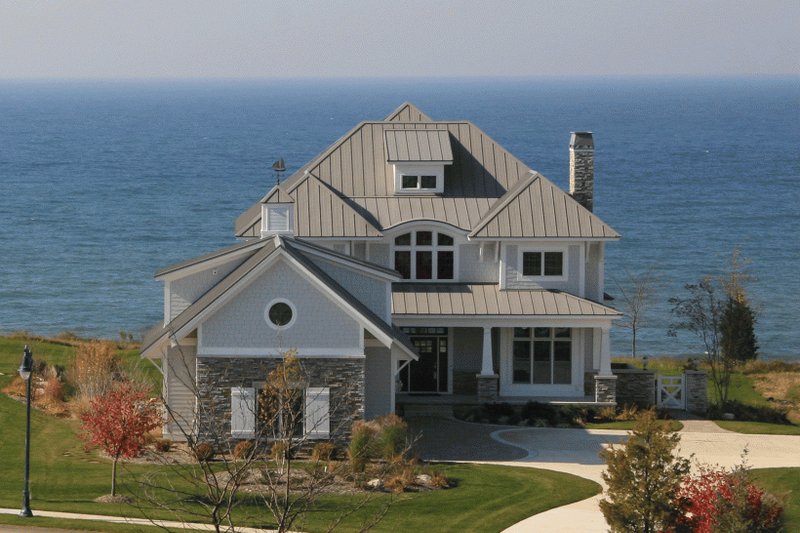

Photographs may show modified designs.

Save
Questions? Get Personalized Help

Key Specs


Plan Sq Ft

3677
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

3
Baths

Plan Floors

3
Floors

Plan Garages

2
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Audio Video Design
$148.50
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List
$355.50
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide
$35.10
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design
$148.50
Receive an overlay sheet with suggested placement of lighting fixtures.
Subtotal
NOW $1795.50
You save $199.50 (10% savings)
Sale ends soon!
Best Price Guaranteed*

Also order by phone: 1-800-447-0027
Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2024 (limit 1)
This report will provide you cost estimates based on location and building materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Hours:
Mon - Fri 8:30 - 8:30 (EDT)
NEW!  Sat - Sun 10 - 7 (EDT)

See our Terms & Conditions and Privacy Policy.

PLAN 928-7

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

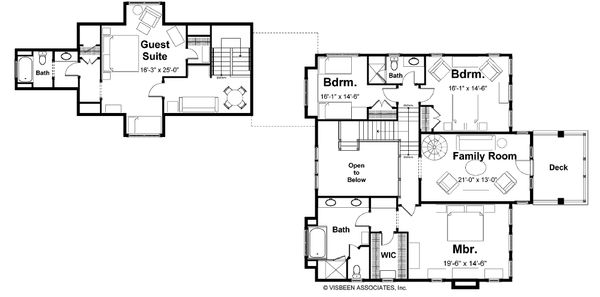

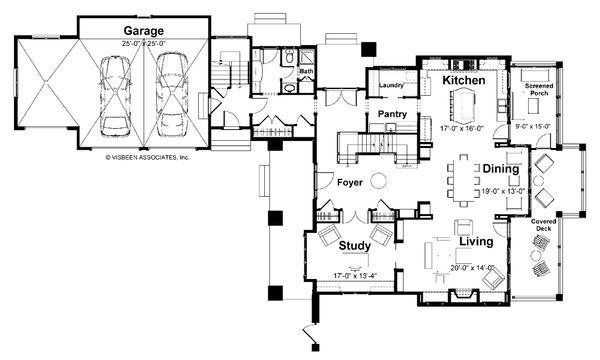

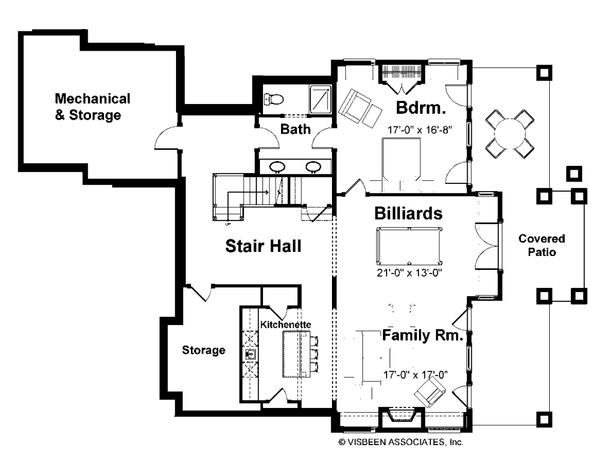

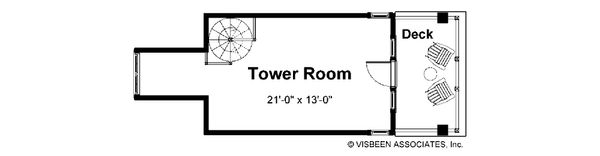

The compact footprint of this 3 bedroom 3 bath plan packs many surprises -- not the least of which is that there are livable porches on all levels: off the billiard/rec room on the basement level; the great room on the main floor; the family room on the second floor; and the tower room at the top! The open layout of the main or entry floor creates a feeling of spaciousness as the island kitchen, great room, study and screen porch flow into one another. The master suite and another bedroom suite are on the second floor and there is a guest suite over the garage. A circular stair leads from the second floor family room to the tower room -- perfect for an office, or teen retreat!

Full Specs & Features


Dimension

Depth : 100'

Height : 39' 3"

Width : 56'

Area

Basement Unfinished: 1512 sq/ft height 9'

Bonus: 331 sq/ft

First Floor: 2151 sq/ft height 11'

Second Floor: 1526 sq/ft height 9'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Lower Ceiling : 9'

Main Ceiling : 11'

Upper Ceiling Ft : 9'

Roof

Primary Pitch : 10:12

Roof Framing : Truss

Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone

Framing : 2x6

Bedroom Features

Upstairs Bedrooms

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Main Floor Laundry

Garage Features

Side Entry Garage

Rooms

Attic:

273 sq/ft width 21' x depth 13'

Bedroom 2:

233 sq/ft width 16' 1" x depth 14' 6"

Bedroom 3:

233 sq/ft width 16' 1" x depth 14' 6"

Bedroom 4:

283 sq/ft width 17' x depth 16' 8"

Bonus Room - Finished:

273 sq/ft width 21' x depth 13'

Dining Room:

247 sq/ft width 19' x depth 13'

Family Room:

273 sq/ft width 21' x depth 13'

Family Room:

289 sq/ft width 17' x depth 17'

Garage:

625 sq/ft width 25' x depth 25'

Guest Suite:

406 sq/ft width 16' 3" x depth 25'

Kitchen:

272 sq/ft width 17' x depth 16'

Living Room:

280 sq/ft width 20' x depth 14'

Master Bedroom:

282 sq/ft width 19' 6" x depth 14' 6"

Porch - Screened:

135 sq/ft width 9' x depth 15'

Study:

226 sq/ft width 17' x depth 13' 4"

What's Included In This Plan Set


Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in the state of Michigan requires special permission from the Architect.

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

» See important information before purchasing.
Questions? Call 1-800-447-0027

Plan Set

PDF Set:
$1795.50
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$3595.50
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.

Additional Options

Audio Video Design:
$148.50
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$355.50
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$35.10
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$148.50
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
