PLAN #923-11

Key Specs


3697
sq ft

4
Beds

4.5
Baths

1
Floors

3
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


If you are searching for a plan with an open floor plan and plenty of space, this is it! Featuring a timber columned front porch and a 3-car courtyard style garage, this plan is an asset to any community. The great room, with vaulted ceiling and fireplace, opens to a kitchen featuring a island bar and a walk-in pantry. There is a rear covered porch with a vaulted ceiling and optional fireplace that is accessible from the great room. The dining room is tucked behind the kitchen with ample windows for natural lighting. The master suite features a vaulted ceiling, access to the rear deck and a bath offers a double vanity, a walk-around shower with a seat, and dual walk-in closets. A second main level bedroom has a walk-in closet and a full bath. The downstairs is perfect for entertaining with it's large game room with a wet bar and access to the lower level covered patio. There are also two more bedrooms which each boast a full bath and walk-in closet. As a bonus, there is a safe/exercise room and an unfinished storage area.

Floor Plans

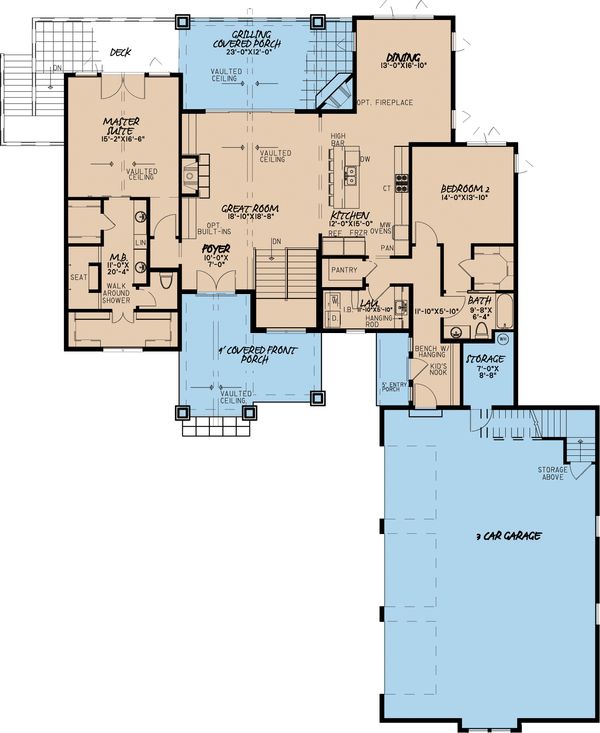

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

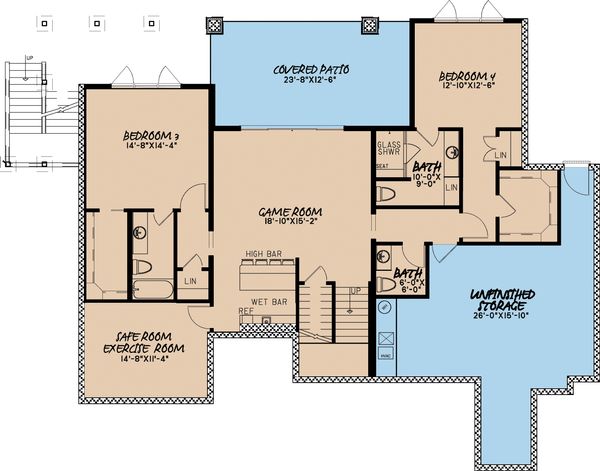

Floor Plan - Lower Floor Plan
Floor Plan - Lower Floor Plan

Full Specs & Features


Dimension Depth : 98'
Height : 26'
Width : 62'
Area Bonus : 464 sq/ft
Garage : 1378 sq/ft
Lower Floor : 1519 sq/ft
Main Floor : 2178 sq/ft
Porch : 598 sq/ft
Ceiling Main Ceiling : 10'
Upper Ceiling Ft : 10'
Roof Roof Framing : Stick
Roof Load : 45 lbs. psf
Primary Pitch : 12:12
Exterior Wall Framing Framing : 2x6
Bedroom Features Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Fireplace
Formal Dining Room
Kitchen Features Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features Bonus Play Flex Room
Exercise Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Storage Area
Safe Room / Hidden Room
Vaulted / Cathedral Ceilings
Garage Features Front Entry Garage
Entryway Friend S Entry
Outdoor Spaces Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck

What's Included In This Plan Set


Michael E Nelson Designs, LLC

  • Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
  • Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
  • Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
  • Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
» See important information before purchasing.
Plan Set
5 Copy Set :
$1175.00
5 printed plan sets mailed to you.
8 Copy Set :
$1300.00
8 printed plan sets mailed to you.
PDF Set :
$2000.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$3075.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$975.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation
Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Basement:
$250.00
Ideal for level lot, lower level of home partially or fully underground.
Additional Options
Right-Reading Reverse :
55.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
40.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Construction Engineering Guide :
98.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.
