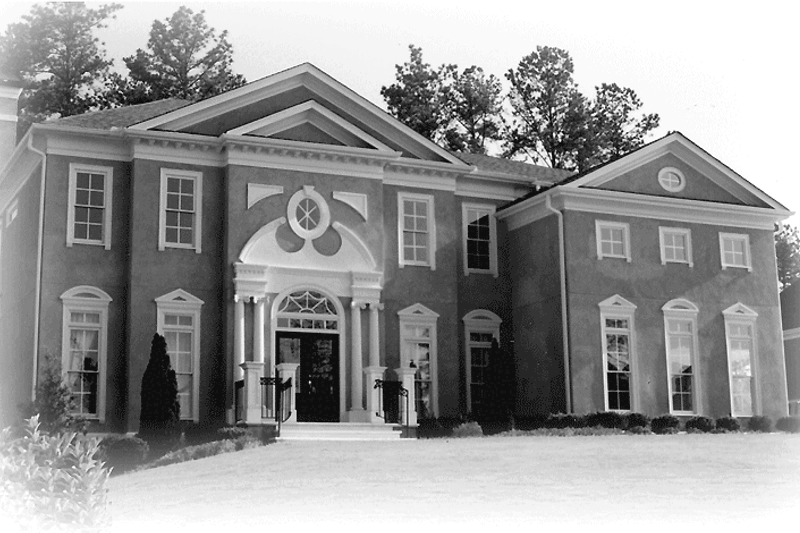

Photographs may show modified designs.

Select Plan Set Options
What's included?
Additional Construction Sets
Mirror Reversed Sets
NOW $1337.40
You save $148.60
(10% savings)
Sale ends soon!
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Need an answer fast? Call us at 1-800-447-0027

We do our best to get back within 24 - 48 business hours.
Hours  Mon-Fri, 9 am - 8:30 pm (EST)

PLAN #54-192

Key Specs

sq ft





This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

For sheer magnificence, this chateau-style mansion is unbeatable. Guests will be enchanted, both by the pillared entry and the inside splendor. The two-story grand room, with an extended-hearth fireplace, is well-designed for unforgettable soiree's. A front dining room and living room (or make it a library)radiate a gracious welcome. The kitchen can easily serve gourmet dinners and informal family meals. It opens to an exquisite breakfast bay with five windows and to a keeping room with a fireplace. All four bedrooms are situated upstairs, and the posh master suite enjoys His and Hers walk-in closets and vanities. The laundry is conveniently located on this floor.

Floor Plans

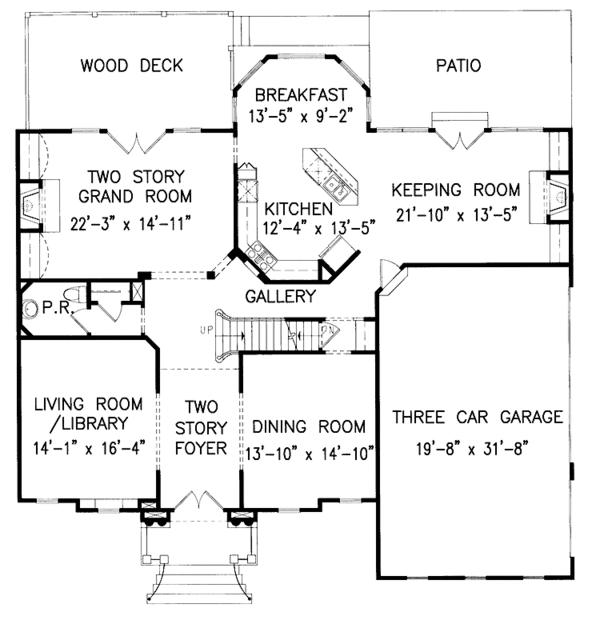

Floor Plan - Main Floor Plan
Classical Floor Plan - Main Floor Plan Plan #54-192

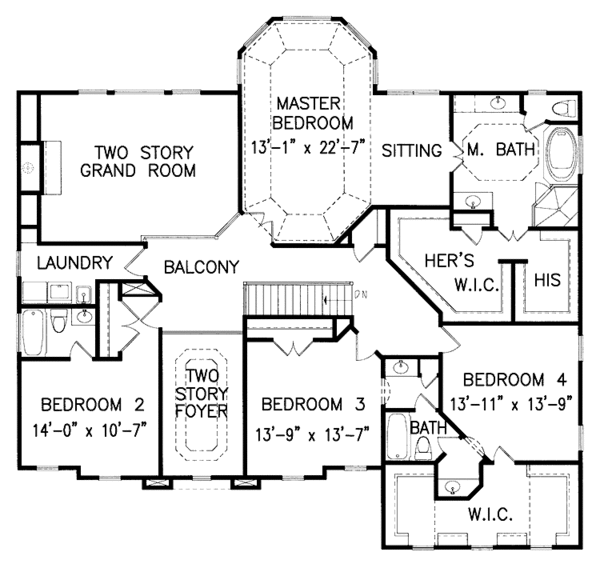

Floor Plan - Upper Floor Plan
Classical Floor Plan - Upper Floor Plan Plan #54-192

Full Specs & Features

Depth : 53' 6"
Height : 31'
Width : 57' 4"
First Floor: 1807 sq/ft
Second Floor: 1970 sq/ft
Primary Pitch : 6:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Master Sitting Area
Upstairs Laundry
Outdoor Spaces

Bedroom 2:

148 sq/ft width 14' x depth 10' 7"

Bedroom 3:

186 sq/ft width 13' 9" x depth 13' 7"

Bedroom 4:

191 sq/ft width 13' 11" x depth 13' 9"

Breakfast Room:

122 sq/ft width 13' 5" x depth 9' 2"

Den/Office or Bedroom 1:

181 sq/ft width 11' 1" x depth 16' 4"

Dining Room:

205 sq/ft width 13' 10" x depth 14' 10"


622 sq/ft width 19' 8" x depth 31' 8"

Grand Room:

331 sq/ft width 22' 3" x depth 14' 11"


165 sq/ft width 12' 4" x depth 13' 5"

Laundry Room:

45 sq/ft width 7' 6" x depth 6'

Living Room:

230 sq/ft width 14' 1" x depth 16' 4"

Master Bedroom:

295 sq/ft width 13' 1" x depth 22' 7"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
5 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.


Daylight Basement:
Ideal for sloping lot, lower level of home partially underground.


Wood 2x4:
Wood 2x4

Additional Options

Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.

*Alternate Foundations may take time to prepare.
