PLAN #48-841

Key Specs


3859
sq ft

3
Beds

2.5
Baths

2
Floors

3
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This compact daylight basement plan presents itself well with a tall arched entrance topped with a large transom scooping light into the foyer. The den is furnished with built-ins and a closet full of shelves -perfect storage for that home office. Ten foot ceilings add volume to the dining room, great room and kitchen area with easy access to the upper deck. Windows adorn the back wall providing an unobstructed view from any room. No detail is overlooked to add comfort to this home including a fireplace, media center, and huge breakfast bar island. Retreat to the lavish master suite - add a small furniture grouping by the bay window to transform it into a cozy sitting area. The compartmentalized bath and walk-in closet lack nothing. A Jack-and Jill bathroom separates two additional bedrooms. A daylight basement serves as a wonderful place to entertain, whether it’s the kids and their friends or family the large games room flows out to a lower deck, and furnished with a wet bar. A fourth bedroom completes the home.

Floor Plans

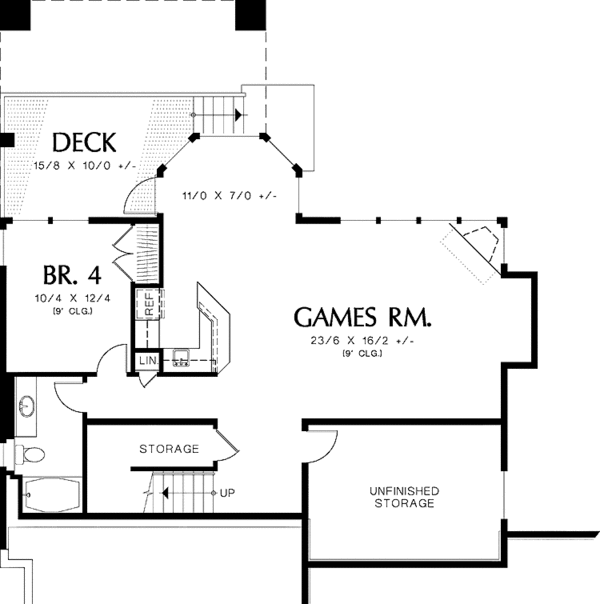

Floor Plan - Lower Floor Plan
Floor Plan - Lower Floor Plan

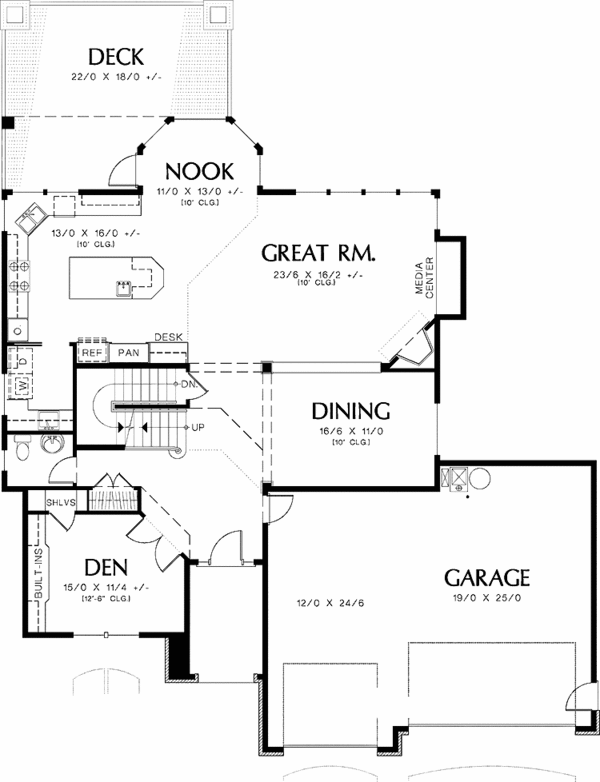

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

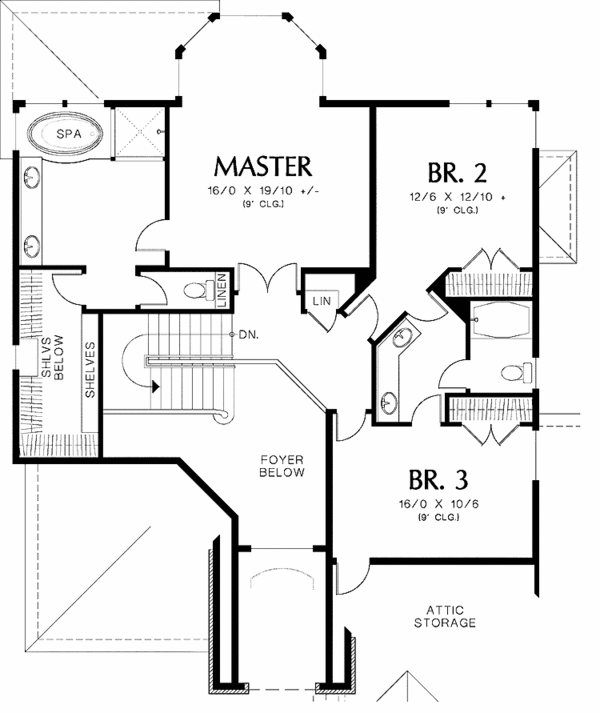

Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan

Full Specs & Features


Area Lower Floor : 1016 sq/ft
Main Floor : 1590 sq/ft
Upper Floor : 1253 sq/ft
Bedroom Features Upstairs Master Bedrooms
Walk In Closet
Fireplace
Formal Dining Room
Kitchen Features Kitchen Island
Breakfast Nook
Additional Room Features Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Storage Area
Outdoor Spaces Covered Rear Porch
Loft Balcony
Deck

What's Included In This Plan Set


Alan Mascord Design Associates

  • Exterior Elevations
    In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

  • Foundation Plan
    The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations. If you choose the optional Slab foundation, the slab foundation will not be reflected in the plan sections.

  • Floor Plan(s)
    Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

  • Building Sections
    Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

  • Roof Plan
    Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

  • Notes and Details Page(s)
    Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.
» See important information before purchasing.
Plan Set
PDF Set :
$1400.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$1450.00
5 printed plan sets mailed to you.
CAD Set :
$2800.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
