PLAN #951-17

Key Specs


3870
sq ft

4
Beds

3.5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This unique design starts with a grand columned and covered front porch. The entry presents a Living room and Den on each side of the Foyer. Transoms over the windows add natural light to the Livng and Dining areas. The upper floor boasts 2 bedrooms wtih a walk in closet each, along with the Master Suite. A wraparound double vanity perfectly accentuates the corner jetted tub in the pleasantly unique Master Bath. The Kitchen on the main floor offers a center island with plenty of cabinets and a flush eating bar, a walk in pantry, and a Nook with outside access. This plan is completed with a 3 car garage, an enormous Rec. room and a fourth bedroom in the basement with an attached full bath.

Floor Plans

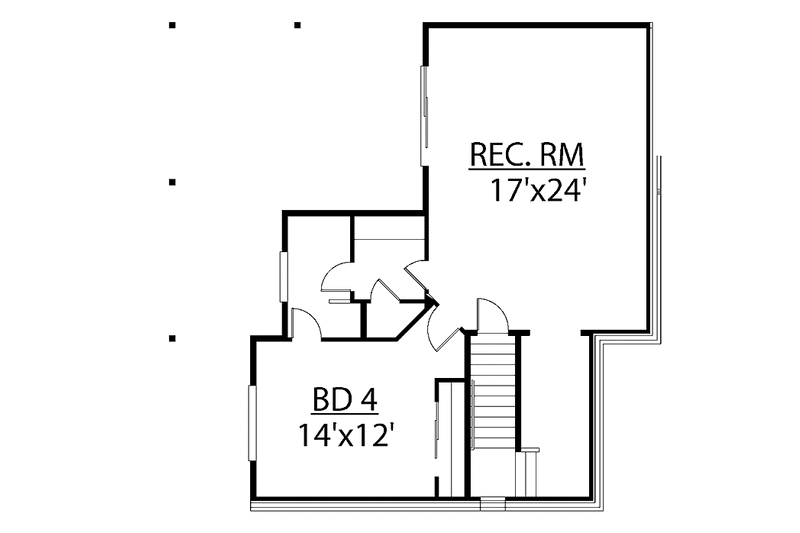

Floor Plan - Lower Floor Plan
Contemporary Floor Plan - Lower Floor Plan Plan #951-17

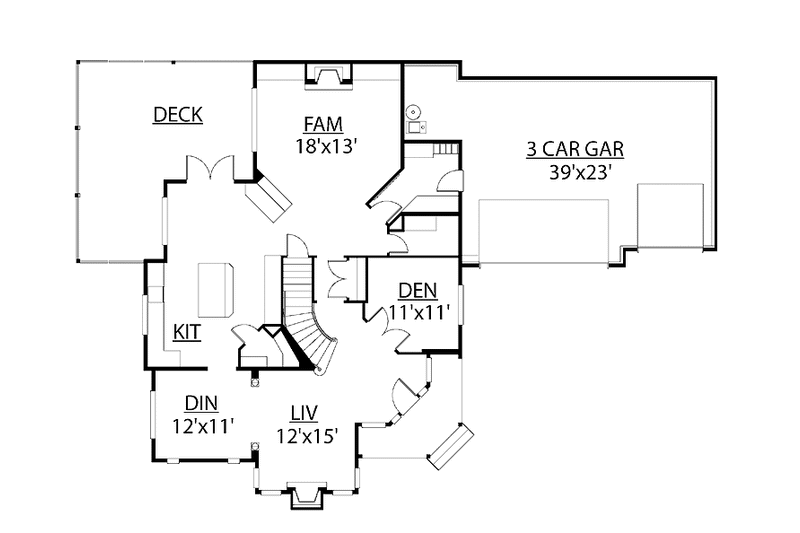

Floor Plan - Main Floor Plan
Contemporary Floor Plan - Main Floor Plan Plan #951-17

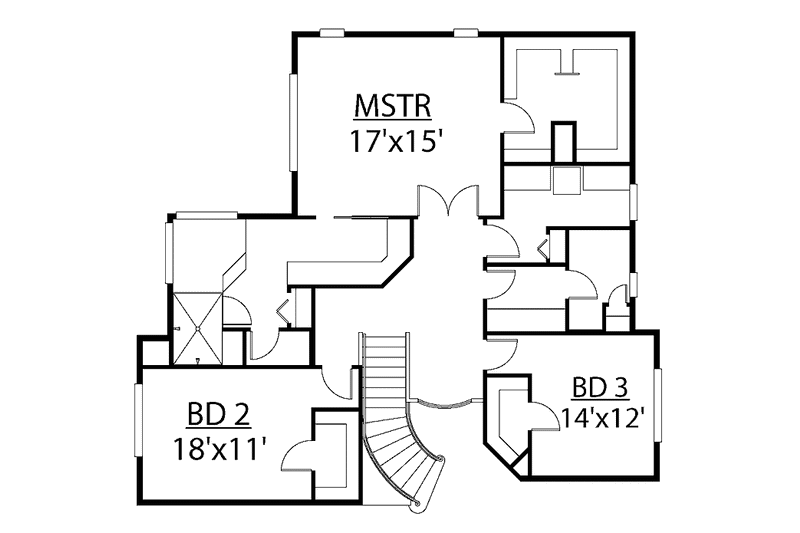

Floor Plan - Upper Floor Plan
Contemporary Floor Plan - Upper Floor Plan Plan #951-17

Full Specs & Features


Dimension
Depth : 56' 6"
Width : 72' 1"
Area
Basement Living: 938 sq/ft
First Floor: 1658 sq/ft
Second Floor: 1274 sq/ft
Roof
Roof Framing : Combination Truss/Conventional
Primary Pitch : 6:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x6
Bedroom Features
Upstairs Master Bedrooms
Fireplace
Formal Living Room / Parlor
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Storage Area
Loft
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Balcony
Deck
Rooms

Balcony:

12 sq/ft width 6' 1" x depth 2'

Basement Foundation:

1183 sq/ft width 31' 5" x depth 37' 8"

Bedroom 2:

198 sq/ft width 18' x depth 11'

Bedroom 2 Closet:

26 sq/ft width 7' 4" x depth 3' 7"

Bedroom 3:

168 sq/ft width 14' x depth 12'

Bedroom 3 Closet:

17 sq/ft width 5' 4" x depth 3' 4"

Bedroom 4:

168 sq/ft width 14' x depth 12'

Bedroom 4 Closet:

19 sq/ft width 9' 2" x depth 2' 1"

Breakfast Room:

112 sq/ft width 11' 3" x depth 10'

Coat Closet:

11 sq/ft width 5' 4" x depth 2' 1"

Crawlspace Foundation:

1475 sq/ft width 37' 8" x depth 39' 2"

Deck:

567 sq/ft width 22' 3" x depth 25' 6"

Den:

126 sq/ft width 11' x depth 11' 6"

Dining Room:

133 sq/ft width 12' 1" x depth 11' 1"

Family Room:

238 sq/ft width 18' 1" x depth 13' 2"

Foyer:

77 sq/ft width 9' x depth 8' 7"

Garage:

897 sq/ft width 39' x depth 23'

Hall:

84 sq/ft width 5' 9" x depth 14' 9"

Hall Bathroom:

33 sq/ft width 6' 9" x depth 5'

Kitchen:

149 sq/ft width 11' 5" x depth 13' 1"

Kitchen Island:

25 sq/ft width 6' 9" x depth 3' 10"

Laundry Room:

182 sq/ft width 12' 1" x depth 15' 1"

Living Room:

182 sq/ft width 12' 1" x depth 15' 1"

Master Bathroom:

243 sq/ft width 19' 6" x depth 12' 6"

Master Bedroom:

247 sq/ft width 16' 9" x depth 14' 9"

Master Closet:

105 sq/ft width 10' 4" x depth 10' 3"

Mud Room:

58 sq/ft width 6' 9" x depth 8' 8"

Pantry:

23 sq/ft width 5' 1" x depth 4' 7"

Recreation Room:

408 sq/ft width 17' x depth 24'

Slab Foundation:

712 sq/ft width 31' 5" x depth 22' 8"

Toilet Closet:

19 sq/ft width 6' 10" x depth 2' 10"

Wet Bar:

18 sq/ft width 2' 1" x depth 9'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
$909.00
5 printed plan sets mailed to you.
8 Copy Set :
$990.00
8 printed plan sets mailed to you.
Reproducible Set :
$1165.50
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
$1854.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$859.50
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Framing

Wood 2x6:
$0.00
Wood 2x6

Additional Options

Additional Construction Sets :
54.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
17.10
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Mirror Reversed Sets :
54.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse :
157.50
Choose this option to reverse your plans and to have the text and dimensions readable.

*Alternate Foundations may take time to prepare.
