PLAN #928-70

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

Live your dream life in this magical design from Visbeen Associates. With almost 4,000 square feet of living space, the floor plan leads from a spacious foyer to the comfortable living room and conveniently located dining room. A first-floor master suite is isolated in a rear corner of the plan, separated from the main living areas by a walk-in closet and luxurious bath. Upstairs, three bedrooms are arranged around a casual lounge. The optional lower level provides space for hobbies and entertainment.

Floor Plans

Floor Plan - Other Floor Plan
Traditional Floor Plan - Other Floor Plan Plan #928-70

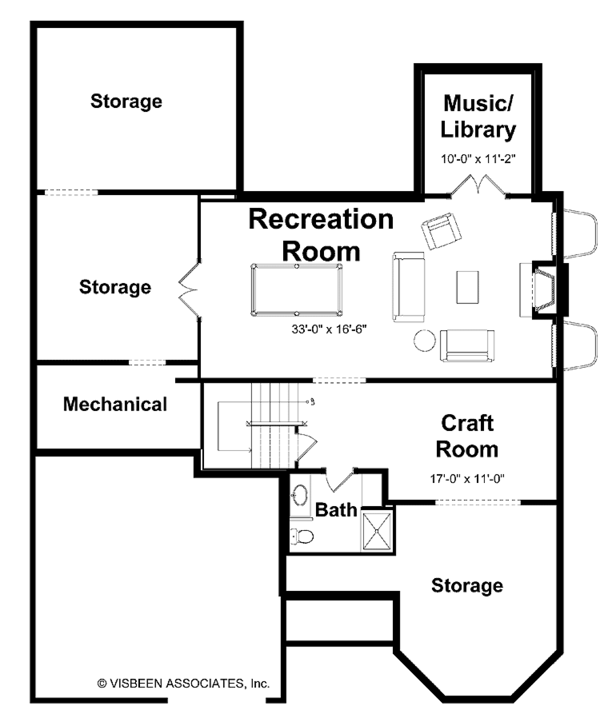

Floor Plan - Lower Floor Plan
Traditional Floor Plan - Lower Floor Plan Plan #928-70

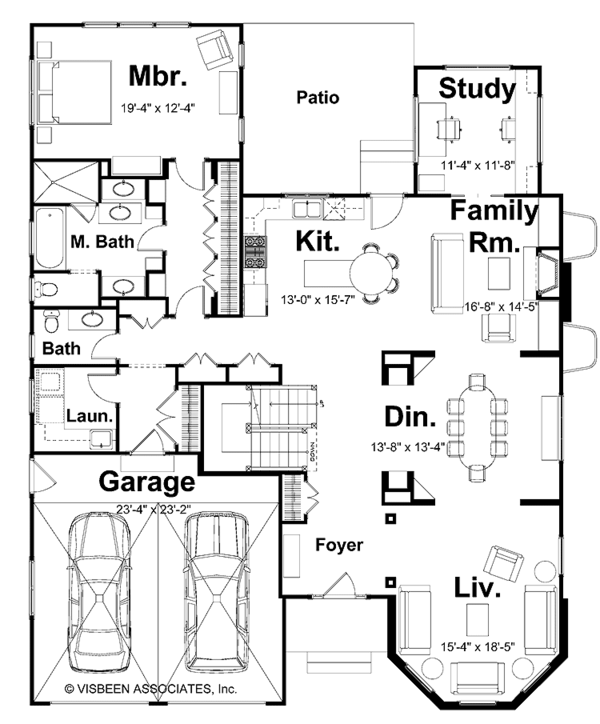

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #928-70

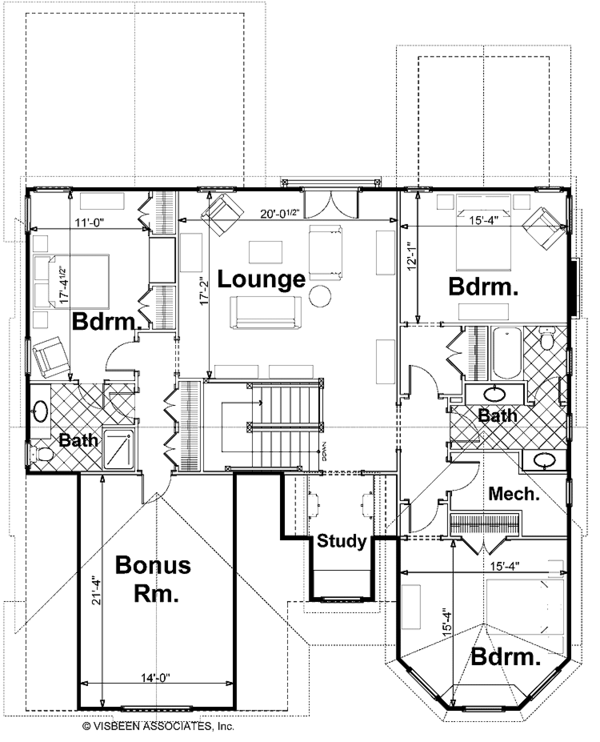

Floor Plan - Upper Floor Plan
Traditional Floor Plan - Upper Floor Plan Plan #928-70

Full Specs & Features

Depth : 64'
Height : 30' 6"
Width : 50'
Basement Unfinished: 849 sq/ft height 9'
Bonus: 314 sq/ft
First Floor: 2202 sq/ft height 10'
Second Floor: 1680 sq/ft height 9'
Bedroom Features
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Additional Room Features
Mud Room
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Unfinished Future Space
Open Floor Plan
Vaulted / Cathedral Ceilings
Outdoor Spaces
Covered Rear Porch
Loft Balcony

Bedroom 2:

190 sq/ft width 11' x depth 17' 4"

Bedroom 3:

185 sq/ft width 15' 4" x depth 12' 1"

Bedroom 4:

235 sq/ft width 15' 4" x depth 15' 4"

Dining Room:

182 sq/ft width 13' 8" x depth 13' 4"

Family Room:

240 sq/ft width 16' 8" x depth 14' 5"


540 sq/ft width 23' 4" x depth 23' 2"


202 sq/ft width 13' x depth 15' 7"

Living Room:

282 sq/ft width 15' 4" x depth 18' 5"

Master Bedroom:

238 sq/ft width 19' 4" x depth 12' 4"

Music Room:

111 sq/ft width 10' x depth 11' 2"

Recreation Room:

544 sq/ft width 33' x depth 16' 6"


132 sq/ft width 11' 4" x depth 11' 8"

What's Included In This Plan Set

Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in some areas of Michigan requires special permission from the Architect.

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

» See important information before purchasing.
Plan Set
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Daylight Basement:
Ideal for sloping lot, lower level of home partially underground.
Wood 2x4:
Wood 2x4
Additional Options
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
