PLAN #48-250
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build ReportOr order by phone: 1-800-447-0027
Got Questions?
PLAN #48-250
Key Specs
3959
sq ft
4
Beds
4.5
Baths
2
Floors
3
Garages
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Floor Plans
Floor Plan - Main Floor Plan

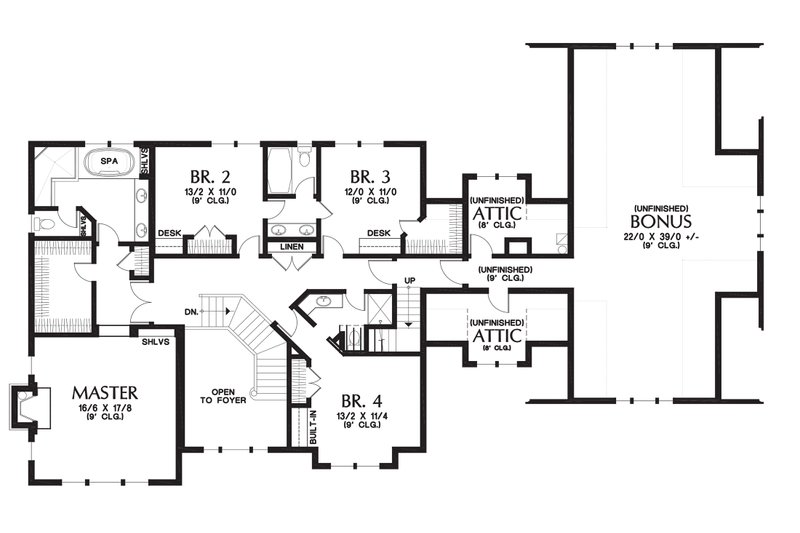

Floor Plan - Upper Floor Plan
Full Specs & Features
Dimension
Depth : 59'
Height : 37'
Width : 108'
Height : 37'
Width : 108'
Area
Bonus: 950 sq/ft
First Floor: 2223 sq/ft
Second Floor: 1713 sq/ft
First Floor: 2223 sq/ft
Second Floor: 1713 sq/ft
Ceiling
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Upper Ceiling Ft : 9'
Exterior Wall Framing
Framing : 2"x6"
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Jack Jill Bath
Mud Room
Bonus Play Flex Room
Den Office Study Computer
Great Room Living Room
Storage Area
Unfinished Future Space
Mud Room
Bonus Play Flex Room
Den Office Study Computer
Great Room Living Room
Storage Area
Unfinished Future Space
Garage Features
Oversized Garage
Side Entry Garage
Side Entry Garage
Entryway
Friend S Entry
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Loft Balcony
Wrap Around Porch
Covered Rear Porch
Loft Balcony
Wrap Around Porch
Rooms
Bedroom 2:
width 13' 2" x depth 11'
Bedroom 3:
width 12' x depth 11'
Bedroom 4:
width 13' 2" x depth 11' 2"
Bonus:
width 22' x depth 39'
Dining room:
width 12' 8" x depth 20' 2"
Excercise:
width 11' x depth 13' 10"
Garage:
width 25' x depth 41'
Great Room:
width 17' x depth 22'
Kitchen:
width 16' 6" x depth 16'
Master bedroom:
width 16' 6" x depth 17' 8"
Office:
width 15' 6" x depth 13' 2"
Right porch:
width 21' x depth 20'
What's Included In This Plan Set
- Exterior Elevations
- In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
-
Foundation Plan
- The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations. If you choose the optional Slab foundation, the slab foundation will not be reflected in the plan sections.
-
Floor Plan(s)
- Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
-
Building Sections
- Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
-
Roof Plan
- Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
-
Notes and Details Page(s)
- Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.
Plan Set
