PLAN 25-4979
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
A farmhouse inspired triplex that is 36 feet wide by 40 feet deep. Each unit has three bedrooms, including a master bedroom with a walk-in closet, and a full bathroom. The kitchen with an island, dining room and living room are all open-concept. There is also a laundry corner in the area. The livable surface is 1384 sq. ft. for both the ground floor and the second floor. The livable area of the basement is 1193 sq. ft.
Floor Plans
Floor Plan - Lower Floor
Floor Plan - Main Floor

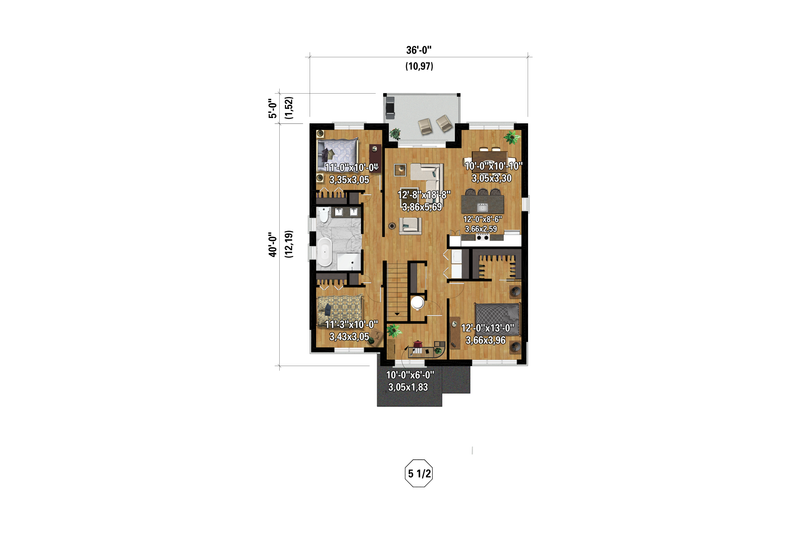

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 40' 3"
Height : 39' 3"
Width : 36'
Area
Lower Floor : 1193 sq/ft
Main Floor : 1384 sq/ft
Upper Floor : 1384 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Lower Ceiling : 8'
Main Ceiling : 9'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 6/12
Secondary Pitch : 12/12
What's Included In This Plan Set
Please note that this plan is not available in PDF or CAD format for building in Quebec or Ontario.
» See important
information before purchasing.
-
Exterior elevations:
- Foundations plan: Different isometric views with dimensions as well as relevant information to build the foundations.
- Floor plans: A drawing of each floor of the house showing the size of the rooms and the location of windows and staircases.
- Cross-section View: Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details.
-
Four detailed exterior elevations showing the final appearance of each side of the house.
Questions? Call 1-800-447-0027
Plan Set
PDF Set:
$1147.50
$1147.50
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
$1185.75
$1185.75
5 printed plan sets mailed to you.
5 Copy and PDF Set:
$1309.00
$1309.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation
Basement:
$0.00
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Framing
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Additional Options
Material List:
$127.50
$127.50
A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
Mirror Reversed Sets:
$127.50
$127.50
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
