PLAN #1017-3

Key Specs


4000
sq ft

3
Beds

4
Baths

1
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

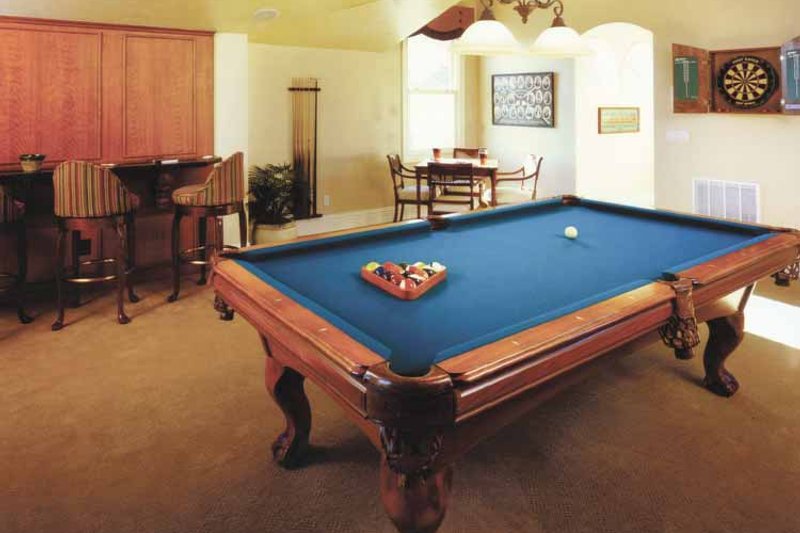

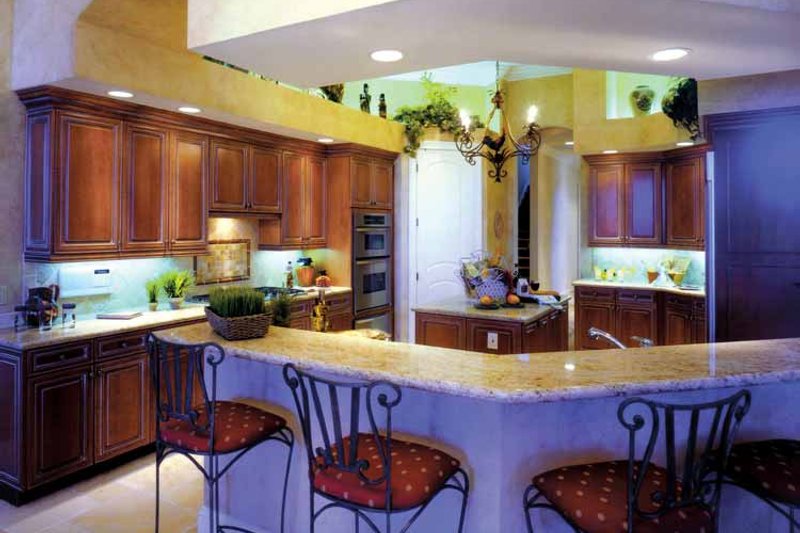

This stunning home home won the Parade of Homes award for Best Architectural Design. It features a unique balance of coziness and elegance. The floor plan flows flawlessly without compromising privacy or style. Natural views and outdoor living spaces enhance the open, spacious feeling inside this home. The overall layout and flow of the house and coffered ceilings that maximize daylight while reflecting grandeur and richness are two of the many distiguishing qualities. A pass through wet bar that may also be used as a butler's pantry. The loft above the garage is a fun and logical use of space for a second floor game room or media room. The gourmet kitchen is superior in design and convenience. The dropped coffered ceiling in the kitchen provides intimate recessed lighting and a wonderful place to display art and kitchen decor. Note: First story walls are constructed of concrete block; upper stories are 2 x 4 wood-framed.

Floor Plans

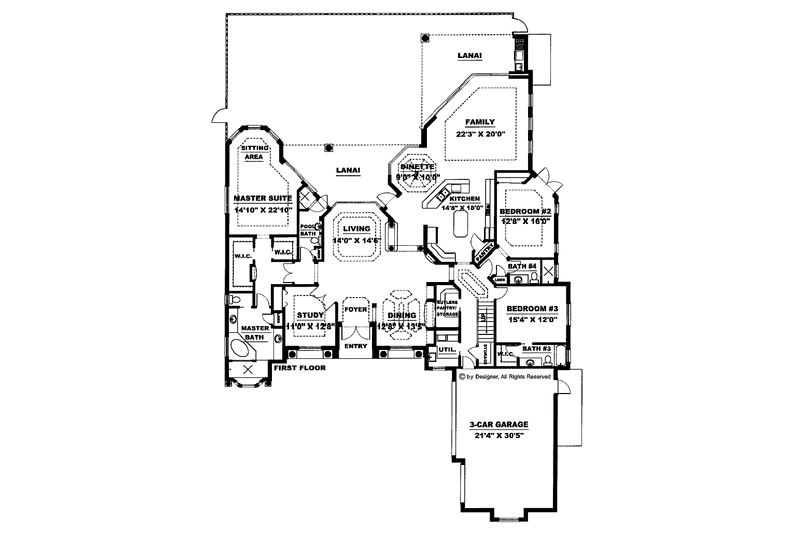

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #1017-3

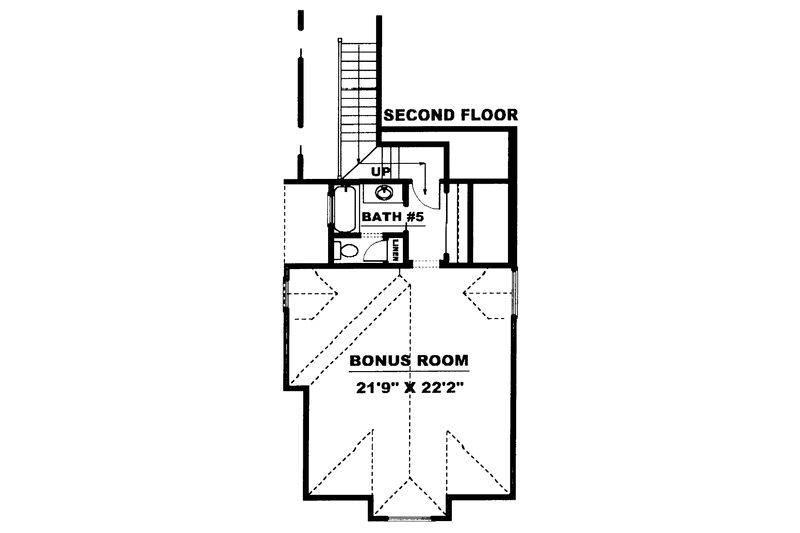

Floor Plan - Other Floor Plan
Mediterranean Floor Plan - Other Floor Plan Plan #1017-3

Full Specs & Features


Dimension
Depth : 104' 10"
Height : 26'
Width : 74' 6"
Area
Bonus: 630 sq/ft
First Floor: 3370 sq/ft
Bedroom Features
Guest Suite
Main Floor Master Bedroom
Formal Living Room / Parlor
Kitchen Features
Butler's Pantry
Kitchen Island
Breakfast Nook
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Master Sitting Area
Open Floor Plan
Garage Features
Side Entry Garage
Outdoor Spaces
Grill Deck Sundeck
Outdoor Kitchen Grill
Deck
Rooms

3rd BR Closet:

26 sq/ft width 5' x depth 5' 4"

Bathroom 2:

65 sq/ft width 13' x depth 5'

Bathroom 3:

63 sq/ft width 11' 10" x depth 5' 4"

Bathroom 5:

65 sq/ft width 7' 8" x depth 8' 6"

Bedroom 2:

202 sq/ft width 12' 8" x depth 16'

Bedroom 2 Closet:

16 sq/ft width 7' x depth 2' 4"

Bedroom 3:

183 sq/ft width 15' 4" x depth 12'

Bedroom 3 Closet:

16 sq/ft width 7' x depth 2' 4"

Bedroom 5 Closet:

18 sq/ft width 2' 4" x depth 8'

Bonus Room - Finished:

510 sq/ft width 22' 8" x depth 22' 6"

Breakfast Room:

90 sq/ft width 9' x depth 10'

Deck:

977 sq/ft width 41' x depth 23' 10"

Dining Room:

169 sq/ft width 12' 8" x depth 13' 5"

Foyer:

63 sq/ft width 7' 4" x depth 8' 8"

Garage:

648 sq/ft width 21' 4" x depth 30' 5"

Gathering Room:

445 sq/ft width 22' 3" x depth 20'

Kitchen:

264 sq/ft width 14' 8" x depth 18'

Living Room:

203 sq/ft width 14' x depth 14' 6"

Master Bathroom:

145 sq/ft width 12' 10" x depth 11' 4"

Master Bedroom:

338 sq/ft width 14' 10" x depth 22' 10"

Master Closet:

29 sq/ft width 5' 4" x depth 5' 6"

Master Closet Two:

68 sq/ft width 5' 8" x depth 12' 2"

Study:

139 sq/ft width 11' x depth 12' 8"

Utility Room:

61 sq/ft width 7' x depth 8' 10"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

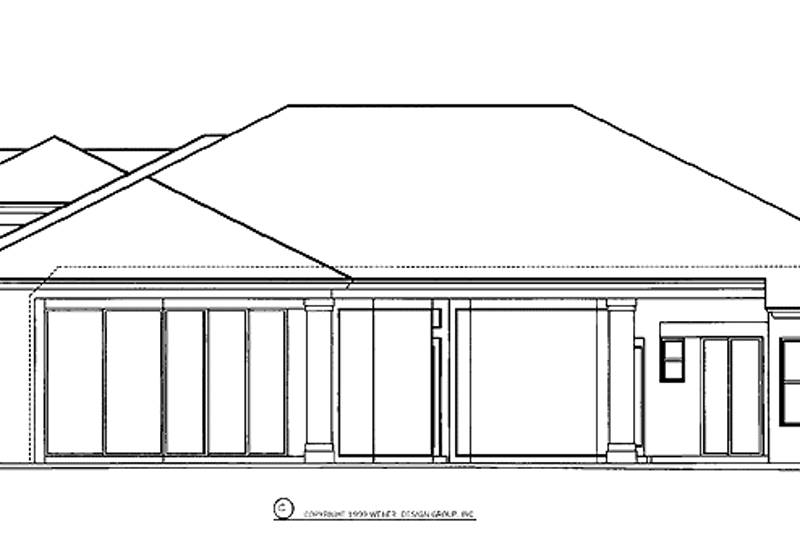

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
CAD Set :
$1700.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set :
$1700.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1700.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Foundation
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Additional Construction Sets :
90.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
75.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.
